Summary of Contents for Antrax SwitchBox Plus

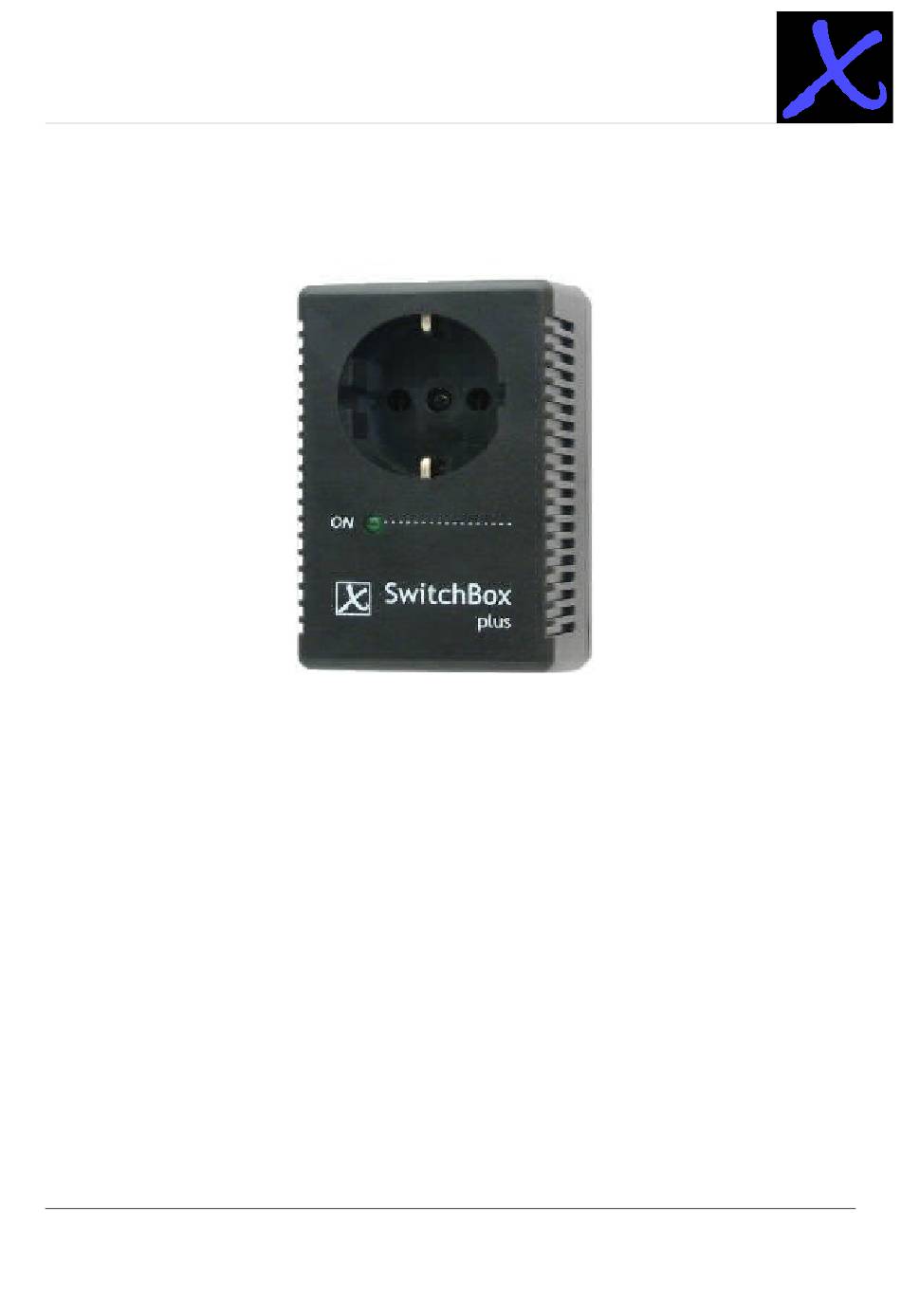

- Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de SwitchBox-plus Manual 15.07.2005 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...

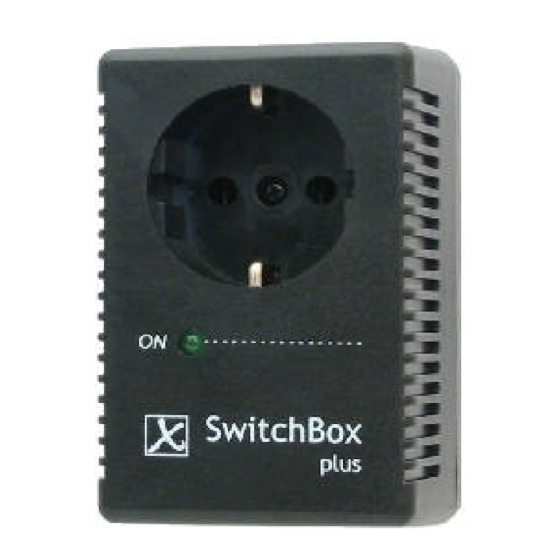

- Page 2 Datentechnik GmbH info@antrax.de - www.antrax.de General The SwitchBox-plus allows the ON/OFF switching of a 230V electronic device via a low voltage switch. The circuit of this switch is electrically isolated from the 230V mains with safe operator protection. Before first use of the SwitchBox-plus, please read this instruction manual or the help file (found on our homepage).
- Page 3 Datentechnik GmbH info@antrax.de - www.antrax.de electronic devices tolerate rapid switching sequences. Package Content SwitchBox-plus 5.08 mm – connector (2-pole) this manual Installation of the SwitchBox-plus Connect a low power switch (see physical characteristics) with the supplied 5.08 mm ...
- Page 4 Datentechnik GmbH info@antrax.de - www.antrax.de Physical Characteristics General: • Protection class: IP20, in dry rooms only • Connector system: safety plug (CEE 714) • Current switching state is indicated by green LED • Load and control circuit have a safe electrical isolation (operator protection) •...
