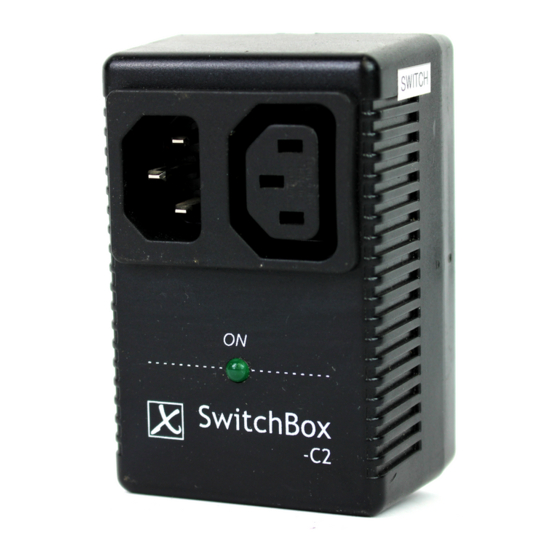

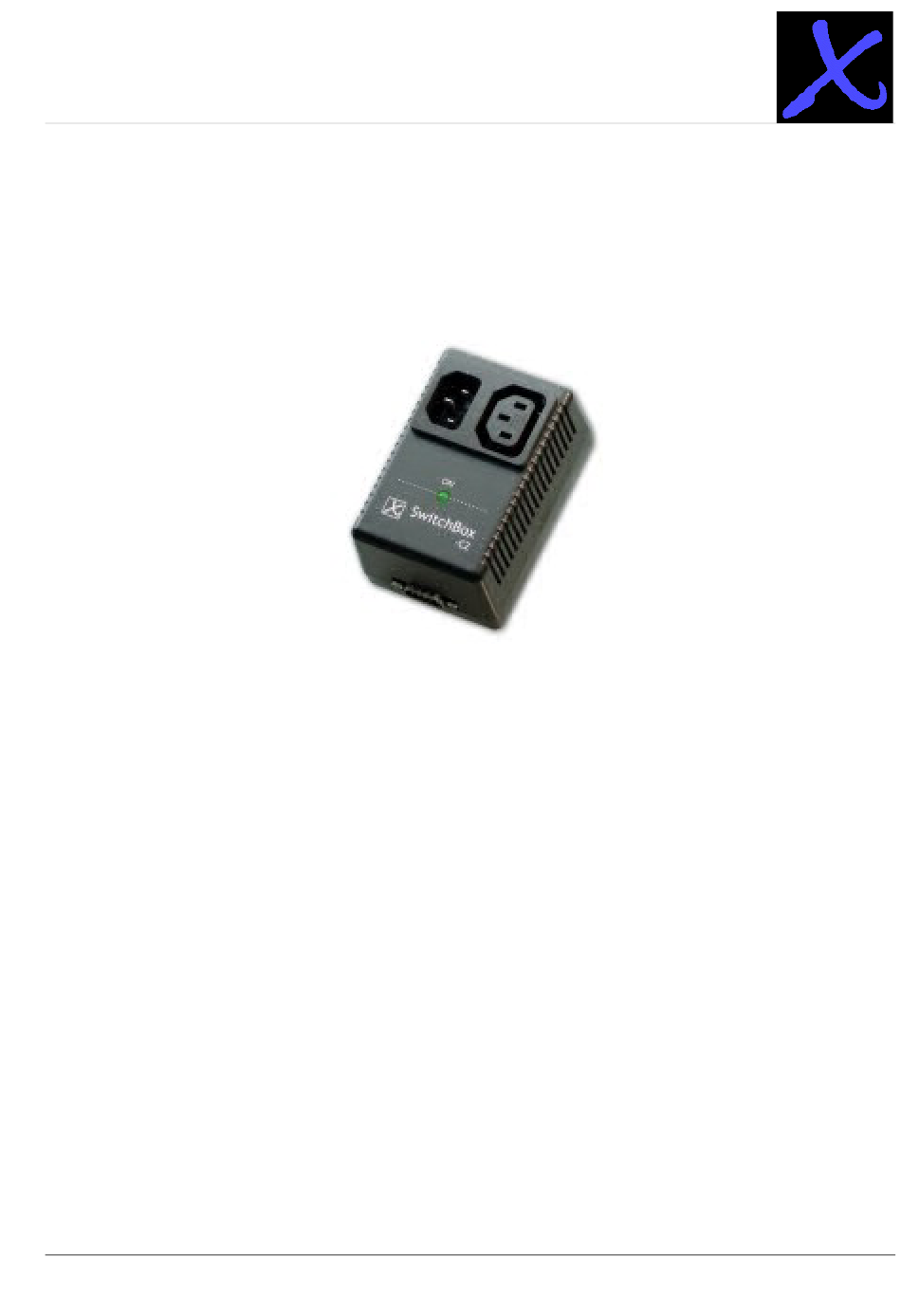

- Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de SwitchBox-C2 • relay version • parallel interface (LPT) • serial interface (COM) • external control voltage via laboratory plug Manual 02.06.2005 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
- Page 2 - www.antrax.de General The SwitchBox-C2 allows the input and switching off a electronic device via the parallel or serial port on a PC or any other external voltage (control voltage 3VDC ... 30VDC). Timer-controlled switching operations by the parallel and serial interfaces via the free of charge SwitchBox-C2 service program (download on the antrax homepage).
- Page 3 The decisive switching state of the load is only achieved by starting the SwitchBox-C2 service program. The interface used must remain reserved for the SwitchBox-C2 and can not be addressed • by other programs.
- Page 4 - www.antrax.de Installation of the SwitchBox-C2 via PC/computer: Turn off the PC/computer. Connect the supplied cable to the SwitchBox-C2 and the serial or parallel port of the PC/Computer. Insert the SwitchBox-C2 into a 230V outlet. Connect the control device to the SwitchBox-C2.
- Page 5 Datentechnik GmbH info@antrax.de - www.antrax.de Physical Characteristics General: • Protection class: IP20, in dry rooms only • Connector system: safety plug (IEC/CEE) • Current switching state is indicated by green/red LED • Load and control circuit have a safe electronic isolation over an optotriac •...
