Summary of Contents for CyClone LES100-48

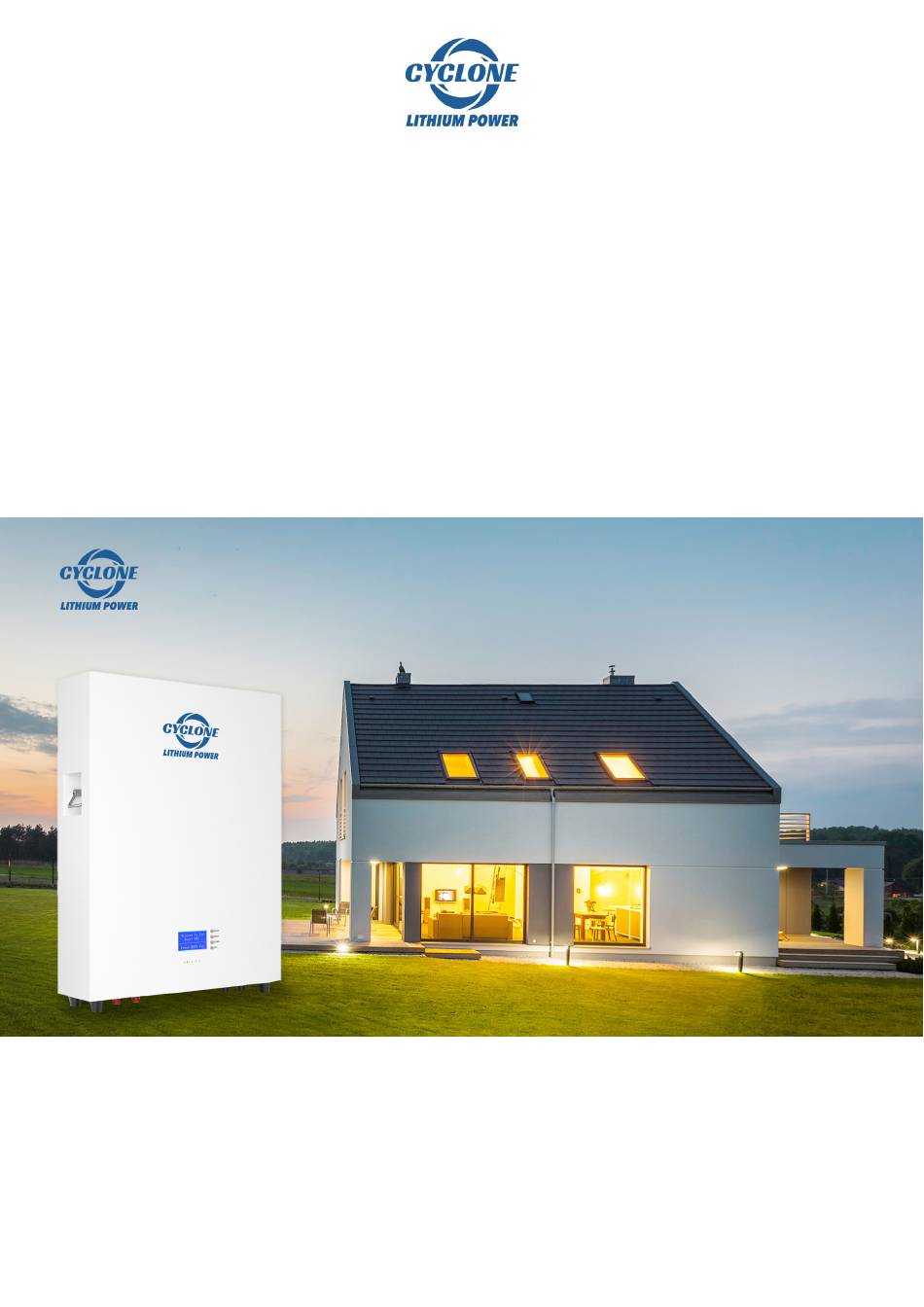

- Page 1 LES-Powerwall Battery Pack User Manual Y and R Solar ( pty) Ltd...
- Page 2 Please comply with warnings operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.
-
Page 3: Table Of Contents
1.SAFETY PRECAUTION..............................3 1.1 W ..............................3 SING BATTERY 1.2 W ................................4 HILE HARGING 1.3 W ..........................4 ISCHARGING THE ATTERY 2.PARAMETERS OF BATTERY............................5 2.1 B ..............................5 ASIC LOCK IAGRAM 2.2 B ..............................6 ATTERY PECIFICATIONS 2.3 P ..................................8 ANEL 2.4 LED I ................................9 NDICATORS 2.5 B... -
Page 4: Safety Precaution
1.Safety Precaution 1.1 When Using battery Danger of High Voltage： The high voltage power supply offer the equipment power, wet object contact high voltage power supply directly or indirectly , can cause fatal danger. Using a special tool : Working in high voltage and ac power, be sure to use a special tool instead of individual tools. Static‐free：... -
Page 5: While Charging
1.2 While Charging CAUTION The temperature range over which the battery can be charged is 0°C to 45°C. Charging the battery at temperatures outside of this range may cause the battery to become hot or to break. Charging the battery outside of this temperature range may also harm the performance of the battery or reduce the battery’s life expectancy. -
Page 6: Parameters Of Battery
2.Parameters of Battery 2.1 Basic Block Diagram • There are Battery cells and BMS board inside, before connecting the terminal, please read the diagram, and make sure the output is no short or other abnormal connection. Fig1 Battery Block Diagram... -
Page 7: Battery Specifications
2.2 Battery Specifications Battery Specifications LES100-48 LES200-48 Model NO. Nominal Parameters Voltage Capacity 100Ah 200Ah Energy 4.8KWh 9.6KWh 500*550*162 mm Dimensions(L*W*H) 480*650*275mm Weight 48Kg 89Kg Basic Parameters Design life time(25℃) 20 years Life cycles(80% DOD,25℃） 6000 Cycles 5 moths @ 25℃;3 moths @ 35℃;1 moths @ Storage tiome/temperature 45℃... - Page 8 500*550*162 mm 480*650*275mm Dimensions(L*W*H) Weight 50Kg 92Kg Basic Parameters Design life time(25℃) 20 years Life cycles(80% DOD,25℃） 6000 Cycles 5 moths @ 25℃;3 moths @ 35℃;1 moths @ Storage tiome/temperature 45℃ Operation temperature -20℃ to 60℃ @ 60±25 Relative Humidity Storage temperature 0℃...
-
Page 9: Panel View
2.3 Panel View Description Functional Description Display Screen Indicator LED Battery run/alarm, status Battery + Positive terminal Switch Active/start battery Negative terminal Battery - Safety Ground bolt Output ON/OFF Dial for communication Dipswitch 2 Road Dry Contacts RS485 Communication Port RS485 Communication Interface CAN Communication Port CAN Communication Interface... -
Page 10: Led Indicators
2.4 LED Indicators LED Indicators: There are 6 LEDs on upper panel to show the battery working status: SOC Indication LED Pack Normal/Alar Remark Status m/Protection ● ● ● ● ● ● Power Sleep All OFF Normal Flash 1 Standby Standby Indication by SOC Alarm... -
Page 11: Buzzer Operation (Optional)
Flash Flash1 0.25Sec 3.75Sec Flash2 0.5Sec 0.5Sec Flash3 0.5Sec 1.5Sec 2.5 Buzzer Operation (Optional) Model Description and Status Fault Buzzing 0.25S per 1Sec Protection Buzzing 0.25S per 2Sec (expect for over-charge protection) Alarm Buzzing 0.25S per 3Sec (expect for over-charge alarm) NOTE: Buzzer function can be set by monitor software, the default is off. -
Page 12: Display Function Instruction
2.6 Display function instruction 2.6.1 Display rendering 2.6.2 Functional Specifications 2.6.2.1 Main menu page Electricity / dormancy activated, will show the welcome screen, press the MENU button to enter the main menu page. As shown in the figure below：... - Page 13 2.6.2.2 Battery parameters collection page When the cursor“》”is point to “Analog Info”，press ENTER key will enter into the page of “Analog Info”，As shown in the figure below： 2.6.2.3 Battery status page When the cursor“》”is point to “BMS Status”，press ENTER key will enter into the page of “BMS Status”，As shown in the figure below：...
- Page 14 2.6.2.4 Battery Parameters Setting page When the cursor“》”is point to “Para Setting”，press ENTER key will enter into the page of “Para Setting”，As shown in the figure below： 2.6.2.5 Battery System Setting page When the cursor“》”is point to “Sys setting”，press ENTER key will enter into the page of “Sys setting”，As shown in the figure below：...
-
Page 15: Connectors
2.7 Connectors Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator. RS485: Active communication portal between battery and inverter. RS232: To get dynamic monitoring data of the battery from upper computer. RS485/CAN: To get dynamic monitoring data of the battery from inverter. -
Page 16: Tools
3.2 Tools The following tools are required to install the battery pack: • Wire cutter • Crimping Modular Plier • Screw Driver NOTE:Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. -
Page 17: Installation Location
Mounting frame screw M8*70mm Power cable(1.5M) 6AWG Wire-M8 125A/1000V Can monitor battery through Option RS232 Communication Cable upper software Battery-Inverter Communication Battery communicated with Option Cable inverter 3.4.2 Installation Location Make sure that the installation location meets the following conditions: •... -
Page 18: Operating Intructions
4. Operating intructions 4.1 Software Installation For optional computer system protection, install battery monitoring software to fully configure battery shutdown and other setting value. 4.2 Pre-operation step Circuit breaker of battery circuit is set to OFF, connect it to switch power supply, and output voltage of switch power supply is set to 52.5-54V/56-57.6V, current set to 0.2C;... -
Page 19: Communication Function
4.3 Communication Function 4.3.1 Communication port definition RS485 Terminal Port Definition Pin1，8 RS485_B Pin2，7 RS485_A Pin 6 Pin4，5 RS485 Communication Port Definition CAN Terminal Port Definition Pin4 CAN H Pin5 CAN L Pin6 RS485 Pin1,2,7,8 CAN Communication Port Definition RS232 Terminal Port Definition Pin3 BMS Transmit, PC Receive... -
Page 20: Battery Communicate With Pc/Software
4.3.2 Battery communicate with PC/Software 4.3.2.1 Single battery communicate with PC/software 4.3.2.2 Batteries parallel communicate with PC/software While battery in parallel communication , dial-up addresses of battery are different. Dial Switch Remark Address bit1 bit2 bit3 bit4 Battery 1 Battery 2 Battery 3 Battery 4... -
Page 21: Batteries Communicated With Inverter
Battery 5 …… …… …… …… …… …… Battery 14 Battery 15 The range of batteries’ address bit1-bit4 is 1-15. Note: For example:15 sets batteries in parallel communicated with PC/software as below: 4.3.3 Batteries communicated with inverter 4.3.3.1 Single battery communicate with inverter... - Page 22 4.3.3.2 Batteries parallel communicate with inverter While battery in parallel communication , dial-up addresses of battery are different. Dial Switch Remark Address bit1 bit2 bit3 bit4 Battery 1 Battery 2 Battery 3 Battery 4 Battery 5 …… …… …… …… ……...
-
Page 23: Troubleshooting
Battery 14 Battery 15 The range of address bit1-bit4 is 1-15. Note: For example:15 sets batteries in parallel communicated with inverter as below: 5. Troubleshooting If the battery does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy... -
Page 24: Storage And Maintenance
6. Storage and Maintenance 6.1. Storage Before storing, charge the battery at least 7 hours. Store the Battery covered and upright in a cool, dry location. Recommend long-term storage temperature is 15°C -25°C . During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration... -
Page 25: Product Responsibilities And Consulting
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It may be toxic. Please replace the fuse only with the same type and amperage in order to avoid fire hazards. Do not disassemble the battery system. 7 Product Responsibilities and Consulting 1) We will not be liable for the accidents resulting from operation breaking this specification and user manual. - Page 26 Warranty Card Mr/Mrs./Ms/Miss:________________________________________________ Telephone Number:______________________________________________ Address:_______________________________________________________ ______________________________________________________________ E-mail:________________________________________________________ Purchase Date:___________/____________/___________ (DD/MM/YYY) Dealer's Name:__________________________________________________ Dealer's' Telephone Number:_______________________________________ Dealer's Address:________________________________________________ Serial Number:__________________________________________________...
- Page 27 MSDS UN38. 3 OHSAS ISO9001 ISO14001 OHSAS18001 www.solarwaysuppliers.co.za...
