Connections
This product features a pre-installed SC connector that is not removable.
1 Connect the fiber optic cable to the pre-installed SC connector.
2 Install the other end of the fiber optic cable into an
appropriate port in your fiber network.
Maximum length and fiber cable specification depend on the model.
RJ45
Connect the UTP port of the media converter to powered RJ45 device;
e.g., to a network camera. Cat5e or better cabling is recommended.
Power
Plug the power adapter into the input jack on the media converter.
Then connect it to a regular power outlet. Only use the included
power adapter or one with matching specifications.

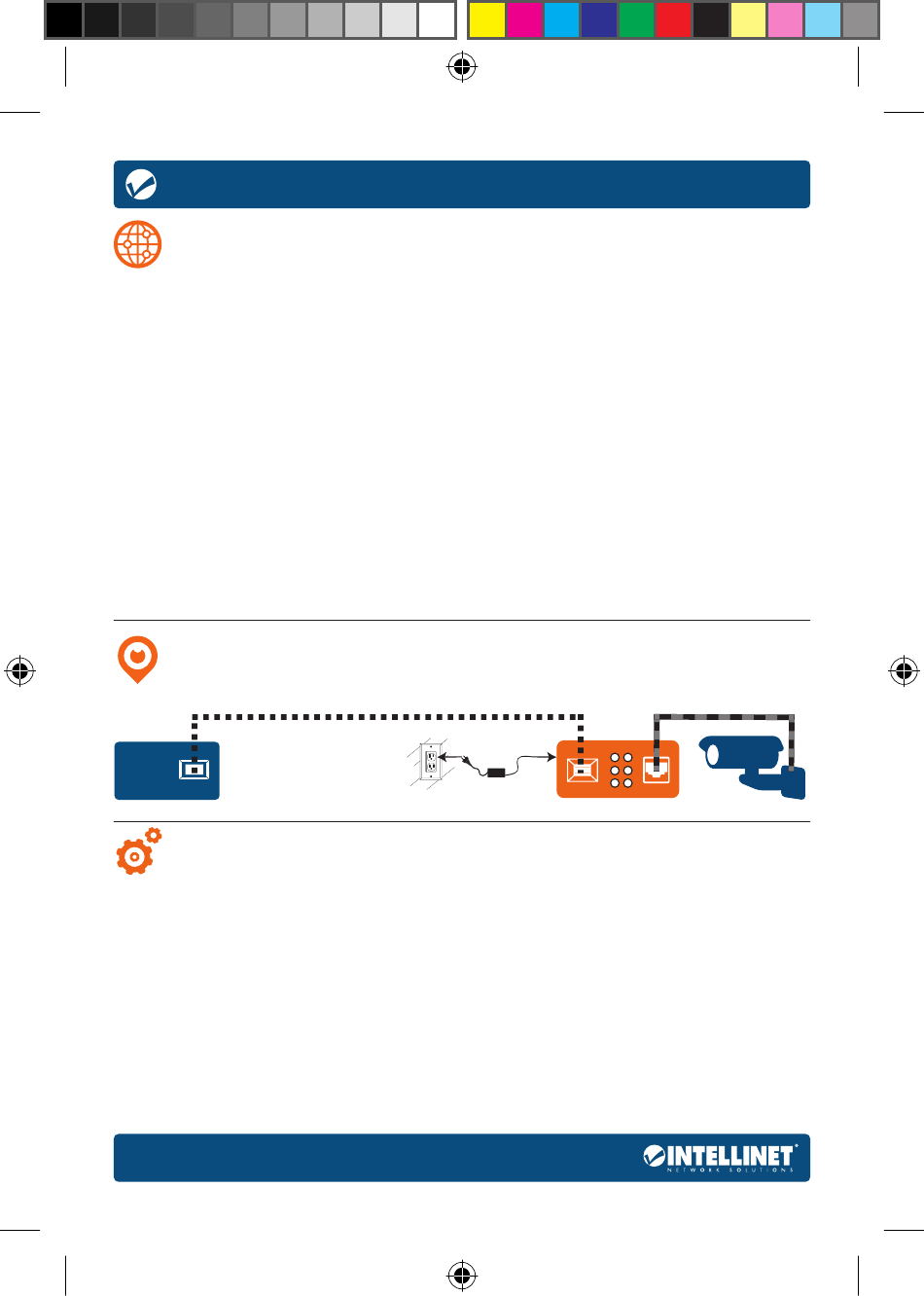

Setup
Gigabit
Fiber
Network
TX RX
Features
The DIP switches on the Intellinet Gigabit PoE+ Media Converter present
helpful options for easily detecting link faults when they occur.
Enabling Link Fault Pass-through (LFP) by switching the LFP DIP switch to "ON"
forces the devices on a link to acknowledge that they are online before data can
be transmitted. When one of the devices doesn't respond, data cannot be sent.
If a copper connection breaks when the LFP function is enabled, the converter's
Link Loss Carry Forward (LLCF) feature stops data transmission and generates
a trap to a management station. Likewise, if a fiber connection breaks when
2 English
Gb Fiber (20 km/12.4 mi.)
47 V – 57 V
Instructions
Gb RJ45 (100 m/300 ft.)
TX RX
