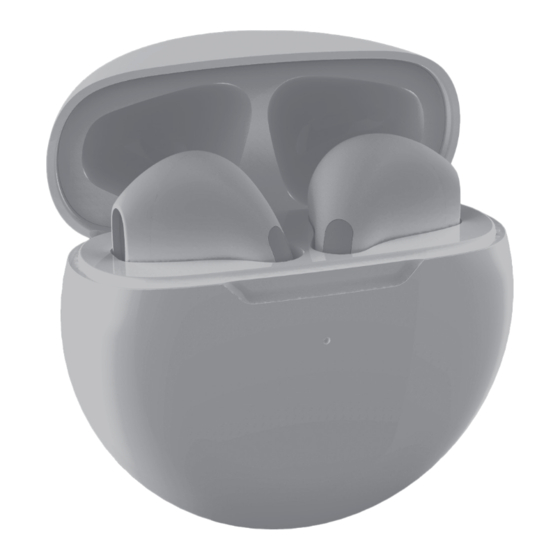

Lexibook HPBT05 Series - Mini Stereo Wireless Earbuds Manual

UNPACKING THE DEVICE

When unpacking, make sure the following parts are included:

1 x charging case
1 x Earphones (right and left)
1 x USB Type-C charging cable

All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded

LOCATION OF CONTROLS

1. Left earphone touch stick: On / Off, Next song
2. Right earphone touch stick: On / Off, Back to the beginning of the current song, previous song.
3. Bluetooth^® Search Activation Button
4. USB type C port

POWER SUPPLY

The Bluetooth^® earphones operates with the USB type C charging cable (included) or with a USB type adaptor (not included) 5.0V 1.0A.

To recharge the charging case:

1. Make sure to turn off Bluetooth^® before charging the headset case.
2. Insert the small end of the USB Type-C cable (included) into the USB Type-C charging port.
3. Connect the other end of the cable to your computer's USB port while it is running or to a USB power adapter plugged into a wall outlet.
4. The LED indicator flashes red when the earphones are charging, then turns off when charging is complete.

To recharge your earphones:

1. Make sure the battery in your charging case is charged.
2. Slide your earphones into the charging case.

Note: After approximately 5 minutes of inactivity, headset off automatically.

Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, switch it off and then on again, or unplug the USB cable.

• Risk of explosion if battery is incorrectly replaced. Please only replace it with a same or an equivalent battery. (For Service instructions only; battery is not intended to be replaced by the user).
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep a minimum distance around the device for sufficient ventilation;
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
• No naked flame sources, such as lighted candles, should be placed on the apparatus;
• The use of apparatus in tropical and/or moderate climates.
• Batteries should be disposed properly. Take them to the collection container in order to protect the environment;

Too high volume can damage your hearing. For this reason, lease turn the volume down.

WIRELESS FUNCTION (BLUETOOTH^®)

1. Long press the Bluetooth button (3) on the earphones. The LED indicator will flash.
2. Activate the Bluetooth^® function on your personal device (smartphone, MP3 player, etc.) and make sure it is in discoverable mode.
3. Confirm pairing or select the Bluetooth^® name "(HPBT05)" to connect your player to the earphones.
4. If pairing is successful, the Bluetooth^® light will stop flashing. You can play an audio or a video file.
5. To stop the connection with the earphones, disconnect the Bluetooth on your audio player.

Notes:

• When turned on, the earphones automatically search for a device that has previously synchronized with.
• If your Bluetooth^® device requires a password, the default password is 0000.

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook^® is under license. Other trademarks and trade names are those of their respective owners.
© 2020 Bluetooth SIG, Inc.

SETTINGS

Turn off your earphones:
Press and hold your earphones arms to turn them off. Hold the pressure until a voice tells you that your headphones are off.

Control your music from your earphones:
To play the next song, touch the right arm (2) twice. To go back to the beginning of the current song, touch the left earphone arm (1) twice. To play the previous song, touch the left arm (1) twice again.

Pick up your phone:
Your earphones allow you to pick up your phone. To answer your calls directly from your earphones, touch one of the arms (1 or 2).

SPECIFICATIONS

• Bluetooth^® 5.1 Technology
• Bluetooth^® frequency range: 2402 - 2480 MHz
• Power transmitted: 8.5dBm
• Charging time: around 1.5 hours
• Playing time: up to 4 hours
• Effective distance: 10m (straight line without obstacle)
• Case Input: 5.0V 1.0A
• Earbuds Input: 5.0V 30mA
• Case output: 5.0V 200mA
• Case battery capacity: 3.7V 180mAh, Built-in rechargeable Li-ion Polymer
• Earbuds battery capacity: 3.7V 25mAh each earbud, Built-in rechargeable Li-ion Polymer

SIMPLIFIED EU DECLARATION OF CONFORMITY

Lexibook^® S.A.
6 avenue des Andes
Bâtiment 11
91940 Les Ulis – France

Lexibook UK
PO Box 59
SOUTH MOLTON
EX36 9AU, UK

Kind of product: Bluetooth^® Stereo earphones
Type designation: HPBT05 series

Hereby, Lexibook Limited declares that the radio equipment type HPBT05series is in compliance with Directive 2014/53/EU. and Radio Equipment Regulations 2017

The full text of the EU declaration of conformity is available at the following internet address: https://www.lexibook.com/doc/hpbt05/hpbt05_1.pdf

MAINTENANCE AND WARRANTY

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® Stereo earphones once every 3 months in order to maintain the battery life.

This product is covered by our 2 years warranty program, except for the integrated battery which is covered by a 6-month warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

This product is not a toy

Reference: HPBT05series
Designed and developed in Europe – Made in China
© Lexibook^®

United Kingdom & Ireland
For after-sales service, please contact us at savcomfr@lexibook.com

Lexibook UK
PO Box 59
SOUTH MOLTON
EX36 9AU, UK

www.lexibook.com

Environmental Protection: Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. All batteries should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. The correct disposal of your old batteries will help to prevent potential negative consequences for the environment, animal and human health. We strongly advise you to take your product to an official collection point or service center to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. For more detailed information about disposal of your old batteries, please contact your city office or waste disposal service centre.
