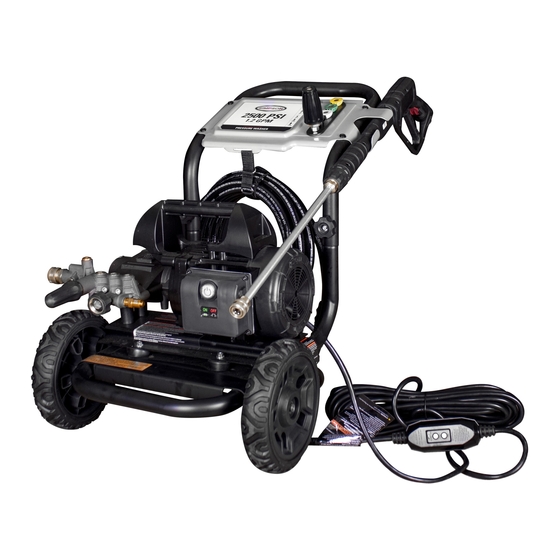

PRESSURE WASHER
USE AND CARE MANUAL
READ THIS MANUAL CAREFULLY BEFORE OPERATION
Failure to follow the instructions and safety precautions in this manual can result
in property damage, serious injury and/or death.
If your pressure washer is not working or if there are parts missing or broken, please DO NOT
RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling
1-877-362-4271 or emailing cservice@fna-group.com
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTE: Photographs and line drawings used in this manual are for reference only and may not
represent your specific model.
Part Number 7120009/ ENGLISH
MODEL 61297
REV A - 1/2023
Advertisement
Table of Contents
Related Manuals for Simpson 61297
Summary of Contents for Simpson 61297
- Page 1 PRESSURE WASHER USE AND CARE MANUAL MODEL 61297 READ THIS MANUAL CAREFULLY BEFORE OPERATION Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death. If your pressure washer is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE.
- Page 2 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANK Page II...
- Page 3 SAVE THIS MANUAL FOR FUTURE USE Keep this manual for future reference. This manual should be considered a permanent part of the product and stay with it. This manual should be available to anyone operating the product(s) it covers. This manual should remain with the product(s) it covers if sold to a new owner.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS Ground Fault Circuit Interrupter Protection Grounding Instructions Motor Overload Thermal Relief Valve PERSONAL PROTECTIVE EQUIPMENT 5 UNPACKING 6 ASSEMBLY 6 Installing knob-style handle Adding the pump breather cap Assemble the Spray Gun Organize Accessories COMPONENT LOCATION 8 CONNECTING HOSES 10 PURGING AIR FROM THE PUMP 11 NOZZLES 12... - Page 5 TROUBLESHOOTING 18 MAINTENANCE Maintenance Cleaning the Pressure Washer Connections Nozzle Cleaning Water Inlet Filter Pump Maintenance STORING THE PRESSURE WASHER USING SIMPSON ® PUMP GUARD LIMITED WARRANTY Page 3...
- Page 6 SAFETY INSTRUCTIONS READ THIS MANUAL BEFORE OPERATING This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.
-
Page 7: Personal Protective Equipment
WARNING: WARNING: OPERATOR SAFETY Failure to read and follow the operator’s manual and all of its instructions before using the product could result in DEATH or SERIOUS INJURY. Read this manual carefully and become failure with your electric pressure washer. Know its applications, its limitations and any hazards involved. -
Page 8: Unpacking
UNPACKING Follow the steps outlined in this section to unpack and assemble your pressure washer. If you have any questions regarding the unpacking or assembly of your pressure washer, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email cservice@fna-group.com. -
Page 9: Assemble The Spray Gun
Assemble the spray gun 1. Secure the lance to the gun by carefully turning the coupler on the spray gun until the coupler stops rotating. Do not over tighten. Most of the threads on the lance will not be visible if the lance and gun are properly assembled. -
Page 10: Component Location
COMPONENT LOCATION 1. High-pressure hose 2. Pump 3. Nozzles 4. Turbo nozzle 5. Detergent injection connector 6. Electric motor 7. Power supply cord 8. Spray wand quick connector 9. Ground Fault Circuit Interrupter (GFCI) Page 8... - Page 11 10. High-pressure pump outlet 11. Unloader control knob 12. Low-pressure pump inlet 13. Thermal relief valve 14. ON/OFF switch 15. Handle 16. Spray gun holder 17. Spray gun Page 9...
-
Page 12: Connecting Hoses
CONNECTING HOSES Before connecting a water supply hose, be sure the water supply is capable of providing an uninterrupted source of clean, cold water at a minimum rate of 5 gallons per minute (GPM) and 20 pounds per square inch (PSI) of pressure. Once a proper water supply is secured, follow the instructions below to connect both the water supply and high-pressure hoses to the pressure washer. -
Page 13: Purging Air From The Pump
PURGING AIR FROM THE PUMP NOTICE PUMP PURGING Running a pressure washer pump without water will severely damage the pump seals and other internal components. To avoid this hazard, make sure your water supply is uninterrupted and at least 5 GPM at 20 PSI, and always purge the air your pressure washer pump before starting the engine. -
Page 14: Nozzles
NOZZLES Nozzle Selection The nozzles supplied with the pressure washer have specific spray patterns designed to clean different surfaces. Using the incorrect nozzle can damage surfaces. Refer to the table below to select the correct nozzle before using the pressure washer. NOTE: The selection of nozzles included may vary with pressure washer models. -
Page 15: Operating Checklist
OPERATING CHECKLIST Location Place the pressure washer on a level surface outside. Never use an extension cord with the electric pressure washer. If the power supply cord will not reach a receptacle, move the pressure washer closer to the receptacle. Operating Conditions Before each use, check for loose or damaged parts, leaks, and/or any other condition that may affect proper operation. -
Page 16: Starting The Pressure Washer
WARNING: WARNING: INJECTION INJURY The high pressures created by a pressure washer can cause fluid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or fitting. - Page 17 DANGER: DANGER: ELECTROCUTION HAZARD Use of an extension cord could cause shock or burn resulting in death or serious injury. DO NOT use an extension with this electric pressure washer. Your home’s electrical circuit receptacle or extension cord may not provide lifesaving ground fault circuit interrupting protection.
-
Page 18: Using Chemicals
USING CHEMICALS NOTICE VOLATILE LIQUIDS Pressure washing with volatile, flammable, or corrosive liquids could cause pressure washer damage, fire, or explosion resulting in severe injury and/or death. To avoid these hazards, use only approved soaps and chemicals, do not attempt to pressure wash with volatile, flammable, or corrosive liquids, and NEVER use bleach. -
Page 19: Operation Tips
OPERATION TIPS Terms • PSI - Pounds per square inch (PSI) is the unit to measure the pressure of water. In relation to a pressure washer, the higher the PSI number, the greater the pressure and stripping power produced. • GPM - Gallons per minute (GPM) is the flow rate of water. In relation to a pressure washer, the greater the GPM, the greater the flow or rinsing power produced. -
Page 20: Troubleshooting
TROUBLE SHOOTING Issue Possible Cause Solution The power supply cord is Plug the cord into a 120 not connected. volt, 15 ampere receptacle. The house circuit breaker is Reset the circuit breaker. tripped. The GFCI equipped Reset the GFCI by pushing receptacle (if applicable) is the RESET button. -
Page 21: Maintenance
MAINTENANCE For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To find an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362- 4271 or email cservice@fna-group.com. -
Page 22: Nozzle Cleaning
Nozzle Cleaning If a nozzle becomes clogged, the pump may pulsate and spray patterns could change. If the nozzle is not cleaned, excessive pressure may develop possibly damaging the pump, or other accessories. Inspect nozzles before using them and follow the instructions in this section for the proper nozzle cleaning procedure. -
Page 23: Pump Maintenance
Pump Maintenance Note: The pump was filled with oil at the factory. The preferred oil is SIMPSON © Premium Pump Crankcase Oil. If this oil is not available, an SAE 15W-40 oil may be used. Change the oil after the first 50 hours of operation and every 100 hours thereafter or every 3 months. -
Page 24: Using Simpson ® Pump Guard
NOTICE PUMP DAMAGE Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly damage, always treat the pump with SIMPSON ® Pump Guard to remove the trapped water and to fill the pump with a lubricating, antifreeze solution. -
Page 25: Limited Warranty
RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): To process a warranty claim on your SIMPSON® pressure washer, report the concern to 1-877-362-4271 or cservice@fna- group.com for authorization and direction to the nearest authorized service center in your area. - Page 26 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 24...
- Page 27 THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 25...
- Page 28 READ THIS MANUAL CAREFULLY BEFORE OPERATION Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death. SAVE THIS MANUAL FOR FUTURE REFERENCE Part Number 7120009/ ENGLISH REV A - 1/2023...
