USER'S MANUAL (PART 2)

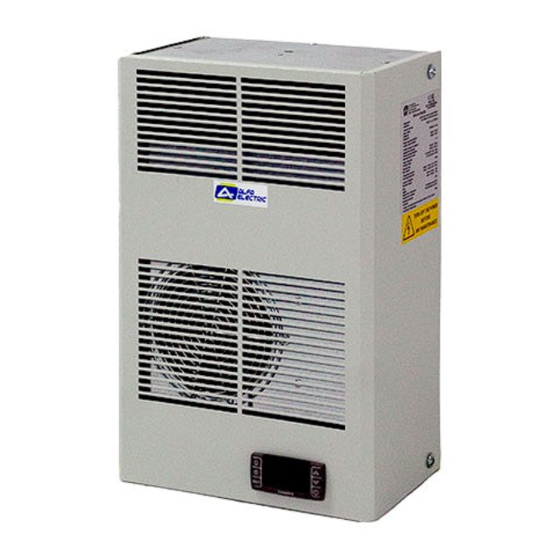

AIR CONDITIONER FOR ELECTRICAL ENCLOSURE
AVE035.002
AVE035.012
AVE035.022
Division of:
ALFAPLASTIC s.a.s.
Via Della Valle, 39 – 20841 Carate Brianza (MB) Italy
Tel. +39 (0362) 903.539 Fax. +39 (0362) 975.133
Mail:
info@alfaelectric.com
www.alfaelectric.com
Document: UMA-CDZ-AVE035.__2-00
Description
Original user's manual for air conditioner AVE035 series
Language: English
Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE
UMA-CDZ-AVE035.__2-00
OUTDOOR APPLICATION
Date
ISSUE
30/04/2021
REV. 01
REV. 02
REV. 03
Name
Ascheri M.
Page 1/20
Advertisement
Table of Contents
Related Manuals for Alfa Electric AVE035.002
Summary of Contents for Alfa Electric AVE035.002
- Page 1 USER’S MANUAL (PART 2) AIR CONDITIONER FOR ELECTRICAL ENCLOSURE OUTDOOR APPLICATION AVE035.002 AVE035.012 AVE035.022 Division of: ALFAPLASTIC s.a.s. Via Della Valle, 39 – 20841 Carate Brianza (MB) Italy Tel. +39 (0362) 903.539 Fax. +39 (0362) 975.133 Mail: info@alfaelectric.com www.alfaelectric.com Document: UMA-CDZ-AVE035.__2-00...
-
Page 2: Table Of Contents
PRODUCT HANDLING ....................4 GENERAL CHECKS BEFORE INSTALLATION ..............4 FITTING ........................5 3 - ELECTRICAL CONNECTION ...................... 7 WIRING DIAGRAM ......................7 3.1.1 AVE035.002 ......................7 3.1.2 AVE035.012 ......................8 3.1.3 AVE035.022 ......................9 ELECTRICAL INSTALLATION ..................10 ALARM OUTPUT / DIGITAL INPUT ................11 3.3.1... -
Page 3: Technical Data
1 - TECHNICAL DATA CONTROL TYPE ARTICLE CODE Digital thermostat with alarms AVE035.002 AVE035.012 AVE035.022 FEATURES Unit Power supply V | ph| Hz 230 | 1 | 50/60 115 | 1 | 50/60 400 | 2 | 50/60 A35-A35 350/370... -
Page 4: Installation
2 - INSTALLATION 2.1 PRODUCT HANDLING AIR CONDITIONER AVE series must be handled in upright position and protected against accidental tipping over. Air conditioners AVE035 series are fitted with female blind threaded insert to screw male lifting eye bolts. The air conditioner handling, when unpacked, can be done thanks to lifting eye bolt. If lifting eye bolts are not included, please provide an adequate M6 male lifting eye bolt (2) and screw it inside blind threaded (1) insert placed on top of the air conditioner Check the proper fixing of eye bolts before lift the air conditioner. -
Page 5: Fitting
2.3 FITTING 1) Make the fixing hole on the enclosure as is shown in the drilling template Deburr all sharp edges to avoid accidental injuries Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE Page 5/20 UMA-CDZ-AVE035.__2-00... - Page 6 2) Apply the gasket (included in fixing kit) on the back panel of the air conditioner 3) Lift the air conditioner by lifting eyebolt and place it near the enclosure wall 4) Mount the air conditioner on the electrical cabinet according to the drilling template with M6X16 screws and washers against unscrewing (included in mounting kit) 5) Connect the condensate drain pipe like is shown in picture below.
-
Page 7: Electrical Connection
3 - ELECTRICAL CONNECTION 3.1 WIRING DIAGRAM 3.1.1 AVE035.002 Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE Page 7/20 UMA-CDZ-AVE035.__2-00... -
Page 8: Ave035.012
3.1.2 AVE035.012 Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE Page 8/20 UMA-CDZ-AVE035.__2-00... -
Page 9: Ave035.022
3.1.3 AVE035.022 Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE Page 9/20 UMA-CDZ-AVE035.__2-00... -
Page 10: Electrical Installation
3.2 ELECTRICAL INSTALLATION The electrical installation must be carried out by a qualified electrician who is responsible for compliance with the applicable standards and regulations. Wire male plug (included) with an adequate cable as is shown by following picture Cable section must be at least 1,5mm2 The male plug is fitted with spring terminals: 1) Push the spring with a screwdriver and then insert the wire. -
Page 11: Alarm Output / Digital Input
3.3 ALARM OUTPUT / DIGITAL INPUT Air conditioner is fitted with an electronic controller which permits alarm output and digital input signals. 3.3.1 Alarm output Alarm output is activated according to alarm parameters (for example in case of enclosure temperature higher than ALU value, digital input not activated…... -
Page 12: Starting And Adjustment
4 - STARTING AND ADJUSTMENT After finishing assembly of the conditioner, wait approx. 30 min. before starting it (the oil must collect in the compressor to ensure lubrication and cooling). The air conditioner operates automatically, that is to say, after insertion, the evaporator fan operates continuously making the air inside the cabinet circulate. - Page 13 4.1.1 KEY COMBINATIONS: To lock & unlock the keyboard. To enter in programming mode To return to the room temperature display 4.1.2 LED FUNCTION DESCRIPTION: 4.1.3 MAX & MIN TEMPERATURE MEMORIZATION How to see the min temperature 1. Press and release the ▼ key. 2.
- Page 14 4.1.6 HOW TO CHANGE A PARAMETER VALUE To change the parameter’s value operate as follows: 1. Enter the Programming mode by pressing the SET + ▼ keys for 3s (the “°C” or “°F” LED starts blinking). 2. Select the required parameter. Press the SET key to display its value 3.
- Page 15 MdF (Maximum) length for defrost: (0÷255min) (0=no defrost) When P2P = n, (not evaporator probe: timed defrost) it sets the defrost duration, when P2P = y (defrost end based on temperature) it sets the maximum length for defrost. ALU MAXIMUM temperature alarm: (SET÷110°C; SET÷230°F) when this temperature is reached the alarm is enabled, after the “ALd”...
- Page 16 4.3.13 SERIOUS ALARM MODE (i1F = bAL) When the alarm input is activated (for example enclosure temperature higher than ALU value), the unit will wait for did delay before signalling the CA alarm message. The relay outputs are switched OFF. The alarm will stop as soon as the alarm input is de-activated. 4.2.14 ALARM SIGNALS 4.2.15 DEFAULT SETTING VALUES Label Name...
-
Page 17: Spare Parts List
5 - SPARE PARTS LIST REFERRED TO WIRING DESCRIPTION CODE DIAGRAM Evaporator fan A2175HBL-TC Compressor BSA357DT Condenser fan VCENT190D230V Compressor capacitor CON6.3UFS2M8F Condenser fan capacitor CON2UFS2M8F Regulating thermostat TERMDIG1S1D2R Autotransformer AUTOTRA450VA Supply connector (male plug) SPINALIM3 Signal connector (male plug) SPIN-SEGN4 Pressure switch PRSWO7-C10... - Page 18 Fix the Flow diverter with included n°2 screws. Designation: AIR CONDITIONER FOR ELECTRICAL ENCLOSURE Page 18/20 UMA-CDZ-AVE035.__2-00...
-
Page 19: Warranty
WARRANTY Alfa Electric Division of: ALFA PLASTIC s.a.s. Via Della Valle, 39 – 20048 CARATE BRIANZA (MI) Tel. +39 (0362) 903.539 – Fax +39 (0362) 975.133 Mail: info@alfaelectric.com www.alfaelectric.com guarantees that the product is free from any quality defects. The product is guaranteed for a period of 12 months from the date of delivery, provided it operates under the following conditions: 1. -
Page 20: Ue Declaration Of Conformity
UE DECLARATION OF CONFORMITY Alfa Electric Division of: ALFA PLASTIC s.a.s. Via Della Valle, 39 – 20841 CARATE BRIANZA (MB) Tel. +39 (0362) 903.539 – Fax +39 (0362) 975.133 Mail: info@alfaelectric.com www.alfaelectric.com DECLARE THAT THE AIR CONDITIONER FOR ELECTRICAL CABINETS...
