Music-On-Hold Adapter Module
One Small Office On-Hold Adapter provides on-hold audio on 1 to 4 lines
Lines 1 & 2 are combined in one wall jack and lines 3 & 4 (if present) are combined in another wall jack
3
2
Lines 1 & 2
The Small Office On-Hold Adapter can be connected to
any phone jack in your home or office. We have supplied
two duplex jacks so you can share the jack with a phone
that may be presently connected to that jack.
3
2
Line 1
Line 2
Two "Duplex Jacks" have been included in
this package. Under this configuration, if
your telephone is sharing the same wall
jack, you will need to purchase 2 more
"Duplex Jacks" . "Duplex Jacks" are
available through most retailers.

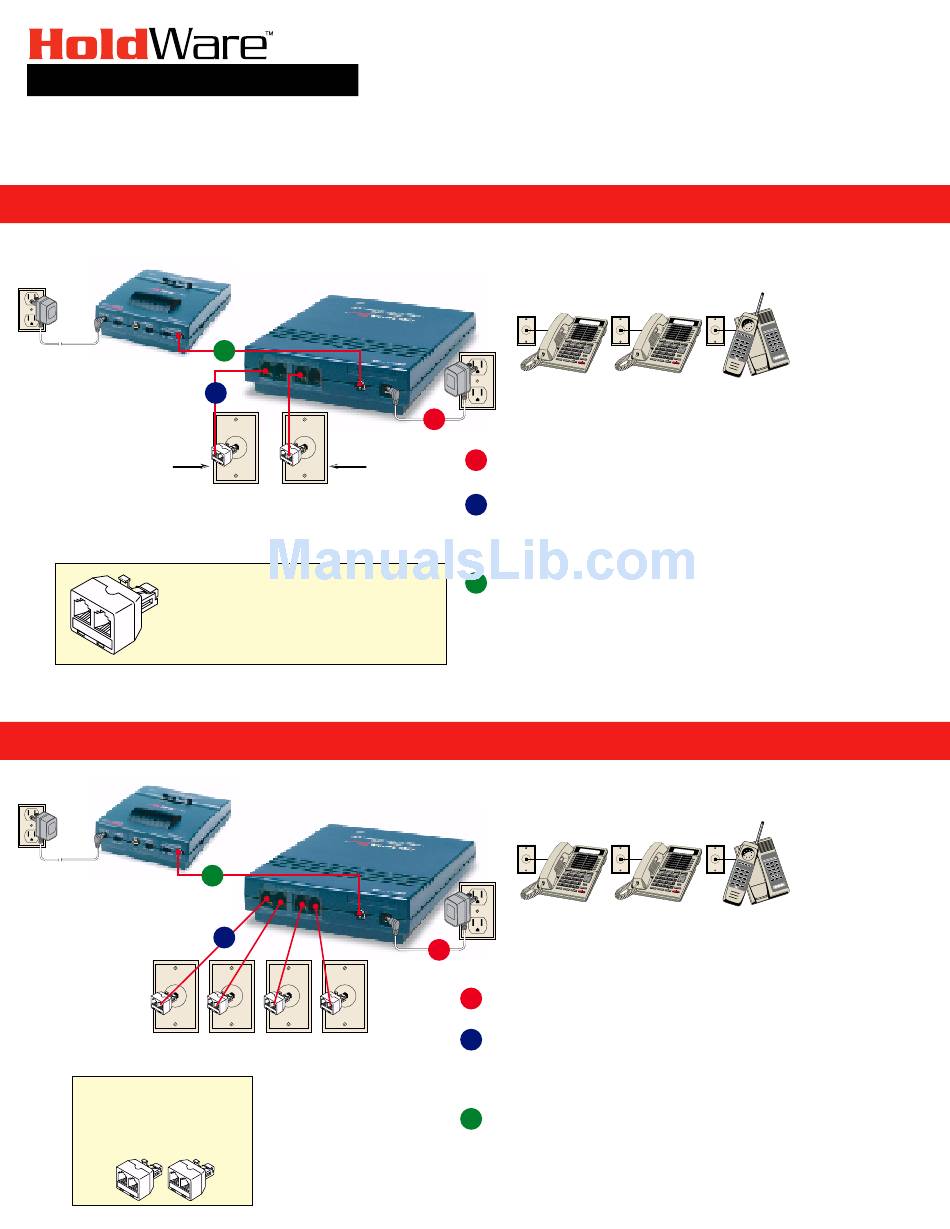

Connection Guide
and up to 50 phone extensions, even cordless phones.

Combined Line Connection

1
Lines 3 & 4

Separate Line 1, 2, 3, 4 Connection

Lines 1, 2, 3 & 4 come from individual and separate wall jacks
Line 3
Line 4
office phone extensions
Connection
1
Plug the AC adapter into a 110V power outlet and connect the other end to the
9V jack.
2
Plug the provided phone cord into the jack marked "Line 1/2" and the other end
of the phone cord into the wall jack which is servicing line 1 and 2.
NOTE:
Use a "Duplex Jack" (provided) to share the phone jack with an
existing phone.
3
Connect the audio cable from the "Playback Out" jack on your HoldWare Player
to the "Audio" jack on the music-on-hold adapter.
Repeat step 2 for additional lines
Repeat step 2 for additional lines (if necessary)
office phone extensions
1
Line 1,2,3,4 Connection
Plug the AC adapter into a 110V power outlet and connect the other end to the
1
9V jack.
2
Plug the provided phone cord into the jack marked "Line 1/2" and the other end
of the phone cord into the wall jack which is servicing line 1.
NOTE:
Use a "Duplex Jack" (2 provided) to share the phone jack with an
existing phone
3
Connect the audio cable from the "Playback Out" jack on your HoldWare Player
to the "Audio" jack on the music-on-hold adapter.
Repeat step 2 for additional lines
(if necessary)
(if necessary)
