Toyota/Lexus/Scion - Simple CarConnect Owner's Manual

4.

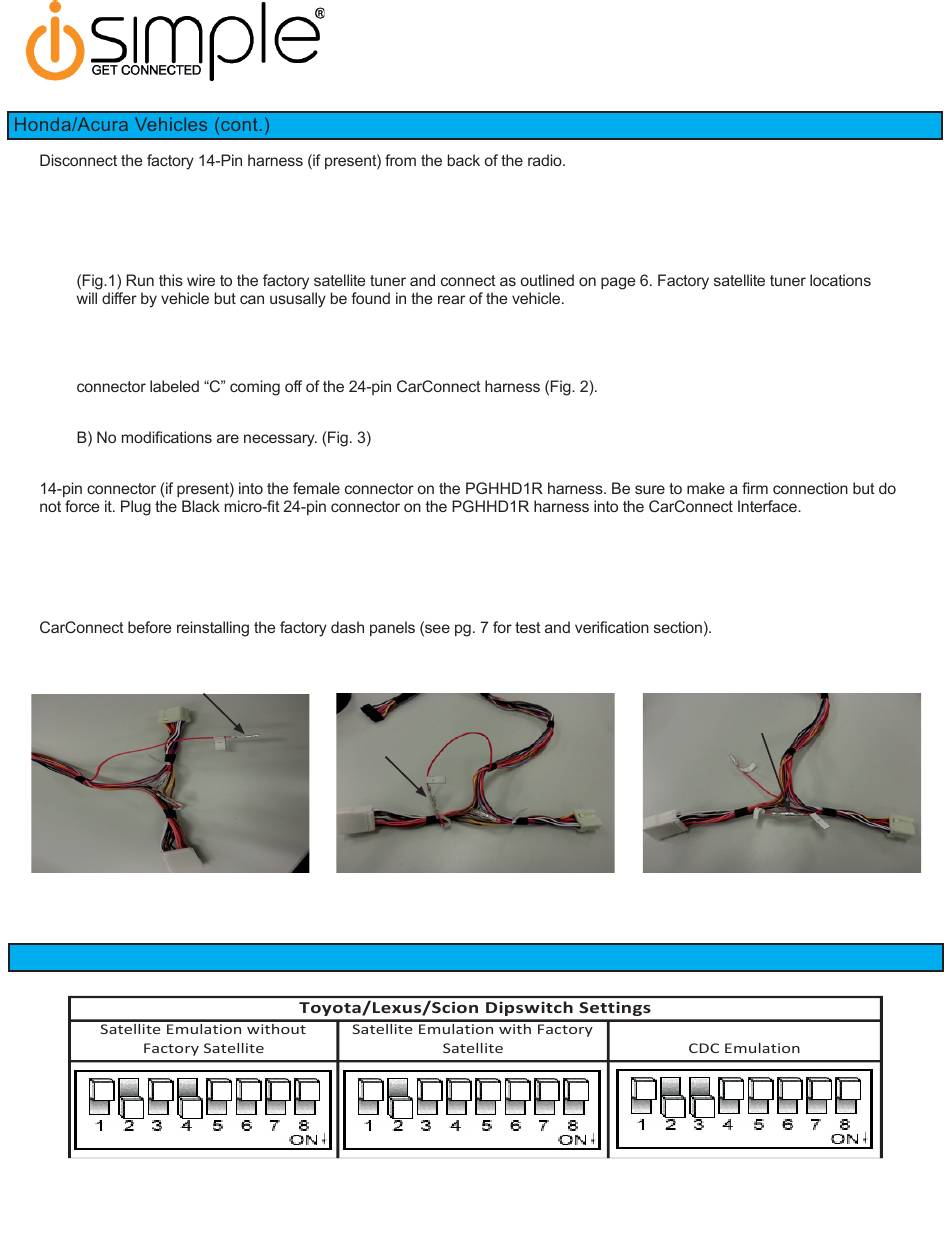

5. Prepare the CarConnect harness for installation. Depending on what factory peripherals you have in your vehicle, you may
need to make changes to the red wire with bullet connectors on them.
A. Vehicles equipped with factory Satellite Radio + other Peripherals (Rear Seat Entertainment, CD Changer, etc...):
Connect the supplied PGHSATR wire to the bullet connector labeled "C" coming off of the 24-pin CarConnect connector.
B. Vehicles equipped with only factory Satellite Radio: Disconnect the bullet connectors labeled A & B on the
PGHHD1R harness. Connect the bullet connector labeled "B" on the vehicle side of the PGHHD1R harness to the bullet
C. Vehicles equipped with no factory peripherals: Leave all bullet connectors as they are out of the box (A connected to
Plug in the male connector on the PGHHD1R harness into the14-pin port on the back of the radio. Next, connect the factory
5.
6. To complete the installation secure the CarConnect into the cavity in the dash behind the radio. Be sure that the cables and
interface modules are not near moving parts or sharp metal edges as they may damage the cables. To prevent rattling noises
inside the dash, use zip ties, tape, or other fasteners to mount the interface securely.
7. With all connections made, insert the key into the ignition, and turn the vehicle on. Check for proper operation of the
Connect PGHSATR Wire to C Here
Fig. 1
Toyota/Lexus/Scion Vehicles
Connect B to C Here
Fig. 2
CarConnect
Smartphone Integration Interface
Installation/Owner's Manual
Leave A connected to B Here
Fig. 3
