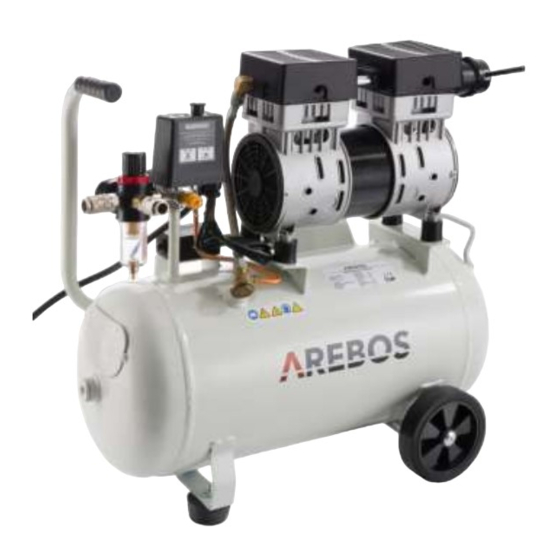

- Page 1 User’s Manual – A S Air Compressor 24L REBO Air Compressor 24L AR-HE-LK800124F Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
User’s Manual – A S Air Compressor 24L REBO List of contents 1. Safety instructions ............3 1.1 Icon description ..........................3 1.2 General safety instructions ......................4 1.3 Safety instructions for working with compressed air and blow guns ........... 5 1.4 Safety instructions for paint spraying ................... -
Page 3: Safety Instructions
User’s Manual – A S Air Compressor 24L REBO Please read and save these instructions. Read through this user’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. -
Page 4: General Safety Instructions
User’s Manual – A S Air Compressor 24L REBO The guaranteed sound power level is 79 dB. 1.2 General safety instructions • Keep your work area in order. - Clutter in the work area can result in accidents. - Do not eat, drink or smoke in the work environment. •... -
Page 5: Safety Instructions For Working With Compressed Air And Blow Guns
User’s Manual – A S Air Compressor 24L REBO • Use extension cords for outdoor use. - Only use approved extension cords outdoors and marked accordingly. • Always be attentive. - Pay attention to what you do. Get to work with reason. - Do not use the compressor when you are unfocused, tired or under the influence of drugs, alcohol or medication. -
Page 6: Safety Instructions For Paint Spraying
User’s Manual – A S Air Compressor 24L REBO damage or rust, contact a qualified professional. • Danger of burning! Compressors and lines reach high temperatures during operation. Touching leads to burns. - Do not touch the compressor and lines during operation to avoid burns. - Be careful when working. -
Page 7: Operation Of Pressure Vessels
User’s Manual – A S Air Compressor 24L REBO in the non-vented state. If the compressor is damaged, connections are loosened or unsuitable or damaged lines are used, pressure may be released. - The compressor must not be operated if the compressed air tank has defects that endanger the operator or third parties. -
Page 8: Technical Data
Risk of injury! The compressor is very heavy. If you lift it out of the packaging by yourself, you may injure yourself. - Do not lift the compressor out of the package alone, but with the help of another person. 2. Technical data Modell AR-HE-LK800124F Power 800 W Tank volume Voltage 220-230 V a.c. - Page 9 User’s Manual – A S Air Compressor 24L REBO 01 Covery 10 Obturating ring 19 Valve plate 28 Bolt 02 Left fan 11 Cylinder head 20 Washer 29 Bolt 03 Left crank case 12 Bolt 21 Right fan 30 Spring 04 Connecting rod 13 Obturating ring 22 Shaft seal...
-
Page 10: Operation
User’s Manual – A S Air Compressor 24L REBO 39 Air filter 48 Pressure switch 57 Choke plug 66 Bolt 40 Elbow 49 Capacitor 58 Nut 67 Plug 41 Deflation valve 50 Capacitor cover 59 Washer 68 Transportation handle 42 Regulator 51 Check valve 60 Cushion foot 69 Air tank/pressure... -
Page 11: Layout
User’s Manual – A S Air Compressor 24L REBO 5.2 Layout... - Page 12 User’s Manual – A S Air Compressor 24L REBO...
- Page 13 User’s Manual – A S Air Compressor 24L REBO...
-
Page 14: Parts List (Fig. 1-5.2)
User’s Manual – A S Air Compressor 24L REBO 5.3 Parts List (Fig. 1-5.2) 1. Cylinder/Motor 2. Pressure vessel 3. Filter regulator 4. Pressure gauge for pre-pressure 5. Quick coupling 6. Tank pressure gauge 7. Pressure regulator 8. ON/OFF switch (red knob) 9. -
Page 15: Assembly And Operation
User’s Manual – A S Air Compressor 24L REBO 6. Assembly and operation • IMPORTANT! You must fully assemble the device before using it for the first time. • The following part numbers refer to the parts list of the chapter Layout! Fitting the supporting feet (18) •... -
Page 16: After Use
User’s Manual – A S Air Compressor 24L REBO After use 1. Turn off the device. 2. Disconnect the power plug 3. Disassemble all accessories from the device, such as hose, tire filling knife, etc. 4. Allow the unit to cool before repairing or cleaning. 5. -
Page 17: Clean Safety Valve (17)
User’s Manual – A S Air Compressor 24L REBO 7. Close the drain valve (14) again. 7.3 Clean safety valve (17) • The safety valve has been set to the highest permissible pressure of the pressure vessel. • IMPORTANT! It is forbidden to adjust the safety valve or to remove its seal. •... -
Page 18: Troubleshooting
User’s Manual – A S Air Compressor 24L REBO 1. Disconnect the power plug from the socket. 2. Allow the compressor to cool completely. 3. Vent the compressor. 4. Clean the compressor and remove the condensation as described in this chapter. 5. -
Page 19: Eu Declaration Of Conformity
Authorised representative for the technical documentation: Korhan Canbolat Office address: Canbolat Vertriebs GmbH Gneisenaustraße 10-11 D-97074 Würzburg Return address can be found in the imprint: https://www.arebos.de/impressum/ VAT identification number: DE 263752326 Court of the Commercial Register is Würzburg, HRB 10082 WEEE Reg.-No. DE 61617071...
