Operation

The following section describes how to raise the Folding Loop Antenna into the
operational position, lower the antenna into the stored position and tuning the
antenna.
Take care not to trap fingers whilst raising the Folding Loop
Antenna. Always wear protective gloves when raising or
lowering the Folding Loop Antenna.
Take care as some surfaces may become hot or cold
depending on environmental conditions.
Do not to rotate the Folding Loop Antenna past 90°
Do not touch the Folding Loop Antenna when in use and RF
power is applied.

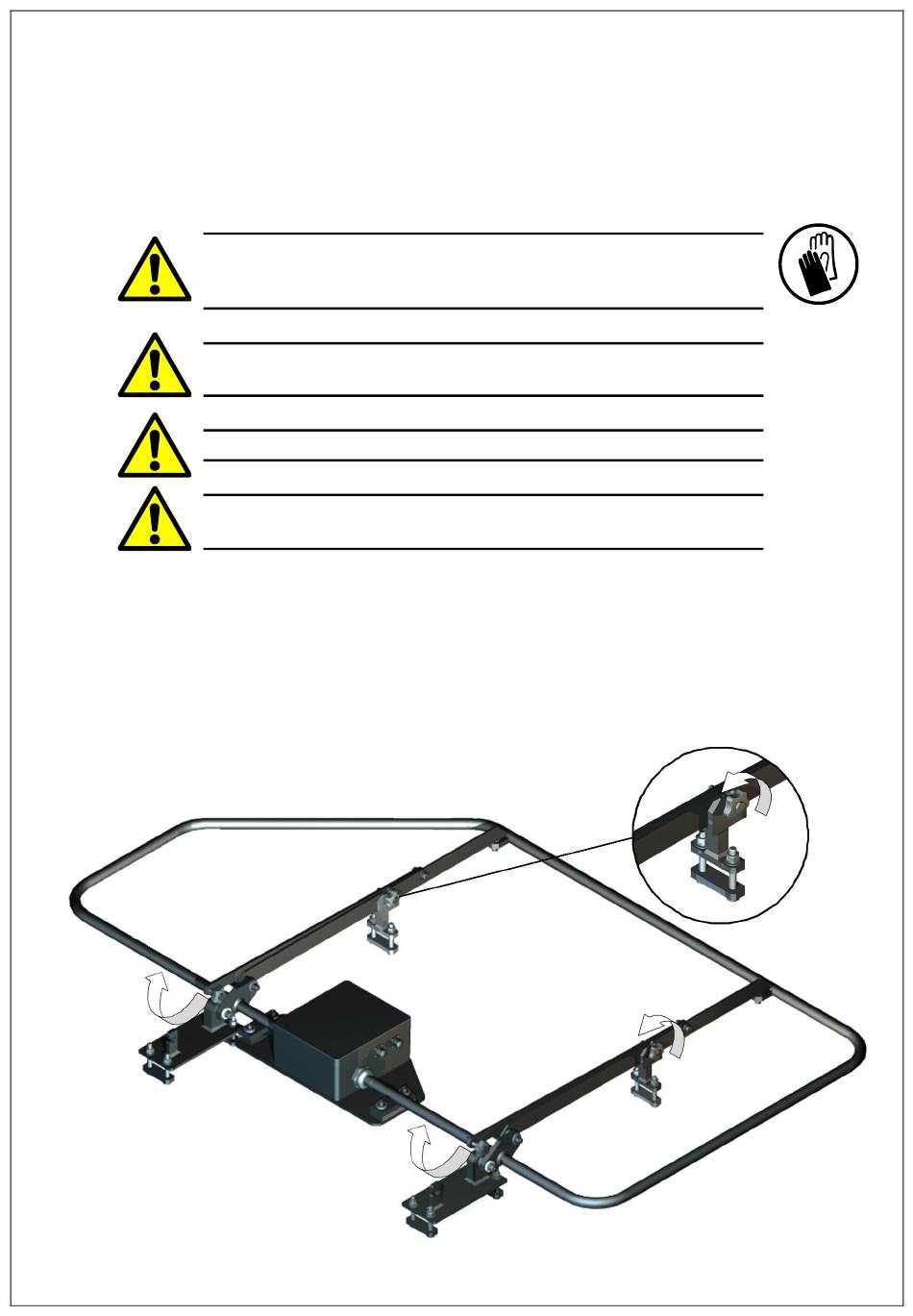

Raising the Folding Loop Antenna
1. Release the Locking Knobs holding the NVIS Loop Antenna in the
Stored
disengaged from the Retainer Upstands.
Issue 1
Position, by turning them counter clockwise until they have fully
10
