SMC Networks SMCANT-OOM5P Technical Specifications

TECHNICAL SPECIFICATIONS

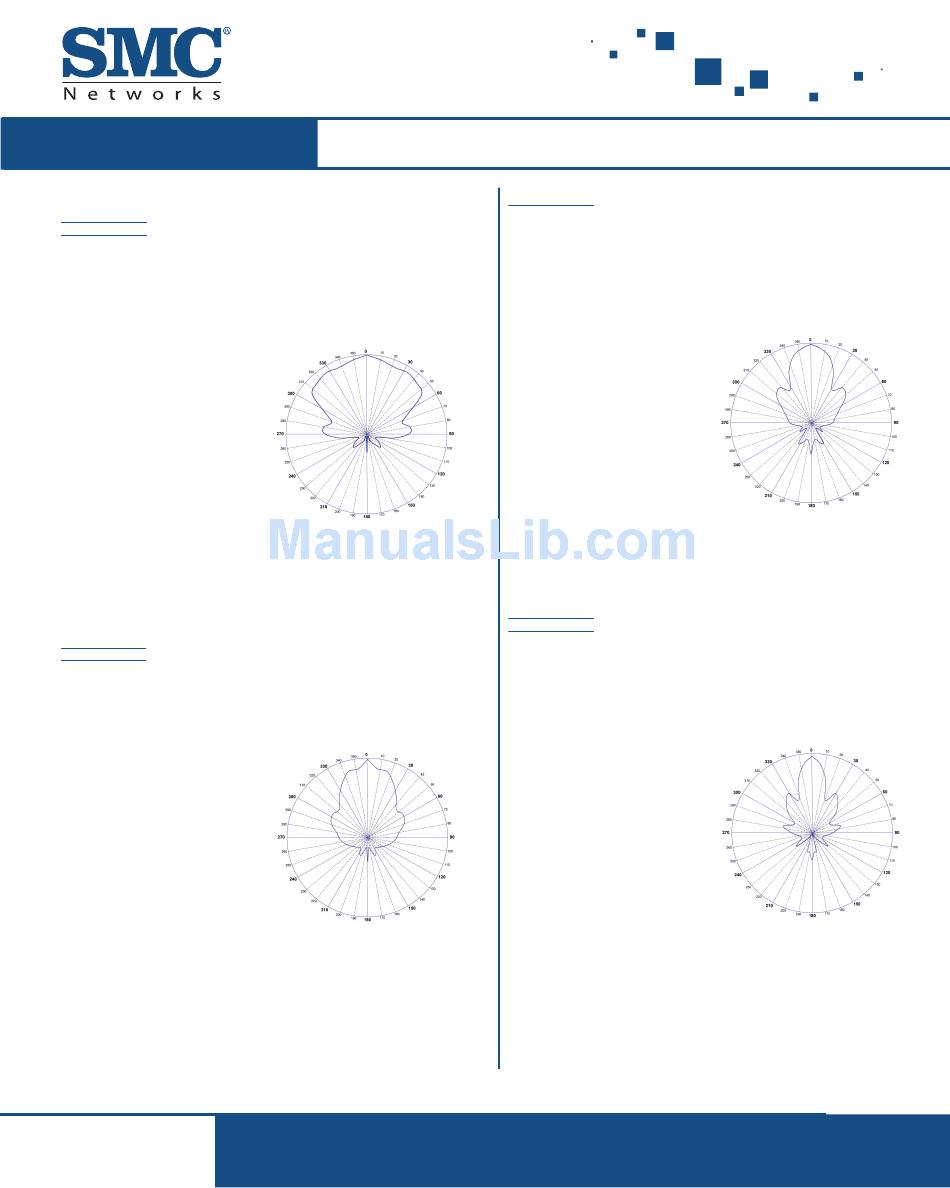

DIRECTIONAL ANTENNAS
SMCANT-DI105
FREQUENCY RANGE
• 2.400 - 2.500 GHz
GAIN
• 10.5 dBi
VSWR
• < 1.22
POLARIZATION
• Circular
BEAM WIDTH
• Horizontal: 50°
• Vertical: 50°
F/B RATIO
• 28 dB
WIND LOADING
• 160-200 kmh / 100-125 mph
MAX. RANGE
• 4.8 km / 3.5 miles
IMPEDANCE
• 50 Ohms
CONNECTOR
• N female
DIMENSIONS
• 116 x 111 x 160 mm
• 4.58 x 4.37 x 6.28 in
WEIGHT
•312 g / 0.688 lbs
SMCANT-DI135
FREQUENCY RANGE
• 2.400 - 2.500 GHz
GAIN
• 13.5 dBi
VSWR
• < 1.22
POLARIZATION
• Circular
BEAM WIDTH
• Horizontal: 36°
• Vertical: 36°
F/B RATIO
• 26 dB
WIND LOADING
• 160-200 kmh/ 100-125 mph
MAX. RANGE
• 8 km/ 5.0 miles
IMPEDANCE
• 50 Ohms
CONNECTOR
• N female
DIMENSIONS
• 116 x 111 x 276 mm
• 4.58 x 4.37 x 10.85 in
WEIGHT
• 553 g / 1.22 lbs
www.smc.com
DIRECTIONAL ANTENNAS
SMCANT-DI105
SMCANT-DI135
SMCANT-DI145
FREQUENCY RANGE
• 2.400 - 2.500 GHz
GAIN
• 14.5 dBi
VSWR
• < 1.22
POLARIZATION
• Circular
BEAM WIDTH
• Horizontal: 26°
• Vertical: 26°
F/B RATIO
• 15 dB
WIND LOADING
• 160-200 kmh / 100-125 mph
MAX. RANGE
• 14 km / 9.0 miles
IMPEDANCE
• 50 Ohms
CONNECTOR
• N female
DIMENSIONS
• 116 x 111 x 316 mm
• 4.58 x 4.37 x 12.46 in
WEIGHT
• 652 g / 1.44 lbs
SMCANT-DI215
FREQUENCY RANGE
• 2.400 - 2.500 GHz
GAIN
• 21.5 dBi
VSWR
• < 1.22
POLARIZATION
• Circular
BEAM WIDTH
• Horizontal: 14°
• Vertical: 14°
F/B RATIO
• 25 dB
WIND LOADING
• 160-200 kmh / 100-125 mph
MAX. RANGE
• 32 km / 20.0 miles
IMPEDANCE
• 50 Ohms
CONNECTOR
• N female
DIMENSIONS
• 610 x 457 mm / 24 x 18 in
WEIGHT
• 7.7 kg
• 17 lbs
SMCANT-DI145
SMCANT-DI215
