FRAMOS D435E Getting Started
Industrial depth camera
Hide thumbs
Also See for D435E:
- User manual (20 pages) ,
- User manual (41 pages) ,
- User manual (64 pages)
Advertisement
Quick Links
FRAMOS GmbH · Mehlbeerenstr. 2 · 82024 Taufkirchen · Germany
INDUSTRIAL DEPTH CAMERA D435E
GETTING STARTED PAGE 1 / STARTER KIT BOX CONTENTS*
Box contents:
D435e
1
Power Cable
3
Wall
socket
adapter
1

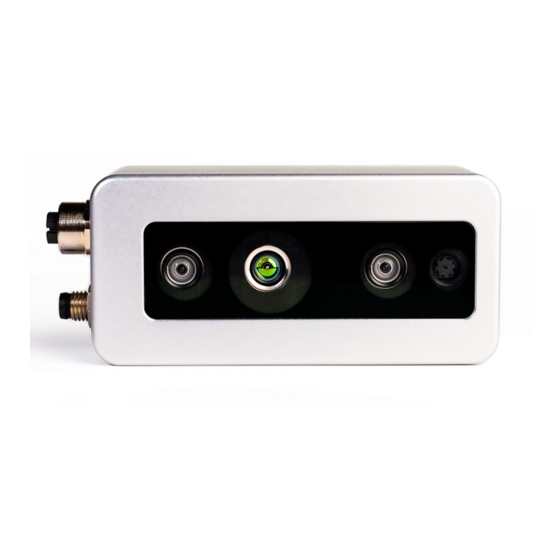

FRAMOS Industrial Depth Camera D435e, with M12 Ethernet and M8 power supply /
GPIO connectors.
2
Ethernet data cable with RJ45 connector (PC connection) on one side and M12
connector (camera connection) on the other side.
Power adapter of wall socket mains supply to 12V with M8 camera connector.
3
"Business Card" with the link to the landing page of the D435e where all documentation
4
and software can be downloaded.
* If you bought the camera only, no power adapter and no Ethernet cable will be part of the box
Eng-support@framos.com | +49 (0) 89 – 710 667 – 0
www.framos.com | FRAMOS GmbH | Mehlbeerenstr. 2 | 82024 Taufkirchen | Germany
2
4
M8
CONTACT DETAILS
Data Cable
M12
RJ45
Docu-Link
