Summary of Contents for Kogan SMARTERHOME KABLFAN3RSA

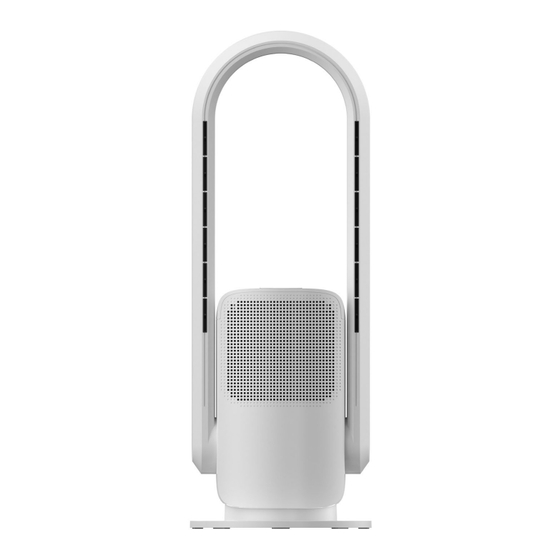

- Page 1 KOGAN SMARTERHOME™ BLADELESS PURIFIER FAN HEATER KABLFAN3RSA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Before First Use Operation Connect to SmarterHome™ App Google Home Control Amazon Alexa Control Cleaning & Care Specifications... -
Page 3: Safety & Warnings
• Before use, check that the power cord and the plug are in good condition. If the power cord is damaged, do not use the fan heater. Contact help.Kogan.com for assistance. • If this fan heater is covered or incorrectly placed, it can cause a fire hazard. Keep the fan heater at least 1.5 meters away from any direct heat sources (for example, stoves,... - Page 4 • If the fan heater stops working, turn off the power and unplug the power cord immediately. Contact help.Kogan.com for assistance. • Do not attempt to repair the fan heater yourself. Contact help.Kogan.com for assistance. • Do not use the fan heater if it is facing an electrical outlet or is under a power outlet.
-
Page 5: Components
COMPONENTS A Fan heater (x1) B Remote control (x1) C AAA batteries (x2) D User guide (x1) -
Page 6: Overview
OVERVIEW Front view Side view 1 Air duct 7 Air duct 2 Air outlet 8 Top cover 3 LED display 9 Air inlet 4 Top cover 10 Fan heater body 5 Air inlet 11 Power cord 6 Base... -
Page 7: Before First Use
BEFORE FIRST USE Placement Place the fan heater on a stable level surface. Ensure there at least a one metre clearance with the fan heater from any walls or obstructions. This will make sure there is optimal airflow from the air inlet and outlet. -
Page 8: Operation
OPERATION Powering on and off • Connect the power cord into a socket. Press the power button in the base. The fan heater will enter standby. • Press the power button ‘ ’ on the LED display or remote. The fan heater will beep once then start operating. - Page 9 LED display Wi-Fi light indicator UV-C disinfection light indicator Filter replacement light indicator Temperature display Mode and humidity display Power button Name Icon Description • When in standby, press this button to turn the fan heater on. • Press and hold the button for 1 second to turn the Power button oscillating function on and off.
- Page 10 This indicator is used to connect the fan heater to your smart device. Wi-Fi light indicator Refer to the ‘Connect to the SmarterHome™ app’ section of this user guide for further instructions. • In Fan mode, the display will light up in white. Temperature display •...
- Page 11 Name Button Description Power Identical functions to the power button on the LED display. • Press this button once to switch the fan heater into Fan mode. Fan mode • In Fan mode, the LED display lights up as white. •...
- Page 12 UV-C sterilisation is effective in eliminating various kinds of viruses and bacteria in the air. • Press once to turn on the UV-C sterilisation function. UV-C sterilisation • Press again to turn off the UV-C sterilisation function. • The UV sterilisation function will automatically turn off after operating for 1 hour.
- Page 13 Warm mode 1. Press the ‘Warm mode’ button to activate. The LED display will show the current temperature. 2. Press the ‘Increase temperature’ and ‘Decrease temperature’ buttons. The LED display will start flashing and users can adjust the desired temperature between 1–30°C.
-
Page 14: Connect To Smarterhome™ App
CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: 1. If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’. - Page 15 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (the Wi-Fi light indicator will be rapidly flashing). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by holding the power button on the LED display for five seconds until the Wi-Fi light indicator is flashing.
- Page 16 4. Ensure that the device is in pairing mode, with the Wi-Fi light indicator flashing rapidly, and tap ‘Confirm light is rapidly flashing’. 5. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
- Page 17 Having trouble connecting? The prior steps detail the process for ‘EZ Mode’ connection. If that does not work for your connection, we suggest trying it again, and if still no success, attempting the following method for AP Mode connection. Set device in AP pairing mode Set the device in pairing mode by pressing and holding the power button again for five seconds until the Wi-Fi light indicator is flashing slowly.
- Page 18 5. Follow the in-app prompts to continue AP Mode connection, which will pair your mobile phone to the device’s Wi-Fi hotspot to ensure a connection. This may be named ‘SL-KoganSmart’, ‘SmartLife-XXXX’, or another similar name. Note: If the Wi-Fi hotspot does not appear on your phone in the list of available networks, your device may not be set in AP Pairing Mode correctly.
-
Page 19: Google Home Control
Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Google Home app 1. From the home page of the Google Home app, select the ‘+’ icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’... - Page 20 3. Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. 4. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 21 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
-
Page 22: Amazon Alexa Control
AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Alexa app 1. From the home page of the Alexa app, select the ‘ ’ icon in the bottom-right and select ‘Skills &... - Page 23 3. Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. 4. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 24 7. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
-
Page 25: Cleaning & Care
CLEANING & CARE WARNING: Unplug the power supply before performing maintenance. Filter replacement 1. Lift out the top cover. 2. Lift out the old air filter. 4. Reinstall the top cover. The magnetic lid 3. Insert the new filter into the main body on the top cover should form an easy of the fan heater. - Page 26 Cleaning the fan heater body, air inlet and outlet • Use a soft dry cloth to lightly wipe the surface of the fan heater. • A soft cloth combined with mild diluted detergent may also be used. Wipe dry with another soft cloth.
-
Page 27: Specifications
SPECIFICATIONS Rated voltage/ frequency 220–240V Rated frequency 50–60Hz Rated power 35W (Fan)/2000W (Heater) Fan heater dimensions 700 x 255 x 255mm Net weight Approx. 4.8kg Gross weight Approx. 6.6kg... - Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your fan heater, as well as any additional assistance you may require, head online to help.kogan.com...
