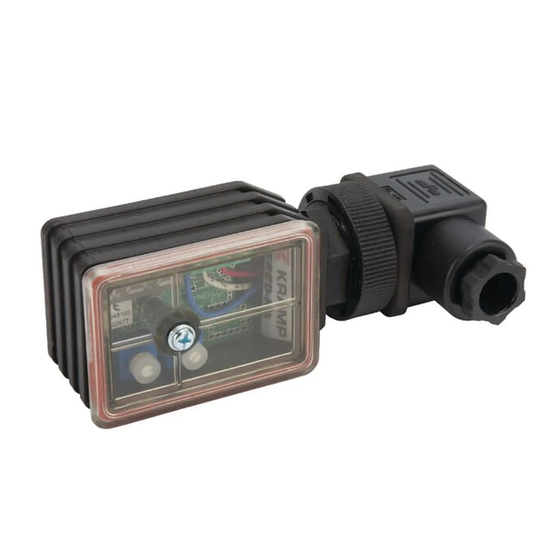

- Page 1 USER GUIDE FOR SOLENOID OPERATED PROPORTIONAL VALVES UNIVERSAL ELECTRONIC DRIVER TYPE KRED-KA kramp...
-
Page 2: Key Features
9. To start over completely, you can restore the factory settings by rotating SELECT to rFP and then rotate ADJUST up past 10 for the display to reset (NOTE for Step 9: you may have to adjust your Input Signal Setting again if you reset to factory settings.) Universal electronic driver type KRED-KA for solenoid operated proportional valves 03/2016... -
Page 3: Setting Ranges
4 SETTING RANGES Adjustable Parameter Description range HIGH, Maximum Current Output 0,20 - 3,00 A LOW, Minimum Current Output (see note 1) 0,00 - 2,99 A RAMP UP, Time for Output to increase from min to max 0,0 - 99,5 s RAMP DOWN, Time for Output to decrease from max to min 0,0 - 99,5 s COMMAND DEADBAND, Output disabled if command signal is less then deadband... -
Page 4: Potentiometer Connection
4-20 mA Command signal 5 TWO WIRE TRANSMITTER INPUT CONNECTION 4-20 mA (” in” set to ”420 ”) Analog ue Power supply output 9-36 V 4-20 mA Command signal Universal electronic driver type KRED-KA for solenoid operated proportional valves 03/2016... - Page 5 7 ADJUSTMENT Adjustment of Maximum: Adjustment of minimum (Low) / parameter „Lo“ (High) / parameter „Hi“ Maximum Current output 0,00 - 2,99 A Maximum Current output 0,20 - 3,00 A 3.00 3.00 3.00 2.00 2.00 1.00 1.00 0.00 0.00 5 or 10 V 5 or 10 V Command signal [V or mA] Command signal [V or mA]...
