Summary of Contents for Kramp MT-Pro+

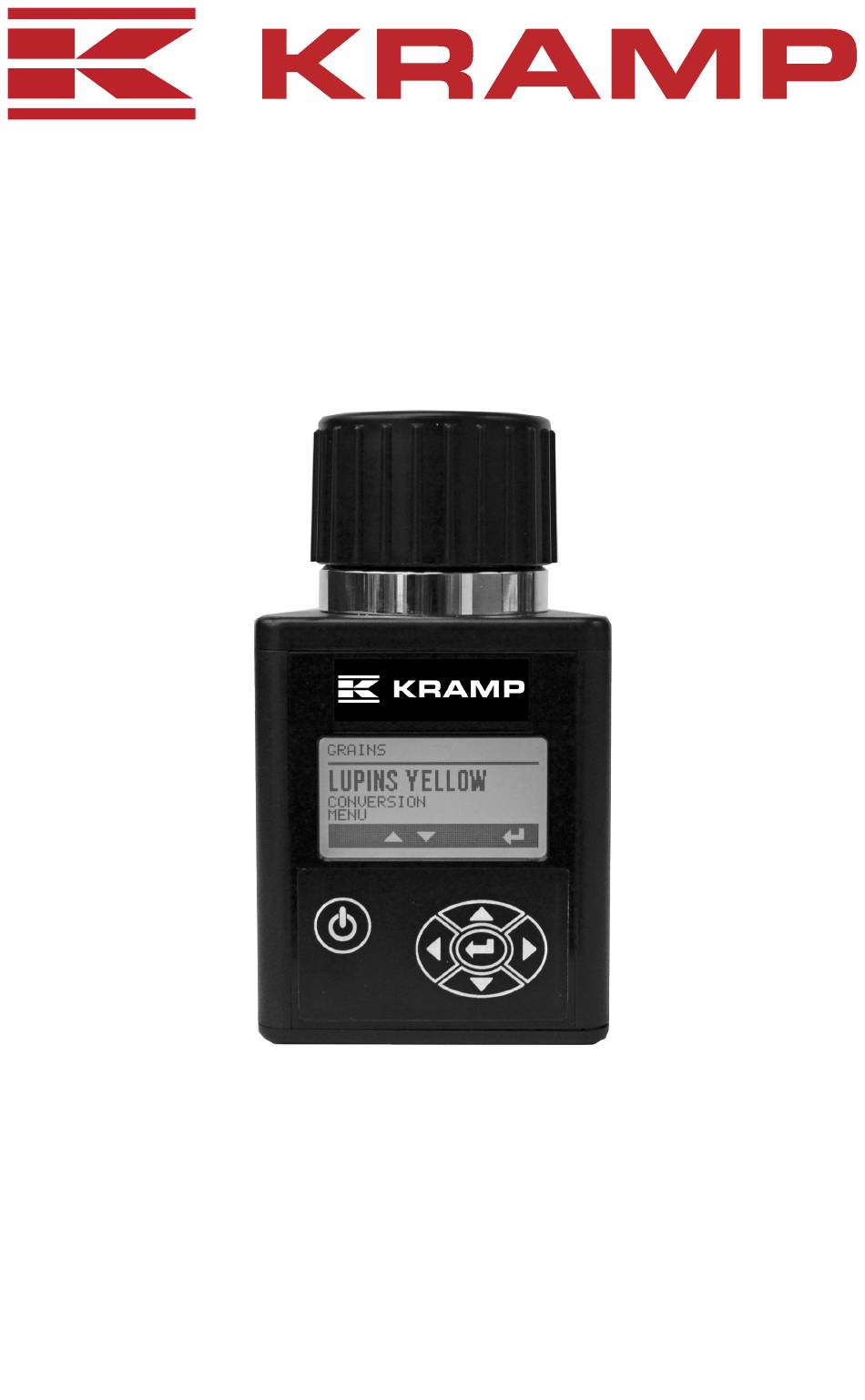

- Page 1 Medidor de Humedad de Grano Operators manual...
- Page 2 Operation COMPONENTS TESTER BATTERY DOOR USB DOOR USB CABLE CARRYING CASE A - Test Cell B - Display C - Keyboard D - Cap E - Pressure-indicator Screw...
-
Page 3: Operating Conditions
Operation OPERATING CONDITIONS Test cell and grain MUST be free of any condensation or surface moisture. Moisture on grain or in test cell will cause high readings. Very hot or cool grain will pick up moisture when it warms or cools. Because grains are irregularly shaped and may not always pack the same way in the test cell, minor variations in readings may occur. -
Page 4: Menu Screens
Operation MENU SCREENS A - The name of the menu that is currently displayed B - The list of menu items to select from C - The button bar indicates which buttons are active in the menu GRAIN RESULTS SCREEN A - Name of the grain tested B - Current moisture result C - Temperature of the grain... -
Page 5: Functions And Settings
Operation TESTING GRAINS THAT ARE ABOVE OR BELOW THE LIMITS If the grain being tested in the tester is above or below the grains calibration limits the tester will display a < (less than) or > (greater than) symbol followed by the tested grain’s upper or lower moisture limit. - Page 6 Operation CLEAR AVERAGE In Clear average option choose between current grain or all grains and press enter. Trash can will be displayed to confirm that your averages have been cleared SELECT THE NUMBER OF TESTS TO AVERAGE The tester can automatically average 3, 6 or 9 tests. (default is 3). Choose by pressing enter.
-
Page 7: Auto Shutoff
Operation AUTO SHUTOFF The tester can automatically turn off in 30 seconds, 1 minute or 5 minutes. Choose preffered time by pressing enter. DISPLAYING THE SOFTWARE VERSION OF THE TESTER Software version is shown in Version section of options. Choose by pressing enter and software version will then be displayed for a few seconds. -
Page 8: Lcd Contrast
Operation BATTERY Battery level can be checked. Replace battery if battery level is low. The tester is powered with two 9 volt alkaline batteries. The left battery (A) powers the backlight circuit. The right battery (B) powers the system. The tester will display a percentage of battery life left in both the system and backlight batteries. -
Page 9: Troubleshooting
Troubleshooting SYMPTOM A: Unit does not power up or loses power occasionally (or backlighting does not operate.) SOLUTION 1: Press ON-OFF button for shorter time. Do NOT hold button down. SOLUTION 2: Check batteries for 0% or higher. Replace as necessary. SOLUTION 3: Battery contacts may be making poor con- tact. -
Page 10: Warranty
The liability of KRAMP is limited to the price of the product at a maximum. KRAMP does not accept any responsibility for any direct, indirect or consequential damages that are caused by the use of the product or the fact that the product could not be used.
