- Page 1 Operating Instructions Technical Parameters multisio 1D4-4RO ISO Potential free 4 relay output module...
- Page 2 Operating instructions multisio 1D4-4RO ISO Table of Contents Function description relay output module multisio 1D4-4RO ISO ................2 Connection diagram for relay output module ........2 Relay output module LED display ............3 Function of scan button ................ 3 Function of the DIP switches ............... 4 5.1 Mode of operation ....................

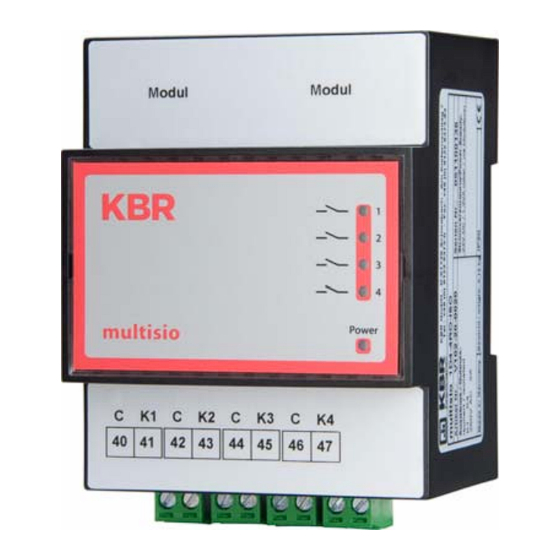

- Page 3 Function description relay output module multisio 1D4-4RO ISO The hardware of the multisio 1D4-4RO ISO supports 4 potential free relay outputs, 5 LEDs and an 8-fold DIP switch. The relay outputs serve to control contactors of bus devices or other systems.
- Page 4 Operating instructions multisio 1D4-4RO ISO Relay output module LED display In KBR module bus scanning mode, all 4 output LEDs are flashing. In module detection mode, the output LEDs generate a running light. The displays are: LED1 for: Output relay 1 (A1) switched...
- Page 5 Operating instructions multisio 1D4-4RO ISO Function of the DIP switches Mode of operation For every output, the multisio 1D4-4RO ISO differentiates between the operating modes "normal" and "manual". Switching is performed via the DIP switches 5 to 8. The DIP switches are assigned to the outputs as follows: •...
- Page 6 500VA each, 2A, 250V and 50/60Hz Overvoltage category CAT II Module bus interface: Serial interface RS-485 Module bus connection RJ-12 for ready-made KBR system cable, max. length 30 m when placed accordingly Transmission speed 38400 Bps Bus protocol KBR module bus Display: 4x message...
- Page 7 / Déclarons sous notre seule responsabilité, ques le(s) produit(s) multisio 1D4-4RO ISO (Bezeichnung, Typ oder Modell oder Seriennummer / name, type or model or serial number / nom, type ou modèle, N° de lot ou de série) mit folgenden Europäischen Richtlinien übereinstimmt (übereinstimmen)
- Page 8 KBR GmbH KBR GmbH Abteilung Entwicklung Development Am Kiefernschlag 7 Am Kiefernschlag 7 D-91126 Schwabach D-91126 Schwabach / Germany Vorschläge: Suggestions: Korrekturen: Corrections: Betrifft Gerät: Device concerned Sollten Sie beim Lesen dieser Bedienungsanleitung oder If you come across misprints in this user manual or prin- Druckschrift auf Druckfehler gestoßen sein, bitten wir...
