Summary of Contents for KBR multisio D2-4AI-2
- Page 1 User manual Technical parameters Module with 4 analog inputs multisio D2-4AI-2 D2-4AI-2 Your partner for Your partner for network analysis System Englisch...
-
Page 2: Dear Customer
Introduction Dear customer Thank you for choosing a KBR product. To familiarize yourself with the operation and configuration of the device, we recommend that you read this manual carefully. This way, you will be able to use of the entire range of functions that this high-quality product has to offer. - Page 3 Introduction KBR multisio D2-4AI-2 This user manual contains notes that you have to observe for your personal safety and to prevent damage to the equipment. These notes are identifi ed by a warning sign or information symbol, depending on the degree of hazard they warn about.
-
Page 4: Installing The Device

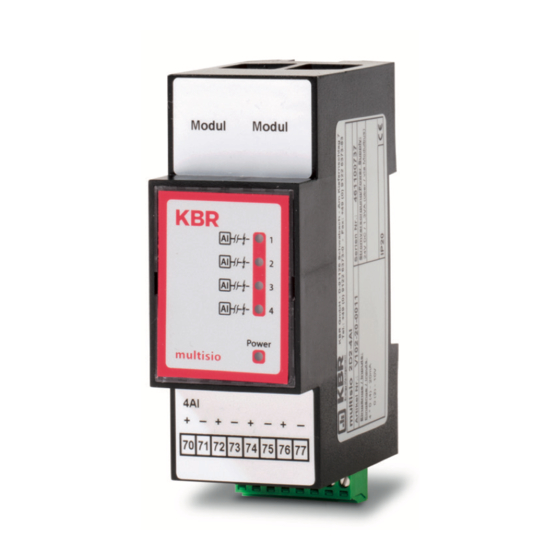

KBR multisio D2-4AI-2 Introduction Product liability You have purchased a high-quality product. Only components of the highest quality and maximum reliability are used. Each device is subject to long-term testing before it is delivered. For details on product liability, please refer to our general terms and conditions for electronic equipment. - Page 5 KBR multisio D2-4AI-2 Description of functions multisio D2-4AI-2 analog input module The hardware of the multisio D2-4AI-2 supports four analog inputs and five LEDs. With its four analog measuring inputs, it can measure currents from 0 to 20 mA and voltages from 0 to 10 V.
- Page 6 KBR multisio D2-4AI-2 Analog input module LED display In the scan mode of the KBR module bus, all 4 input LEDs fl ash. In module detection mode, the input LEDs fl ash in sequence. The LEDs represent: LED1 for input 1...
-
Page 7: Dip Switch Function
KBR multisio D2-4AI-2 Scan button function NOTE If the scan button is pressed briefl y, the module enters the scan mode. Scan-Button Scan-Taster ON SAB Illustrated switch setting: 1 2 3 4 OFF = white DIP-Switch ON = gray DIP-Schalter... -
Page 8: Technical Data
KBR multisio D2-4AI-2 Technical data: Power supply: Via module bus 24 V DC/approx. 1.3W Connection Modular connector RJ-12:6P6C Hardware inputs: 4 analog inputs: Measuring range 0/4 - 20 mA, 0/2 - 10 V Plug-in terminal, 8-pin Module bus interface: Serial interface... - Page 9 KBR multisio D2-4AI-2 Ambient conditions / electrical safety Ambient Standards DIN EN 60721-3-3/A2: 1997-07; conditions 3K5+3Z11; (IEC721-3-3; 3K5+3Z11) Operating tempe- K55 (-5°C …. +55°C) rature Humidity 5 % … 95 %, non-condensing Storage tempera- K55 (-25°C …. +70°C) ture Operating altitude...
- Page 10 KBR multisio D2-4AI-2 Notes Rev. 2.01...
- Page 11 Notes KBR multisio D2-4AI-2 Rev. 2.01...
- Page 12 KBR Kompensationsanlagenbau GmbH www.kbr.de Am Kiefernschlag 7 P +49 (0) 9122 6373 - 0 D-91126 Schwabach F +49 (0) 9122 6373 - 83 E info @ kbr.de...
