Summary of Contents for KBR multisio D2-4DO-2

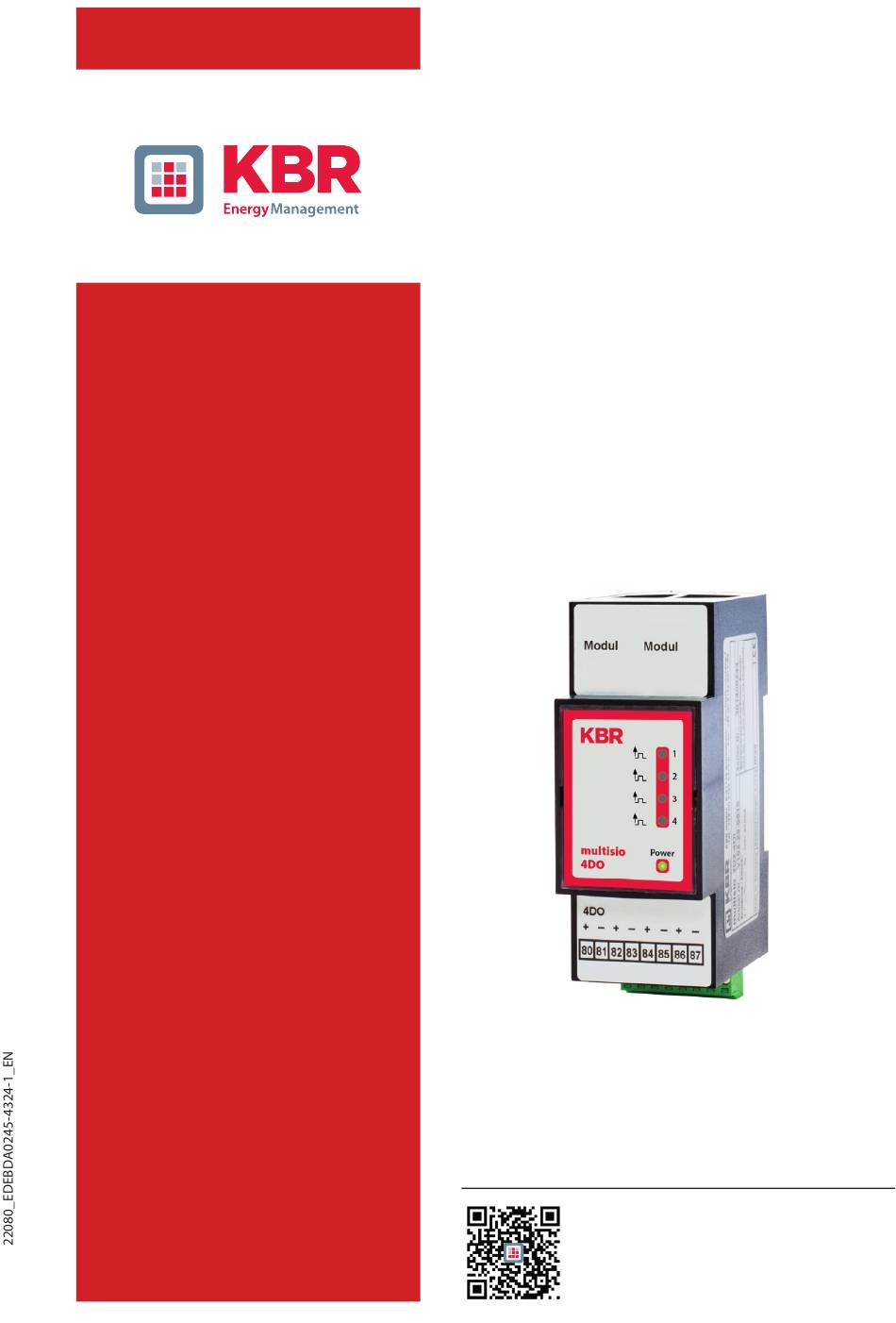

- Page 1 User manual Technical parameters Module with 4 digital outputs multisio D2-4DO-2 You partner for network analysis In our download centre you will fi nd System I English the appropriate instructions for KBR devices. https://www.kbr.de/en/download/ operating instructions/...
-
Page 2: Dear Customer
Introduction Dear customer Thank you for choosing a KBR product. To familiarize yourself with the operation and configuration of the device, we recommend that you read this manual carefully. This way, you will be able to use of the entire range of functions that this high-quality product has to offer. - Page 3 Introduction KBR multisio D2-4DO-2 This user manual contains notes that you have to observe for your personal safety and to prevent damage to the equipment. These notes are identifi ed by a warning sign or information symbol, depending on the degree of hazard they warn about.
-
Page 4: Installing The Device
KBR multisio D2-4DO-2 Introduction Product liability You have purchased a high-quality product. Only components of the highest quality and maximum reliability are used. Each device is subject to long-term testing before it is delivered. For details on product liability, please refer to our general terms and conditions for electronic equipment. - Page 5 KBR multisio D2-4DO-2 Description of functions D2-4DO-2 digital output module The multisio D2-4DO-2 hardware supports four digital outputs, 5 LEDs and an 8-position DIP switch. At its outputs, the module generates digital pulses as configured via the modu- le bus.
- Page 6 KBR multisio D2-4DO-2 Digital output module LED display In KBR module bus scanning mode, all 4 output LEDs are fl ashing. In the module detection mode, the output LEDs fl ash in sequence. The LEDs represent: LED1 for output 1...
-
Page 7: Dip Switch Function
KBR multisio D2-4DO-2 DIP switch function Operating mode For every output, the multisio D2-4DO-2 has the two operating modes "normal" and "manual", which are activated with DIP switches 5 to 8. The DIP switches are assigned to the outputs as follows:... -
Page 8: Dip Switch Settings
KBR multisio D2-4DO-2 DIP switch settings Explanation State operating Output 1 = normal operating mode — — Output 1 = manual operating mode passive/off Output 1 = manual operating mode active/on Output 2 = normal operating mode — — Output 2 = manual operating mode passive/off... -
Page 9: Technical Data
KBR multisio D2-4DO-2 Technical data: Power supply: Via module bus 24 V DC/approx. 1,3 W Connection Modular connector RJ-12:6P6C Hardware outputs: 4 digital outputs: - compatible max 35 V / 50 mA Plug-in terminal, 8-pin Module bus interface: Serial interface... - Page 10 KBR multisio D2-4DO-2 Ambient conditions / electrical safety Ambient Standards DIN EN 60721-3-3/A2: 1997-07; conditions 3K5+3Z11; (IEC721-3-3; 3K5+3Z11) Operating K55 (-5°C …. +55°C) temperature Humidity 5 % … 95 %, non-condensing Storage K55 (-25°C …. +70°C) temperature Operating altitude 0 to 2000 m above sea level...
- Page 11 Notes KBR multisio D2-4DO-2 Rev. 2.01...
- Page 12 KBR GmbH www.kbr.de Am Kiefernschlag 7 P +49 (0) 9122 6373 - 0 D-91126 Schwabach F +49 (0) 9122 6373 - 83 E info @ kbr.de...
