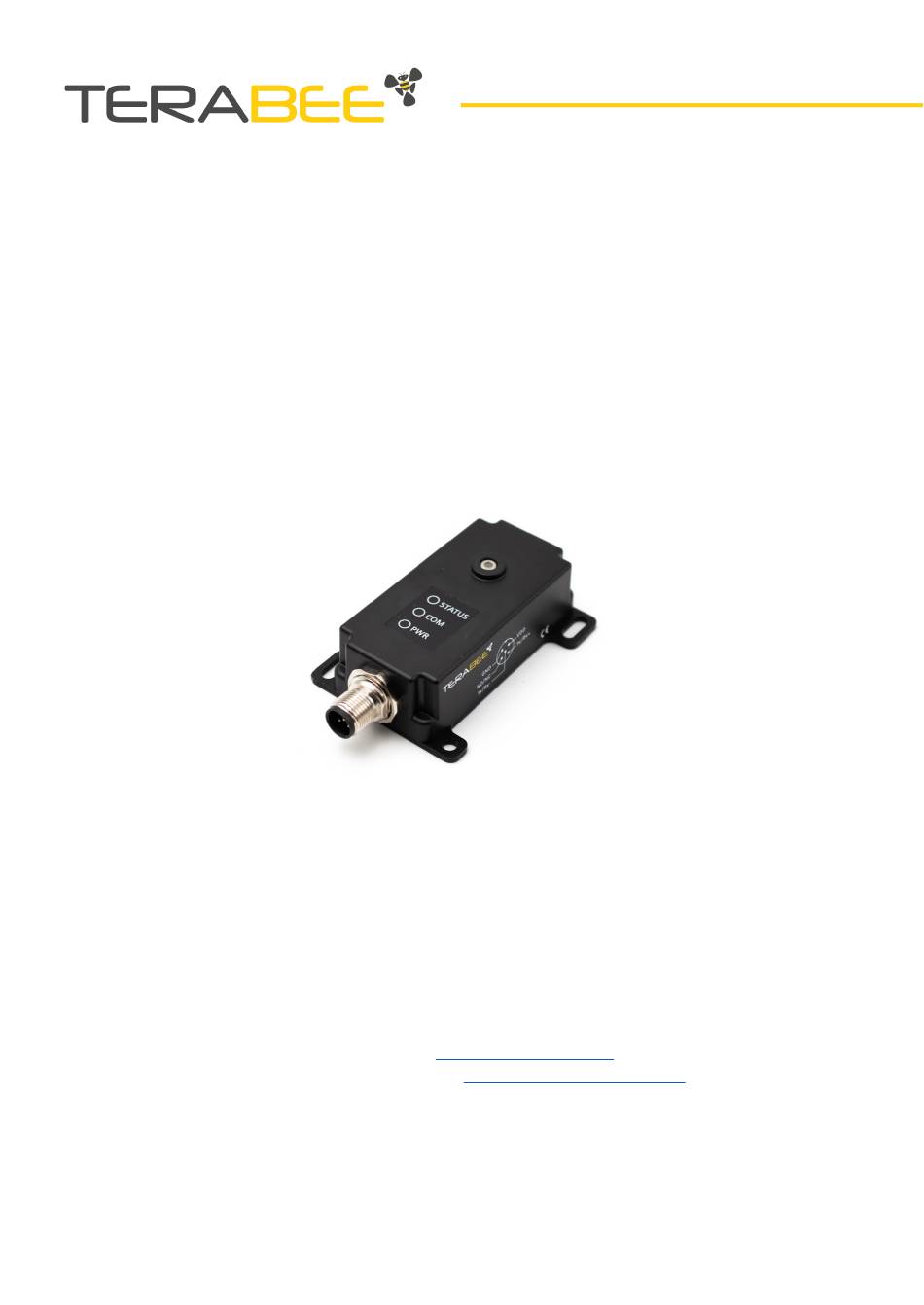

- Page 1 User Manual for Terabee IND-Thermal-90 graphical user interface (GUI) Technical support: support@terabee.com Sales and commercial support: terabee-sales@terabee.com...
-
Page 2: Table Of Contents
GUI installation and execution Windows Linux GUI structure Top level static menu Connection Tab Settings tab Application 1 page Application 2 page Application 3 page Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 2/19... -
Page 3: Introduction
1. Introduction The purpose of this document is to explain the usage of the IND-Thermal-90 thermal camera Graphical User Interface (GUI) for PC connection. Such a GUI is designed to help the customer get experience with the camera. 2. Connection to PC... - Page 4 The following summarizes the steps to be taken for connecting the IND-Thermal-90 camera to a PC. Step 1 Connect the M12 cable to the sensors M12, 5-pin connector. Step 2 Connect the data lines of the M12 cable to the RS485-to-USB adapter. See wiring instructions in Table 1.
-
Page 5: Gui Installation And Execution
Execute the .exe file and follow the installation instructions. The installer will create a Start Menu shortcut for easy access by accessing Start -> type IND-Thermal-90 -> Click on GUI icon. Alternatively, the executable can be found under the default installation path (see Figure 2), usually C:\Program Files (x86)\Terabee\IND-Thermal-90\Application\. -
Page 6: Gui Structure
/home/%user%/Terabee/IND-Thermal-90, where %user% is the name of the current logged in user. To start the application, open a new terminal in the IND-Thermal-90 folder and type ./Terabee_IND-Thermal-90.sh. This will start the software. Alternatively, type $HOME/Terabee/IND-Thermal-90/Terabee_IND-Thermal-90.sh in a terminal window from any other location. -
Page 7: Top Level Static Menu
GUI and its license. It contains information about third party libraries as well. ○ Product page - pressing this will open the default web browser to the product page of the Terabee IND-Thermal-90 ● Tools ○ Factory reset - pressing this will reset the currently selected sensor to the factory default settings. -
Page 8: Connection Tab
19200. ● Parity - this scroll down menu selects the parity of the connection. This selection needs to match the parity of the IND-Thermal-90 sensor. By default, this value is Even. ● Connect - once the settings are correctly selected, pressing the button Connect will open the communication port to the RS485 network. -
Page 9: Settings Tab
● NPN/PNP select - this scroll down menu defines the type of circuit used to actuate the pin. In an NPN circuit (also known as a sinking output) the pin will short to Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 9/19... - Page 10 1 (100 in this box). For best results, this value should match the emissivity of the material being measured. Changing this value corresponds to writing to the Holding Register at address 9 (IND-Thermal-90 emissivity). Press ENTER to save the value.
-
Page 11: Application 1 Page
An overlay will be drawn over the image highlighting the area scanned, as shown in Figure 7. Changing this setting Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 11/19... - Page 12 ○ Set new thresholds - press this button to send the limit values currently shown in the Min[°C] and Max[°C] fields to the device. ● Measurements ○ Temperature[°C] Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 12/19...
- Page 13 While this logic is active, all other elements of the GUI window are disabled. Press again this button to stop the infinite cycle and enable navigation through the interface. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 13/19...
-
Page 14: Application 2 Page
Holding Register at address 10 (Application 2 centered area size). The white contour will update with the next image request, done by pressing the Update measurements + image button. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 14/19... - Page 15 (measured min/max pixel temperatures and coordinates, average temperature, alarm status) and the image. This is a slow operation and requires over 10 Modbus requests. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 15/19...
- Page 16 While this logic is active, all other elements of the GUI window are disabled. Press again this button to stop the infinite cycle and enable navigation through the interface. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 16/19...
-
Page 17: Application 3 Page
Celsius. The temperature values are taken from the Input Registers starting at address 25 up to address 280 (Application 3 ROI temperature). Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 17/19... - Page 18 ● Counter type - changing this parameter will alter the behavior of the counter, switching it between Bidirectional and Unidirectional. This change corresponds to Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 18/19...
- Page 19 While this logic is active, all other elements of the GUI window are disabled. Press again this button to stop the infinite cycle and enable navigation through the interface. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 19/19...
