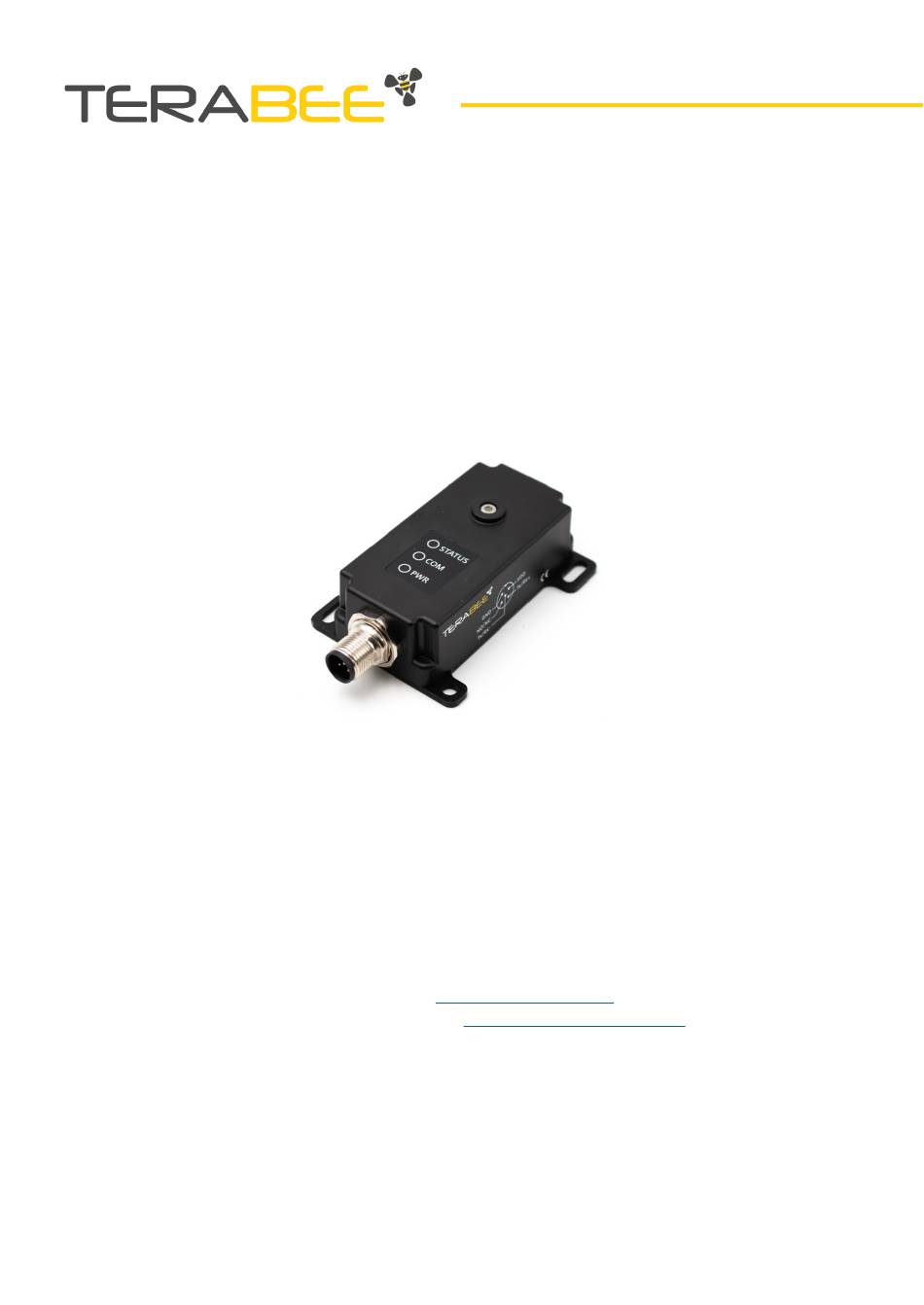

  • Page 1 User Manual for Terabee IND-Thermal-90 Technical support: support@terabee.com Sales and commercial support: terabee-sales@terabee.com...

  • Page 2: Table Of Contents

    Measurement units Communication Input registers (read-only) Registers mapping Configurable camera parameters (holding registers) Device address settings (slave address) RS485 parameters Application 1 hot threshold Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 2/50...

  • Page 3: Application

    Connection example: input to a PLC PNP connection NPN connection Connection to PC (Windows) Hardware setup Software setup MODBUS Doctor software configuration Basic IND-Thermal-90 camera parameter configuration Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 3/50...
  • Page 4 Read pixel temperature data example Switching to cycle mode Compliance Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 4/50...

  • Page 5: Introduction

    1.1. About Terabee IND-Thermal-90 The Terabee IND-Thermal-90 thermal camera offers 32 x 32 pixel resolution thermal measurement. The rugged IP65 enclosure ensures dust-proof and water-resistant operation, while the camera’s compact form-factor (75 g) allows installation in places not possible with larger and heavier cameras.

  • Page 6: Technical Specifications

    1.2. Technical specifications Table 1 - Technical specifications of Terabee IND-Thermal-90 Product code TB-IND-T90 Performance Detection principle Thermopile Sensor resolution 32 × 32 pixels Field Of View (FOV) 90°× 90° Frame rate 7 Hz Measurable temperature range -20 °C to 670 °C Temperature accuracy ±2 °C for targets below 100 °C,...

  • Page 7: Symbols Explanation And Further Information

    The device is electro-static sensitive if touched on the camera (sensor) metallic part (see Figure 2). However it automatically recovers after disturbance occurs. Figure 2. Focus on the electro-static sensitive camera (sensor) metallic part Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 7/50...

  • Page 8: Mechanical Integration

    2. Mechanical integration 2.1. Mechanical design Terabee IND-Thermal-90 thermal camera offers an ABS housing and an aluminium backplate (part of camera housing) for robust mounting. Figure 3 illustrates external dimensions of the distance camera. Figure 3. External dimensions of Terabee IND-Thermal-90 2.2.
  • Page 9 The bottom casing part includes four slots for mounting the camera using standard M4 screws. The following methods can be used to mount the Terabee IND-Thermal-90: 1. Front-panel mount using the long M4 screw slots (Figure 4) 2. Back-panel mount using the 2mm ledge on the front side of the camera (Figure 5) The first solution allows for easy surface attachment and rapid evaluation of the camera.

  • Page 10: Operating Indicators

    Table 2 - Optional mounting brackets compatible with IND-Thermal-90 Accessory Terabee SKU Link 90 degrees mounting bracket TB-90MB-IND-TOF-1 Link Adjustable mounting bracket for TB-AMB-IND Link Terabee industrial sensor 2.3. Operating indicators Onboard multi-color LEDs provide a visual confirmation of temperature threshold breach, camera power and connection status.

  • Page 11: M12 Connector Pinout

    2.4. M12 connector pinout Terabee IND-Thermal-90 uses an M12 A-coded male connector, 5 pins. Figure 7 and Table5 provide an overview of the connector pinout. Figure 7. M12, 5-pin connector pinout layout...

  • Page 12: Dc Electrical Characteristics

    (typical) Voltage output DC 24 V Digital output levels NO/NC (in PNP/NPN) Current consumption 450 mA At V = 24 V DC, unfused Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 12/50...

  • Page 13: Camera Coordinate System

    3. Camera coordinate system The IND-Thermal-90 coordinate system is defined in Figure 7. The camera is always vertically mounted (M12 connector on the base), as per picture. The z-axis is to be considered as the distance from the target. Terabee IND-Thermal-90 is a passive optical temperature measurement camera that uses thermopile principle.

  • Page 14: Settings

    4. Settings 4.1. Connectivity to RS485 bus Figure 8 shows an example of connection in a Modbus of multiple (N) IND-Thermal-90 cameras. Figure 9. Connection of multiple IND-Thermal-90 cameras on RS485 network. External 120 Ohm termination resistors have to be added for signal stability at the beginning and end of the transmission line.

  • Page 15: Alarm

    Select Slave address ● When the IND-Thermal-90 is connected for the first time (from default settings), it is important to match the master network speed to the camera default baud rate (19.2 kbps) and parity (even) and connect to the camera. Afterwards it is possible to update the specific camera connection parameters.

  • Page 16: Embedded Applications

    Programmable Logic Controller (PLC), to inquire the current minimum and maximum temperatures. Table 6 - Embedded Applications Application 1 Application 2 Application 3 Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 16/50...
  • Page 17 (e.g. bricks) pass on conveyor belts Temperature monitoring (in the center of the Field of electrical cabinets of View) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 17/50...

  • Page 18: Alarm Logic

    The alarm logic is represented in Figure 10. Modbus registers content and addresses (addr) are summarized in the Communication Section of this manual. Figure 10. Logic for alarm of IND-Thermal-90. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN)

  • Page 19: Application

    20 × 20 pixels. N.B.: the camera will always acquire the × full 32 32 data frame in case the customer is interested in full image reconstruction. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 19/50...
  • Page 20 250 (ms) Application 1 (cold threshold) 2732 dK (0.05 °C) Holding register Application 1 (hot threshold) 3082 dK (35.05 °C) Temperature choice 1 (hot) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 20/50...
  • Page 21 3281 dK (54.95 °C) 1559 Application 1 maximum YX coordinates (Y = 6, X = 23) NO/NC active Alarm triggered Discrete input Application 1 Alarm triggered Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 21/50...

  • Page 22: Description

    For stable alarm readings, it is suggested to consider a minimum difference of 10 °C (190 dK) between minimum and maximum thresholds. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 22/50...
  • Page 23 Modbus Register Address Value Application 2 centered area Input register 3231dK (49.95 °C) temperature NO/NC active Alarm triggered Discrete input Application 2 Alarm triggered Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 23/50...

  • Page 24: Description

    Does not require resetting. For stable alarm readings, it is suggested to consider a minimum difference of 10 °C (190 dK) between minimum and maximum thresholds. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 24/50...
  • Page 25 = 56°C and ROI2 measured = 20 °C ⇒ Δ (ROI1) = |56-50| °C = 6°C, Δ(ROI2) = |20-30|°C = 10°C ⇒ ROI2 alarm is shown and published in specific (highest delta) Modbus register (value and coordinate). Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 25/50...
  • Page 26 Input register Application 3 ROI temperature 3161 dK (42.95 °C) Application 3 hotspot counter Highest delta breach hotspot temperature 3161 dK (42.95 °C) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 26/50...
  • Page 27 Highest delta breach hotspot coordinates as expressed by registers “Application 3 hotspot location” NO/NC active Alarm triggered Discrete input Application 3 Alarm triggered Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 27/50...

  • Page 28: Measurement Units

    ‘float’. Given the camera accuracy (in the order of 1 °C), a rounding to integer could be suggestable for some operations. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 28/50...

  • Page 29: Communication

    If ROI size is 2 x 2, all the 256 bits of the 16 registers will represent ‘hotspot’ (1) or ‘no ● hotspot’ (0) conditions for the related 256 ROIs. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 29/50...

  • Page 30: Registers Mapping

    Figure 15 shows the pixel mapping criterium (value in Modbus register → pixel temperature) in order to produce a heatmap (see eg Figures 11, 12, 14) in the reference coordinates frame of Figure 7. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 30/50...

  • Page 31: Configurable Camera Parameters (Holding Registers)

    This parameter holds the device address. For changing this parameter, a broadcast command must be sent. For that, please use the following configuration: Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 31/50...

  • Page 32: Rs485 Parameters

    For example: For setting baud rate of 19200 with the even parity, take the hexadecimal values from the above tables and perform a logic OR operation on them and convert to decimal numbers as shown in below. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 32/50...

  • Page 33: Application 1 Hot Threshold

    TEMPERATURE CHOICE Slave ID : 1 to 247 Address location Value : 2531 (-20°C) to 9431 (+670°C) value in dK (decikelvin), default 2731 (0°C) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 33/50...

  • Page 34: Application 3 Hot Threshold

    This parameter defines the size of centered area as x*x pixels which is used in Application 2. Where x is the value in the register used. Slave ID : 1 to 247 Address location : 10 Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 34/50...

  • Page 35: Application 2 Moving Average Size

    3 = Both cold & hot threshold, which makes a hot/cold threshold value to trigger the Application. Slave ID : 1 to 247 Address location : 13 Value : 1 to 3 (default 1) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 35/50...

  • Page 36: Configurable Flags (Coil Inputs)

    In case of persistence of the alarm condition, the NO/NC output will switch periodically for the length of the alarm and stop for a short time (typically 50-100 ms) in between. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 36/50...

  • Page 37: Npn/Pnp Selected

    (1) into a coldspot (0). Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 37/50...

  • Page 38: Application 2 (Alarm) Enabled/Disabled

    = 0 (OFF), the pixel values coming from the sensor are Master reading continuously updated on the related Modbus registers (see last row in Table 18). Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 38/50...

  • Page 39: Asynchronous Reconstruction Of Frame By Using 'Master Reading' Flag

    = 0. The flow-chart in Figure 15 shows the process. Master reading NB IND-Thermal-90 does not feature a streaming option, thus the frame reconstruction is asynchronous only. The three Applications will continue to run on the updated frames, even if ‘Master reading’ is set to 1.

  • Page 40: Application 1 Limited Fov Flag

    1 and 3. The default setting value is 0 (OFF). Slave ID : 1 to 247 Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 40/50...

  • Page 41: Clear No/Nc

    The uni-directional counter does not increment anymore when it reaches the value of 65535. Therefore, in this situation, it must be reset to restart counting (from 0). Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 41/50...

  • Page 42: Application 1 Alarm Triggered

    The camera will reply via RS485 interface, Modbus-like format (its own address + 0xFF + CRC16-Modbus) with a slave ID 1. The STATUS LED will flash 10 times alternating red/green colors as a visual confirmation. Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 42/50...

  • Page 43: Connection Example: Input To A Plc

    8. Connection example: input to a PLC 8.1. PNP connection Figure 17. Example of PNP connection (top) for NO/NC schematics (bottom) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 43/50...

  • Page 44: Npn Connection

    8.2. NPN connection Figure 18. Example of NPN connection (top) for NO/NC schematics (bottom) Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 44/50...

  • Page 45: Connection To Pc (Windows)

    MODBUS Doctor application (v2.7) and examples on executing commands for modifying some of the basic sensor parameters. 9.1. Hardware setup Figure 19 illustrates connection logic between the IND-Thermal-90 sensor and a PC, and the following components are required for a complete setup: ● 1 Terabee IND-Thermal-90 sensor ×...
  • Page 46 Connect the data lines of the M12 cable to the RS485-to-USB adapter. See wiring instructions in Table 19. Table 19 - Wiring connection between IND-Thermal-90 and RS485-to-USB adapter M12 cable Specific for RS485-to-USB adapter here Tx/Rx+ (pin 4) Tx/Rx- (pin 5)

  • Page 47: Software Setup

    9.2. Software setup As the Terabee IND-Thermal-90 camera uses the MODBUS RTU protocol for data communication via RS485 interface, for operation on PC we recommend to work with MODBUS Doctor freeware utility software (KScada). To do so, please follow the...

  • Page 48: Basic Ind-Thermal-90 Camera Parameter Configuration

    Figure 21. Status after pressing “Connection” 9.3. Basic IND-Thermal-90 camera parameter configuration To learn more about all configurable sensor parameters (inputs/outputs), please refer to Communication Section of this manual. 9.3.1. Read pixel temperature data example The MODBUS protocol uses a master/slave architecture of communication where one device or process has uni-directional control over one or more devices.
  • Page 49 Modbus Doctor window. Then click “Reading” and the software will now acquire new data every 100 ms (default value). Figure 23. Read temperature data in cycle mode Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 49/50...
  • Page 50 10. Compliance Figure 24. EU Declaration of conformity with compliance to standards and used directives Copyright © Terabee 2021 Terabee, 90 Rue Henri Fabre 01630, St Genis-Pouilly, France (next to CERN) 50/50...
