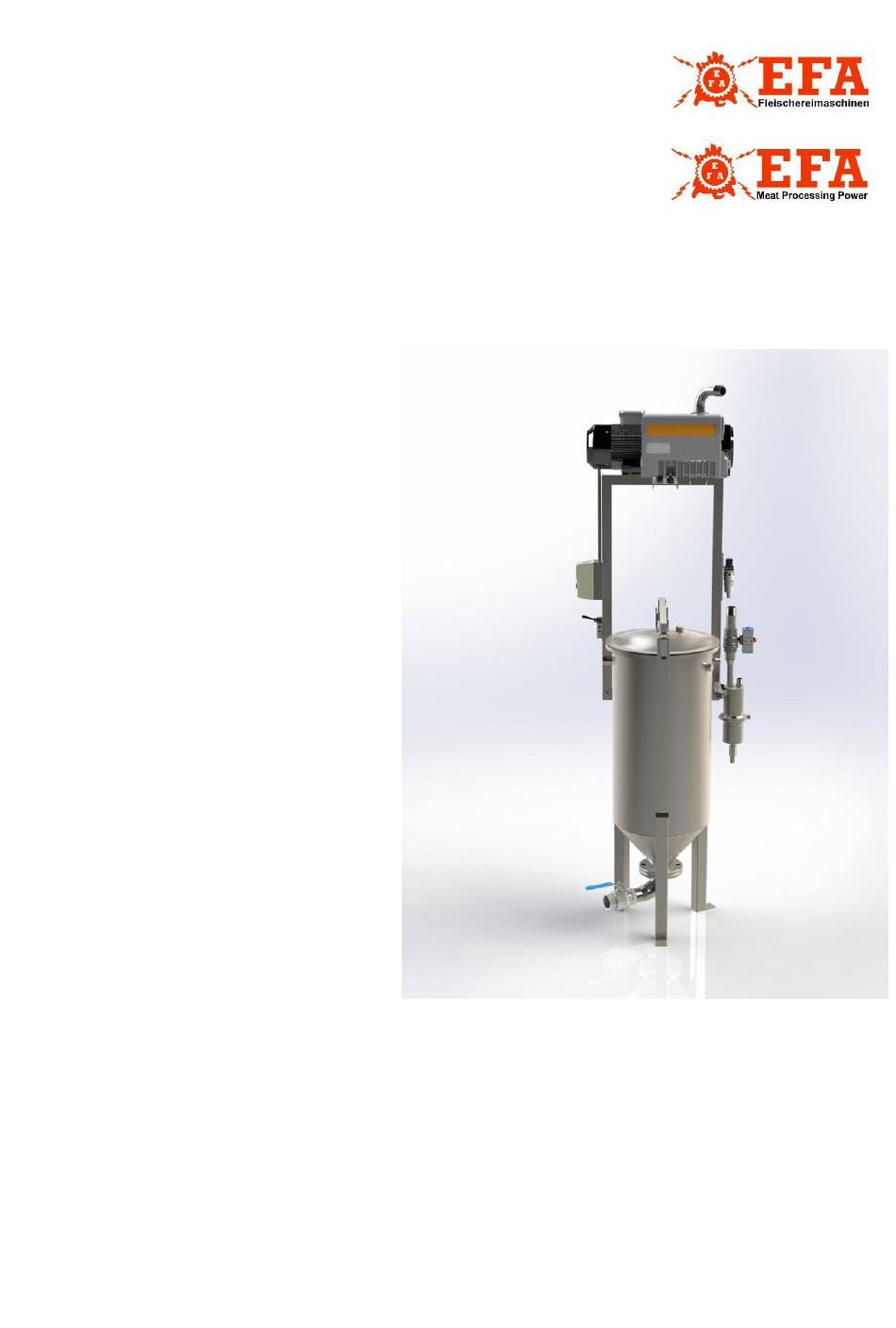

- Page 1 Operating instructions Maintenance instructions Spare part list EFA Vacuum unit Type EFA 202-204 Important Informations: Please forward these operating instructions to your operating personnel! Schmid & Wezel Execution Page 1 D 75433 Maulbronn 01.2021...
-
Page 2: Table Of Contents
3.2.4 Draining....................5 3.2.5 Pneumatic Valve ..................5 3.2.6 Vacuum Control Valve ................5 Assembly .....................6 4.1 Transport ....................6 4.2 Before installing the Vacuum Extraction System for EFA 202 .........6 4.3 Set up ......................7 Cleaning and maintenance ................7 5.1 Receiving container..................7 5.2 Air filter.....................7 5.3 Refill oil.....................7... -
Page 3: Use, Scope Of Delivery, Accessories
Text passages marked with this Only use original EFA accessories. The symbol provide you with important use of other tools or accessories can information and useful tips. be dangerous for you. Failure to use... -
Page 4: Behavior Of The Workspace
present and functioning properly. The limit values for pressures and temperatures must be permanently marked and must not be exceeded or fallen short of. The warning and safety notices on the equipment must be observed and kept in a legible condition at all times. 2.2 Behavior of the workspace ... -
Page 5: Operation
3.2 Operation needed for operate, he can switch OFF (lower position) the pneumatic valve. Only use the vacuum unit for the extraction of animal excrement. All cleaning agents for stainless steel equipment are suitable for cleaning the receptacle. 3.2.1 Daily controls ... -
Page 6: Assembly
4. Assembly 12Nm. 4.1 Transport Connect the hose (3) and secure it with the enclosed clamps. It is strictly forbidden to stand Connect the EFA 202 with the tank of Vacuum underneath a lifted load! Falling Extraction System with appropriate loads can cause extremely serious couplings (tank side 1") and a hose. -
Page 7: Set Up
phases (e.g. PH1 and PH2) in the plug. Always lay the drain line with a downward slope from the vacuum NOTICE! unit. This operation should be done only by qualified electrician. Connect the pneumatic hose to the pressure Cleaning and maintenance reducer. -
Page 8: Oil Change
the sight glass, add oil. Proceed as follows: dirt. If necessary, blow out the fan guards with compressed air. Open the oil filler plug. For further maintenance Add oil until the oil level reaches the instructions, refer to the enclosed MAX mark on the oil sight glass. -
Page 9: Troubleshooting
5.7 Troubleshooting Malfunction Possible reason Remediation Vacuum unit does not run Power supply interrupted. Check the mains connection Level control indicator is and fuses. Notify the customer service if none of the above errors are present. Motor protection tripped due to Open the switch box (12) and overload of vacuum pump (3). -
Page 10: Appendix
A. Appendix A.1 Technical Data Description Value Voltage 3 x 400 V /50 Hz / N / PE Current 3,2A Rated power 0,75kW Flow rate 25 m Contents of the receptacle 90 L Mass (net) 115 kg Ambient temperature +5°C - +35°C Schmid &... -
Page 11: Spare Part List
A.2 Spare part list Schmid & Wezel Execution Page 11 D 75433 Maulbronn 01.2021... - Page 12 Schmid & Wezel Execution Page 12 D 75433 Maulbronn 01.2021...
- Page 13 Schmid & Wezel Execution Page 13 D 75433 Maulbronn 01.2021...
- Page 14 Schmid & Wezel Execution Page 14 D 75433 Maulbronn 01.2021...
- Page 15 Schmid & Wezel Execution Page 15 D 75433 Maulbronn 01.2021...
- Page 16 Page Part number Part Index Tank Vacuum separator Hose Z084015 Pneumatic hose Z084194 Pneumatic hose Z084194 Pneumatic manual valve Z083927 Pneumatic exhaust filter Z084193 Vacuum control valve Z093583 Vacuum manometer Z093543 Vacuum pump Z084014 Main switch Z084018 Pneumatic manual valve Z083927 Pneumatic exhaust filter Z084193...
-
Page 17: Schematics Electrical And Pneumatic
A.2 Schematics electrical and pneumatic Schmid & Wezel Execution Page 17 D 75433 Maulbronn 01.2021... - Page 18 Chorzów, 19.01.2021 DECLARATION OF CONFORMITY 2006/42/EC MACHINERY Manufacturer: Weindich Sp. J., ul. Adamieckiego 8, 41-503 Chorzów Declare that the product described below is in conformity with the relevant provisions of the following directives and the National Laws and Regulations adopting these directives.
