Names Of Parts And Their Functions; Power Lamp; Access Lamp - JVC HC-CW1F Instructions Manual

1
USB cable connector
Connect the provided USB cable.
2
SD Memory Card/MultiMediaCard insertion slot
Insert the SD Memory Card or MultiMediaCard with the metal terminal downward.
3
SmartMedia insertion slot
Insert the SmartMedia with the metal terminal upward.
Note
SmartMedia accepts both 5 V and 3.3 V.
4
PC Card/CompactFlash insertion slot
Insert the PC Card/CompactFlash with the face up. Before inserting the
CompactFlash, first attach the provided PCMCIA TYPE II adapter.
Note
When a commercially available Memory Stick Adapter (PCMCIA TYPE II) is
used, a Memory Stick can be inserted into this slot.
5

POWER LAMP

Lights green when this unit is connected to a PC and is ready for use. The unit
cannot be used if the green light goes out.
6

ACCESS LAMP

Lights/blinks red when the Memory Card is being accessed. Do not remove the
card while this lamp lights/blinks. Doing so may damage the data on the card
and may also cause the unit to malfunction.
7
PC Card Eject button
Press to remove the card from the PC Card/CompactFlash insertion slot. The card
is ejected about halfway. Remove the card completely by hand.
8
Downloaded from:

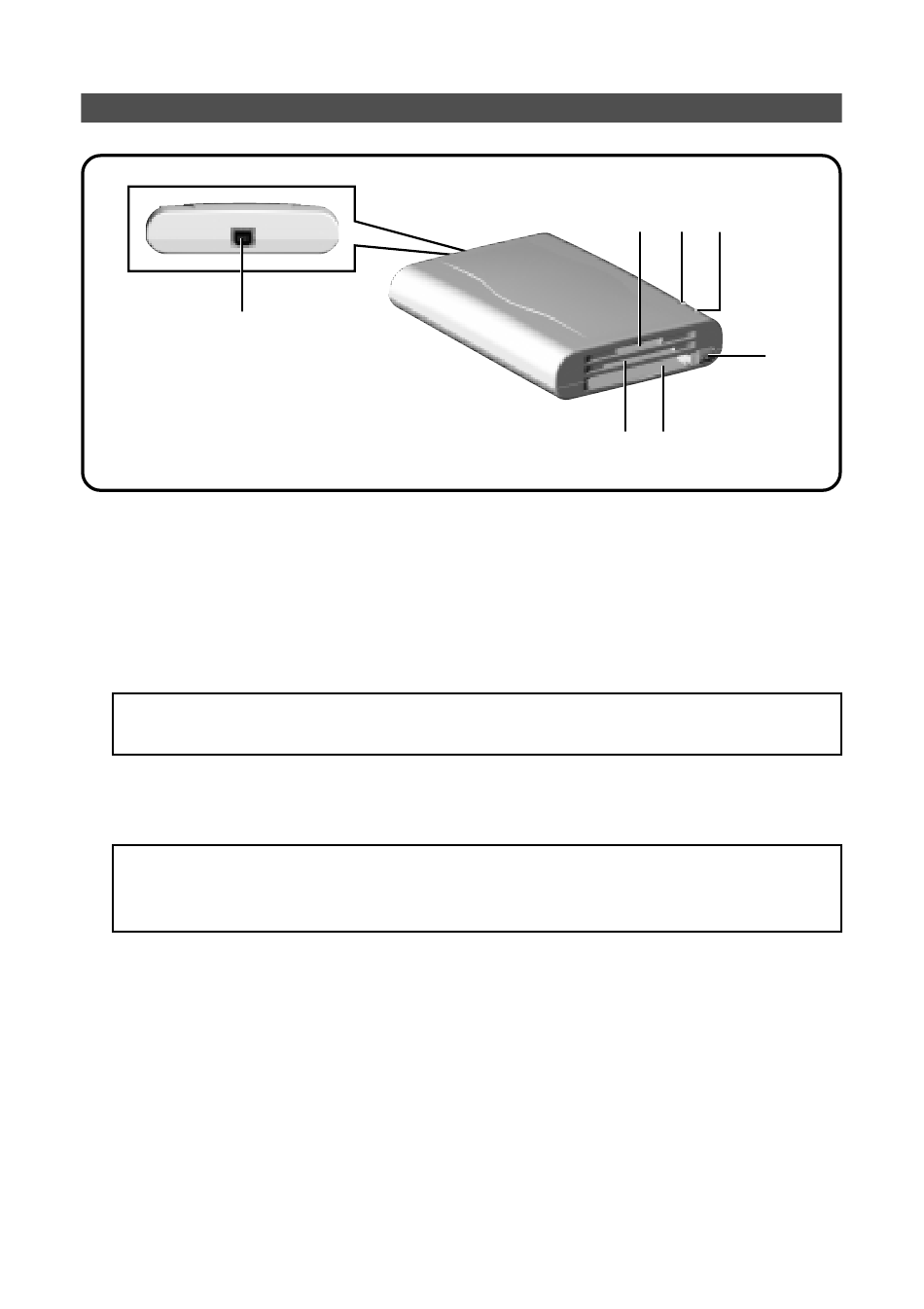

NAMES OF PARTS AND THEIR FUNCTIONS
