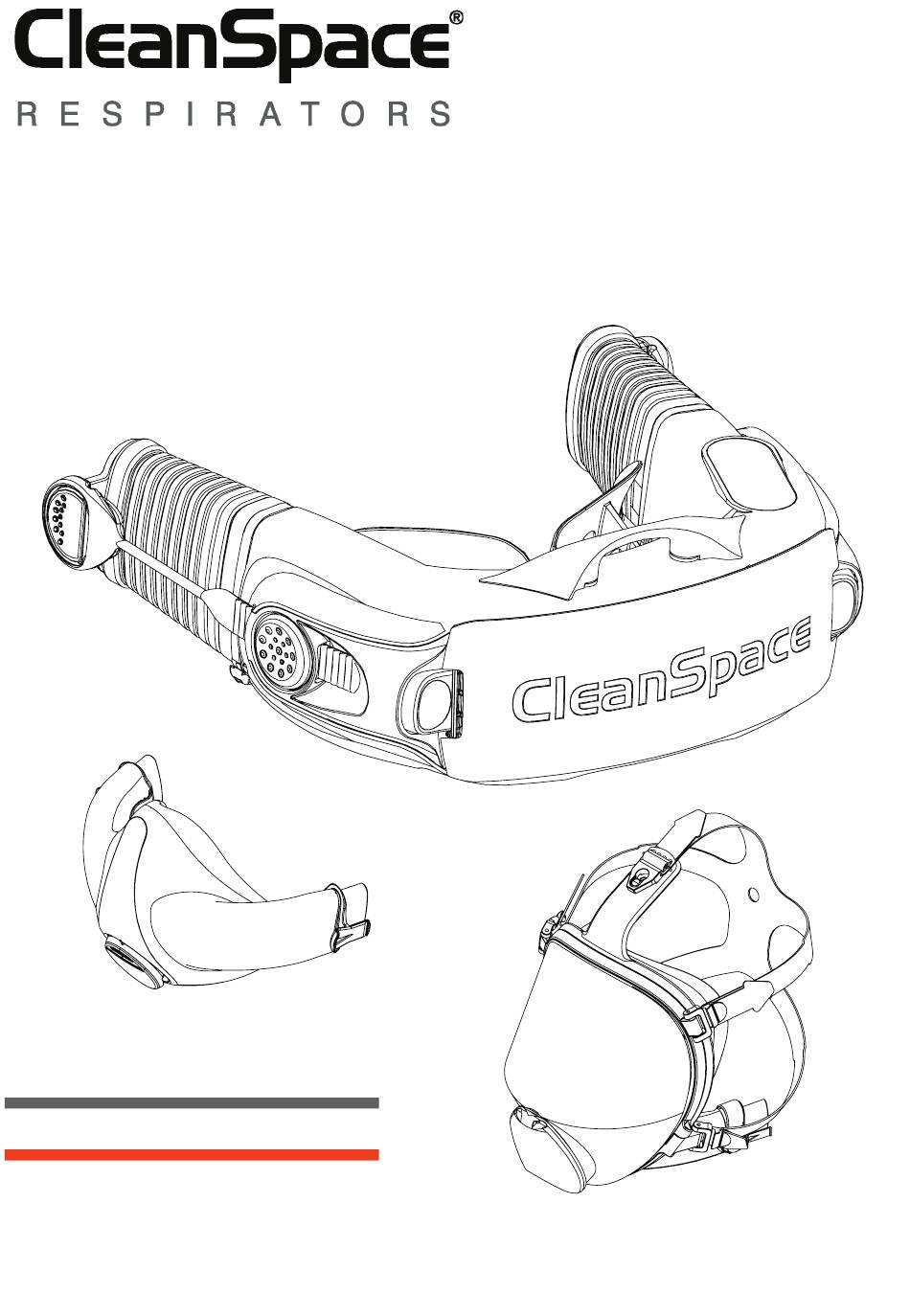

USER
INSTRUCTIONS
CleanSpace PRO
CleanSpace ULTRA
CleanSpace Technology Pty Ltd
ABN 24 146 453 554
T: +61 2 8436 4000
CST1000
CST1010
Unit 5, 39 Herbert Street
St. Leonards NSW 2065 Australia
www.cleanspacetechnology.com
sales@cleanspacetechnology.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CleanSpace PRO

Summary of Contents for CleanSpace PRO

  • Page 1 USER INSTRUCTIONS CleanSpace PRO CST1000 CleanSpace ULTRA CST1010 CleanSpace Technology Pty Ltd ABN 24 146 453 554 Unit 5, 39 Herbert Street www.cleanspacetechnology.com T: +61 2 8436 4000 St. Leonards NSW 2065 Australia sales@cleanspacetechnology.com...

  • Page 2: Table Of Contents

    Recalibration ..................................15 3.4. Flow Test ....................................16 Donning the Half Mask CleanSpace Respirator ....................... 17 Step 1 – Fit the Neck Support to the Power Unit ............................ 17 Step 2 – Fit the Head Harness to the Half Mask ............................. 17 Step 3 –...

  • Page 3: Warnings & Limitations

    Before use, the wearer must read and understand the entirety of these User Instructions including all warnings, all additional information relating to the appropriate use of CleanSpace filters and accessories and all relevant information documented in national standards. If you have questions regarding this system, please contact CleanSpace Customer Service on +612 8436 4000 or e-mail support@cleanspacetechnology.com.

  • Page 4: Limitations

     CleanSpace PRO and CleanSpace ULTRA are not intrinsically safe. Do not use in flammable or explosive atmospheres. Doing so may result in injury or death. ...
  • Page 5 The respirator will stop functioning if its internal temperature rises above 60°C or falls below -10°C. If using at the respirator at an altitude greater than 200m above sea level or less than 0m, use the CleanSpace Smart App to set the operating altitude before use.

  • Page 6: Manufacturers Minimum Design Condition (Mmdc)

    The fan produces enough flow to ensure that the pressure inside the mask is positive, which helps to provide a high level of protection to the user. CleanSpace Respirators are breath responsive, which means that they provide more flow during inhalation and less flow during exhalation whilst maintaining positive pressure in the mask.

  • Page 8: Controls And Indicators

    Mask AirClip Mask Release Button Power Unit AirClip Bellow Adjust Button Filter Release Button Power Unit Hoop Fit Test Port Exhalation Valve Rain Cover Sensing Ball Port 2.2. CONTROLS AND INDICATORS 2.2.1 KEYPAD A keypad is located on the top of the Power Unit. It contains all controls and indicators.
  • Page 9 2.2.3 BATTERY CHARGE INDICATOR A Battery Charge Indicator is located on the keypad of all CleanSpace Respirators. It is comprised of three green lights. The battery is fully charged when the charger is connected to the Power Unit and all three lights are solid green. The battery charge and approximate useful time remaining when the CleanSpace Respirator is NOT on charge are shown below.

  • Page 10: Alarms

    2.2.4 FLOW TEST BUTTON The Flow Test measures the rate of flow produced by the CleanSpace Respirator to ensure it can deliver a minimum design flow of 120 l/min. When CleanSpace Respirators are in STANDBY Mode, pressing the Flow Test Button initiates the Flow Test.

  • Page 11: Battery

    CleanSpace Respirators have an internal lithium ion (Li-ion) battery. Lithium ion (Li-ion) batteries have the highest energy density of all battery types and are widely used in portable electronic devices. CleanSpace Respirators use quality Li-ion batteries and are designed to be viable over a minimum of 500 complete charge and discharge cycles while still maintaining at least 70% of their specified full capacity.

  • Page 12: Filters

    Always change the filter outside of the contaminated area and with the respirator doffed.  CleanSpace filter media cannot be cleaned. Cleaning the filter media may cause damage. The filter media is contained within a filter case. The filter case may be wiped with a dry cloth free of chemicals.

  • Page 13: Accessories

    To remove a used filter, simply press down on either Filter Release Button (refer to Section 2.1) and the filter will be released. To install a new filter, align the filter so that the ‘CleanSpace’ text faces up (in the same direction as the keypad) and push the filter towards the Power Unit until you hear a click.

  • Page 14: Before Donning The Cleanspace Respirator

    Face Length Use the tables below to determine which CleanSpace Half or Full-Face Mask is likely to provide the best fit for your face. *If the medium mask fails initially, the mask fitting specialist will determine whether to try the small or the large mask next.

  • Page 15: Pre-Use Inspection

    3.1.3 HEAD HARNESS FIT The Head Harness is a required component when using the CleanSpace Respirator Half Mask System. It is used to support the weight of the Power Unit and to ensure a good, comfortable fit. The harness has a rear strap that can be adjusted by the user to fit a variety of different head sizes.

  • Page 16: Flow Test

    Do not use the respirator until a new filter has been fitted and/or the battery has been fully charged and the test has been repeated with a PASS result. If the respirator fails the test but the filter is new and the battery is fully charged, contact CleanSpace Technology and do not use the respirator until it has been evaluated.

  • Page 17: Donning The Half Mask Cleanspace Respirator

    Head Harness are the same size or setting that you used for your last successful fit test. Ensure a clean filter is fitted to the Power Unit. Important: Read through this entire chapter before beginning to don the CleanSpace Respirator. STEP 1 – FIT THE NECK SUPPORT TO THE POWER UNIT The Neck Support has circular openings at each end which snap over buttons on the Power Unit case.

  • Page 18: Step 4 - Switch The Power Unit To Standby Mode

    STEP 4 – SWITCH THE POWER UNIT TO STANDBY MODE Press the Power Button once to switch the Power Unit to STANDBY Mode from OFF Mode. The Battery Charge Indicator should display the level of charge. The respirator should be fully charged before use. STEP 5 –...

  • Page 19: Step 6 - Adjust The Respirator

    STEP 6 – ADJUST THE RESPIRATOR If required, the CleanSpace Respirator can be adjusted after donning by either tightening the bellows or tightening the harness. Tighten the bellows by placing one hand on the back of the Power Unit and one hand over the front of the mask.

  • Page 20: Donning The Full-Face Mask Cleanspace Respirator

    Ensure a clean filter is fitted to the Power Unit. Important: Read through this entire chapter before beginning to don the CleanSpace Respirator. STEP 1 – FIT THE NECK SUPPORT TO THE POWER UNIT The Neck Support has circular openings at each end which snap over buttons on the Power Unit case.

  • Page 21: Step 3 - Complete A Mask Seal Check

    STEP 3 – COMPLETE A MASK SEAL CHECK A mask seal check is used to ensure that an adequate seal is achieved each time the respirator is donned. To complete a seal check: Block both mask air inlets with your thumbs. Breathe in.

  • Page 22: Step 6 - Adjust The Respirator

    STEP 6 – ADJUST THE RESPIRATOR If required, the CleanSpace Respirator can be adjusted by tightening the bellows or the harness back strap. Tighten the bellows by placing one hand on the back of the Power Unit and one hand over the front of the mask.

  • Page 23: Entering The Contaminated Area

    6.4. DOFFING THE HALF MASK RESPIRATOR To doff the Half Mask CleanSpace Respirator: Unclip the rear hook of the Head Harness from the Power Unit Hoop. Slide the harness forward over your head, toward the nose of the mask.

  • Page 24: Doffing The Full-Face Mask Respirator

    7. Care and Cleaning 7.1. CLEANING We recommend that you clean your respirator after every use. CleanSpace Respirator components should be cleaned separately. Determine the method most appropriate to your cleaning requirements. If using a wipe, refer to the Compatible Cleaning and Disinfecting Agents Supplement available from CleanSpace Technology at cleanspacetechnology.com.
  • Page 25 Unit in water. 7.1.4 FILTER CleanSpace particulate filter media cannot be cleaned. The filter media is contained within a filter case. Dispose of the filter responsibly when a change is required. Refer to Section 2.5 for more information. 7.1.5 HEAD HARNESS AND NECK SUPPORT The Head Harness and Neck Supports can be cleaned using the methods described for the CleanSpace Masks.

  • Page 26: Storage

    Refer to Section 3.3 for the recalibration procedure. 7.4. SERVICING It is the purchaser's responsibility to ensure that CleanSpace respirators and components are regularly maintained to an operational standard. CleanSpace recommends annual servicing of CleanSpace respirators by an accredited CleanSpace technician.

  • Page 27: Specifications

    Dependent on filter type, filter loading, altitude and battery condition. Operating Temperature Range Minimum: -10°C, Maximum: 45°C. The CleanSpace Respirator will shut down when battery temperature is greater than 60°C or less than -10°C. Operating Humidity Range Zero to 90%, non-condensing.

  • Page 28: Warranty

    The purchaser is responsible for all freight. In the event that any part of the product is found by CleanSpace Technology to be defective, CleanSpace Technology will either repair or at its discretion replace the faulty part.
