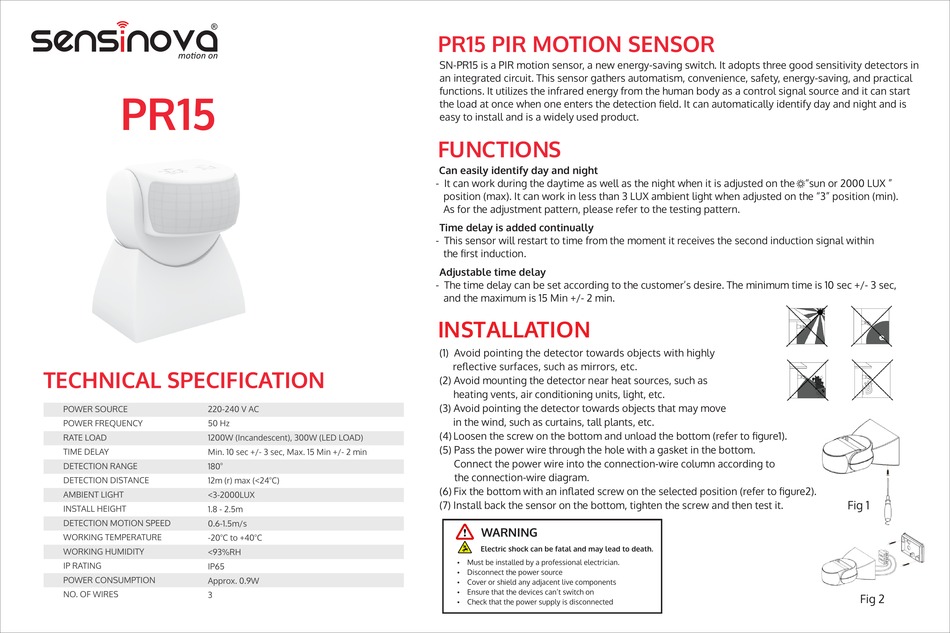

SENSINOVA PR15 Quick Start Manual

PR15

TECHNICAL SPECIFICATION

POWER SOURCE 220-240 V AC
POWER FREQUENCY 50 Hz
RATE LOAD 1200W (Incandescent), 300W (LED LOAD)
TIME DELAY Min. 10 sec +/- 3 sec, Max. 15 Min +/- 2 min
DETECTION RANGE
180 o
DETECTION DISTANCE 12m (r) max (<24 C)
AMBIENT LIGHT <3-2000LUX
INSTALL HEIGHT 1.8 - 2.5m
DETECTION MOTION SPEED
0.6-1.5m/s
WORKING TEMPERATURE -20 C to +40 C o
WORKING HUMIDITY <93%RH
IP RATING
IP65
POWER CONSUMPTION
Approx. 0.9W
NO. OF WIRES 3
o
o

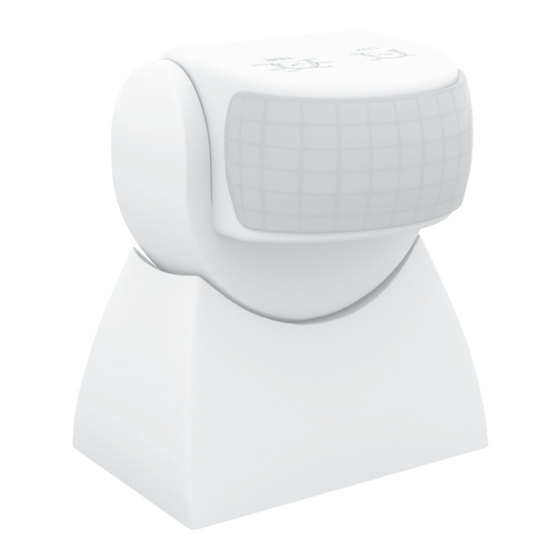

PR15 PIR MOTION SENSOR
SN-PR15 is a PIR motion sensor, a new energy-saving switch. It adopts three good sensitivity detectors in
an integrated circuit. This sensor gathers automatism, convenience, safety, energy-saving, and practical
functions. It utilizes the infrared energy from the human body as a control signal source and it can start
the load at once when one enters the detection field. It can automatically identify day and night and is
easy to install and is a widely used product.

FUNCTIONS

Can easily identify day and night
- It can work during the daytime as well as the night when it is adjusted on the "sun or 2000 LUX "
position (max). It can work in less than 3 LUX ambient light when adjusted on the "3" position (min).
As for the adjustment pattern, please refer to the testing pattern.
Time delay is added continually
- This sensor will restart to time from the moment it receives the second induction signal within
the first induction.
Adjustable time delay
- The time delay can be set according to the customer's desire. The minimum time is 10 sec +/- 3 sec,
and the maximum is 15 Min +/- 2 min.

INSTALLATION

(1) Avoid pointing the detector towards objects with highly
reflective surfaces, such as mirrors, etc.
(2) Avoid mounting the detector near heat sources, such as
heating vents, air conditioning units, light, etc.
(3) Avoid pointing the detector towards objects that may move
in the wind, such as curtains, tall plants, etc.
(4) Loosen the screw on the bottom and unload the bottom (refer to figure1).
(5) Pass the power wire through the hole with a gasket in the bottom.
Connect the power wire into the connection-wire column according to
the connection-wire diagram.
(6) Fix the bottom with an inflated screw on the selected position (refer to figure2).
(7) Install back the sensor on the bottom, tighten the screw and then test it.

WARNING

Electric shock can be fatal and may lead to death.
Must be installed by a professional electrician.
Ÿ
Disconnect the power source
Ÿ
Cover or shield any adjacent live components
Ÿ
Ensure that the devices can't switch on
Ÿ
Check that the power supply is disconnected
Ÿ
Fig 1
Fig 2
