PC308
TECHNICAL SPECIFICATION
POWER SOURCE
220-240 V AC
POWER FREQUENCY
50 Hz
RATED LOAD CURRENT
20 A
AMBIENT LIGHT
<2-100LUX
WORKING TEMPERATURE
-20 C to +50 C
o
IP RATING
IP65
NO. OF WIRES
4
o

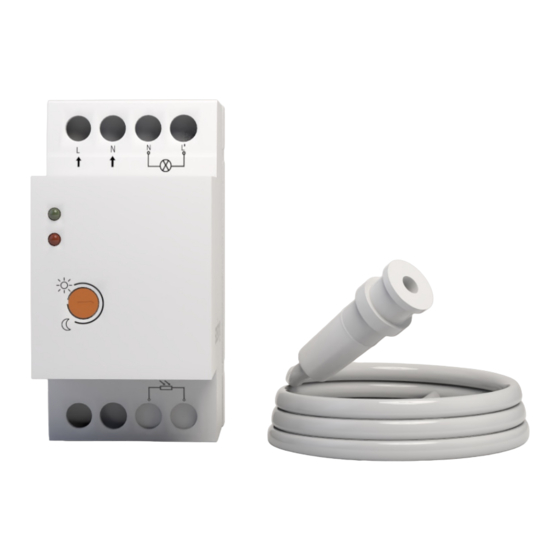

PC308 LIGHT CONTROL SENSOR
SN-PC308 is an automatic photocell switch for lamps. When the ambient light darkens
to the LUX that you set in advance, the light will turn on. The light will turn off when
the ambient light is more than the setting LUX. Equipped with the functions
of LUX adjustable.
FUNCTIONS
LUX setting
- When the LUX knob anti-clockwise is turned to "2" position, the photocell will only
work in the dark, that is when the ambient light is less than 2 LUX. If the LUX knob
is turned clockwise to the "100" position, it will work when the ambient light is
less than 50 LUX.

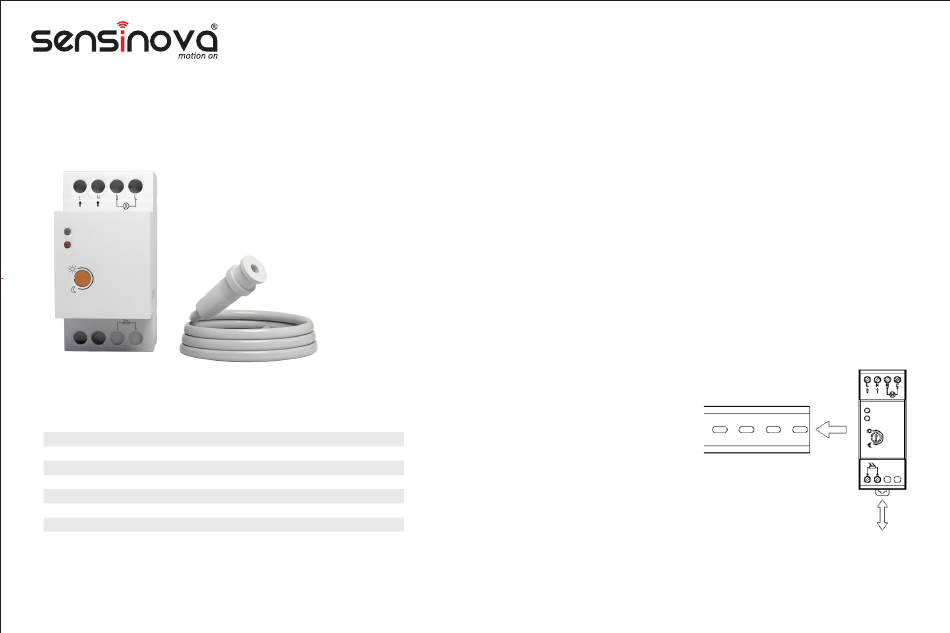

INSTALLATION
(1) Switch the power off
(2) The product should be installed in a trough
(3) Pull the plastic button at the back of the product,
and then put the product into the trough. After
that, push the plastic button to lock the product
in the trough
(4) Connect the wire with the product as per the
connection wire diagram
Fig 1
Advertisement
Table of Contents
Related Manuals for SENSINOVA PC308
Summary of Contents for SENSINOVA PC308
- Page 1 PC308 LIGHT CONTROL SENSOR SN-PC308 is an automatic photocell switch for lamps. When the ambient light darkens PC308 to the LUX that you set in advance, the light will turn on. The light will turn off when the ambient light is more than the setting LUX. Equipped with the functions of LUX adjustable.
- Page 2 CONNECTION-WIRE DIAGRAM APPLICATION Day/Night Light Function The lights switch ON and OFF automatically and save endless energy. Fig 2 Note: When testing during daylight, please cover the sensor with a black polythene cover, otherwise the sensor could not work. CALIBRATION Light control setting The chosen light response threshold can be adjusted from approximately 2-100 LUX.
- Page 3 NOTE There should be no obstruction in front of the photocell that affects the natural light. Ÿ No swaying object should be there in front of the photocell. Ÿ Do not install a photocell under the light or in any place where the light will be irradiated to the photocell. Ÿ...
