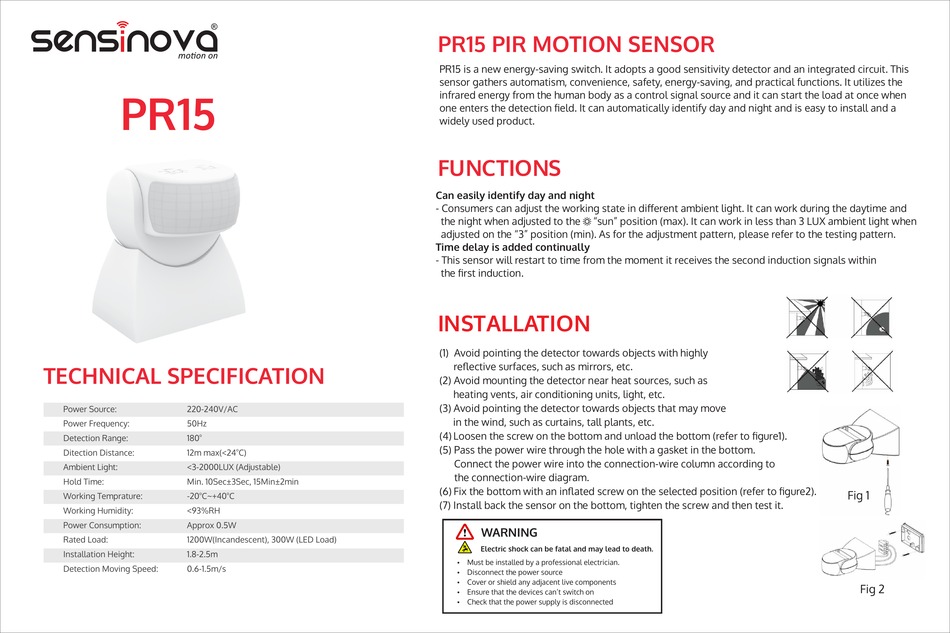

PR15
TECHNICAL SPECIFICATION
Power Source:
220-240V/AC
Power Frequency:
50Hz
Detection Range:
180
o
Ditection Distance:
12m max(<24 C)
Ambient Light:
<3-2000LUX (Adjustable)
Hold Time:
Min. 10Sec±3Sec, 15Min±2min
Working Temprature:
-20 C~+40 C
o
Working Humidity:
<93%RH
Power Consumption:
Approx 0.5W
Rated Load:
1200W(Incandescent), 300W (LED Load)
Installation Height:
1.8-2.5m
Detection Moving Speed:
0.6-1.5m/s
o
o

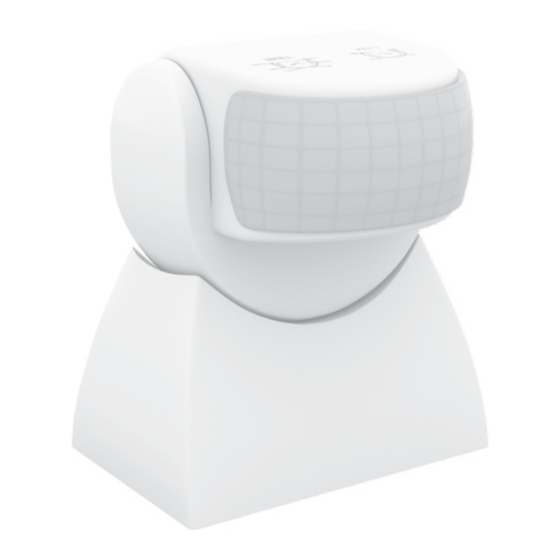

PR15 PIR MOTION SENSOR
PR15 is a new energy-saving switch. It adopts a good sensitivity detector and an integrated circuit. This
sensor gathers automatism, convenience, safety, energy-saving, and practical functions. It utilizes the
infrared energy from the human body as a control signal source and it can start the load at once when
one enters the detection field. It can automatically identify day and night and is easy to install and a
widely used product.
FUNCTIONS
Can easily identify day and night
- Consumers can adjust the working state in different ambient light. It can work during the daytime and
the night when adjusted to the
"sun" position (max). It can work in less than 3 LUX ambient light when
adjusted on the "3" position (min). As for the adjustment pattern, please refer to the testing pattern.
Time delay is added continually
- This sensor will restart to time from the moment it receives the second induction signals within
the first induction.
INSTALLATION
(1) Avoid pointing the detector towards objects with highly
reflective surfaces, such as mirrors, etc.
(2) Avoid mounting the detector near heat sources, such as
heating vents, air conditioning units, light, etc.
(3) Avoid pointing the detector towards objects that may move
in the wind, such as curtains, tall plants, etc.
(4) Loosen the screw on the bottom and unload the bottom (refer to figure1).
(5) Pass the power wire through the hole with a gasket in the bottom.
Connect the power wire into the connection-wire column according to
the connection-wire diagram.
(6) Fix the bottom with an inflated screw on the selected position (refer to figure2).
(7) Install back the sensor on the bottom, tighten the screw and then test it.
WARNING
Electric shock can be fatal and may lead to death.
Must be installed by a professional electrician.
Ÿ
Disconnect the power source
Ÿ
Cover or shield any adjacent live components
Ÿ
Ensure that the devices can't switch on
Ÿ
Check that the power supply is disconnected
Ÿ
Fig 1
Fig 2
Advertisement
Table of Contents
Related Manuals for SENSINOVA PR15
Summary of Contents for SENSINOVA PR15
- Page 1 PR15 PIR MOTION SENSOR PR15 is a new energy-saving switch. It adopts a good sensitivity detector and an integrated circuit. This sensor gathers automatism, convenience, safety, energy-saving, and practical functions. It utilizes the PR15 infrared energy from the human body as a control signal source and it can start the load at once when one enters the detection field.
- Page 2 APPLICATION CONNECTION-WIRE DIAGRAM Daylight Function The hold time is set to 30 seconds, and LUX is set to 300 The light switches on when it detects movement, and it switches off after people leave at night Fig 3 Applications: corridor, staircase Note: When testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor could not work!
- Page 3 NOTE Only an electrician or an experienced human can install it. Ÿ Do not install it on an uneven and shaky surface. Ÿ No obstructive objects should be in front of the sensor as it affects the detection. Ÿ Do not install it near metal and glass as they may affect the sensor. Ÿ...
