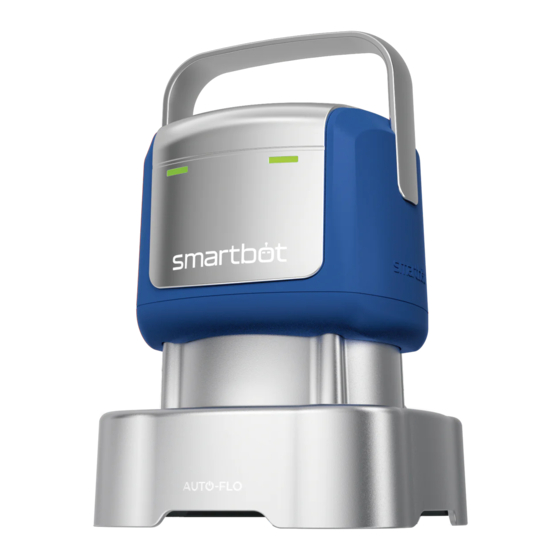

Submersible utility pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Submersible Utility Pump
Robust 2800 & Super 3600
Instruction Manual
Small but Mighty
READ THIS MANUAL BEFORE USING THIS PRODUCT. FAILURE
TO FOLLOW THE INSTRUCTIONS AND SAFETY PRECAUTIONS IN THE
MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH. KEEP THIS
MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Robust 2800 and is the answer not in the manual?

Questions and answers

Summary of Contents for SMARTBOT Robust 2800

  • Page 1 Submersible Utility Pump Robust 2800 & Super 3600 Instruction Manual Small but Mighty READ THIS MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THE INSTRUCTIONS AND SAFETY PRECAUTIONS IN THE MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH. KEEP THIS...
  • Page 2 Thanks for choosing the Smartbot Robust 2800 or Super 3600 submersible utility pump. If you have any questions about your Smartbot pump, call the Smartbot Helpline with your model information and details of where/when you bought the pump, or contact us via the Smartbot website.

  • Page 3: Safety Signal Words

    DANGER � WARNING � CAUTION � NOTICE Only people well acquainted with these rules of DO NOT use the power cord or discharge hose to carry or handle the pump. Doing so may cause safe operation should be allowed to use the unit. damage to either the power cord or discharge hose.
  • Page 4 Application The pumps are of the submersible type, designed and made for pumping clear water with automatic operation for domestic uses, such as drying basements and garages subject to flooding or pumping drainage wells, rainwater-collecting traps, infiltrations from roof gutters, etc. Thanks to their compact size and handy shape, they can also be used for particular applications as portable pumps for emergencies such as for drawing water from tanks or rivers, draining swimming pools and fountains, excavations, or underpasses.
  • Page 5 In the Box Pump Elbow connector Straight connector Adaptor： 2'' NPT to 1-1/2" NPT Adaptor： 2'' NPT to 1-1/4"NPT Adaptor： 2'' NPT to 1" NPT Adaptor： 2'' NPT to 3/4" GHT Instruction manual...
  • Page 6 Functions Handle LEDs Cable Outlet Inlet...
  • Page 7 Quick Guide STEP 1 – INSTALLATION STEP 2 – CONNECT GARDEN HOSE Select the correct 2" connector (elbow or straight) and adaptor (1-1/2”, 1-1/4”, 1”, 3/4”) and install them as instructed. STEP 3 – PLACE IN WATER STEP 4 – PLUG INTO GFCI OUTLET Requires 2”...
  • Page 8 When the water level 1/16" Auto Off reaches approximately 1/16” above the surface, Smartbot safely turns itself off. Note: Removing water level depends on many factors. Only on a levelled surface can water be removed to a depth of approximately 1/16".
  • Page 9 Led Light Signal: Green: Power on, pump works normally. Red: Whenever there is a blockage caused by fiber and debris, the pump will automatically power off and the light runs red and start to blink. When this occurs, follow the instructions provided in the Troubleshooting section.

  • Page 10: Troubleshooting

    The soft surface of the pool might be surface. sucked in the water pump bottom due pool, the machine has B. You may also acquire a Smartbot Strainer to big pump power. started but does not drain Base/Pool Cover Base, which is designed to water.
  • Page 11 Volute and Impeller Cleaning Unplug the pump. Remove the 6 screws shown in the figure below. Remove the volute and clean the impeller and volute of all debris. Reposition the cork gasket using the alignment features, preventing any possible obstruction of the pump’s discharge openings. Reinstall the volute with caution.

  • Page 12: Technical Specifications

    Technical Specifications Contents Item Robust 2800 Super 3600 Power [HP] Voltage [V] Electrical data Frequency [Hz] Current rating [A] Max. flow rate [GPH] 2800 3600 Max. head [Ft] Hydraulic data Min. AUT starting height [In.] 2” 2” Stopping height [In.] 1/16”...
  • Page 13 Reaching Maximum Flow To reach the maximum flow rate of 2800/3600 gallons per hour, a discharge hose of 2 inches or more must be used. If the drainage pipe is less than 2 inches, the drainage volume will decrease accordingly.

  • Page 14: California Proposition

    (invoice or cash register receipt) and a brief description of the problem found. The impeller and parts subject to wear are not covered by the guarantee. Intervention under guarantee does not extend the initial guarantee period in any way. Smartbot customer care Helpline: 1-866-807-1227 www.smartbotpumps.com The manufacturer reserves right to change and upgrade products without any notice.

This manual is also suitable for:

Super 3600
