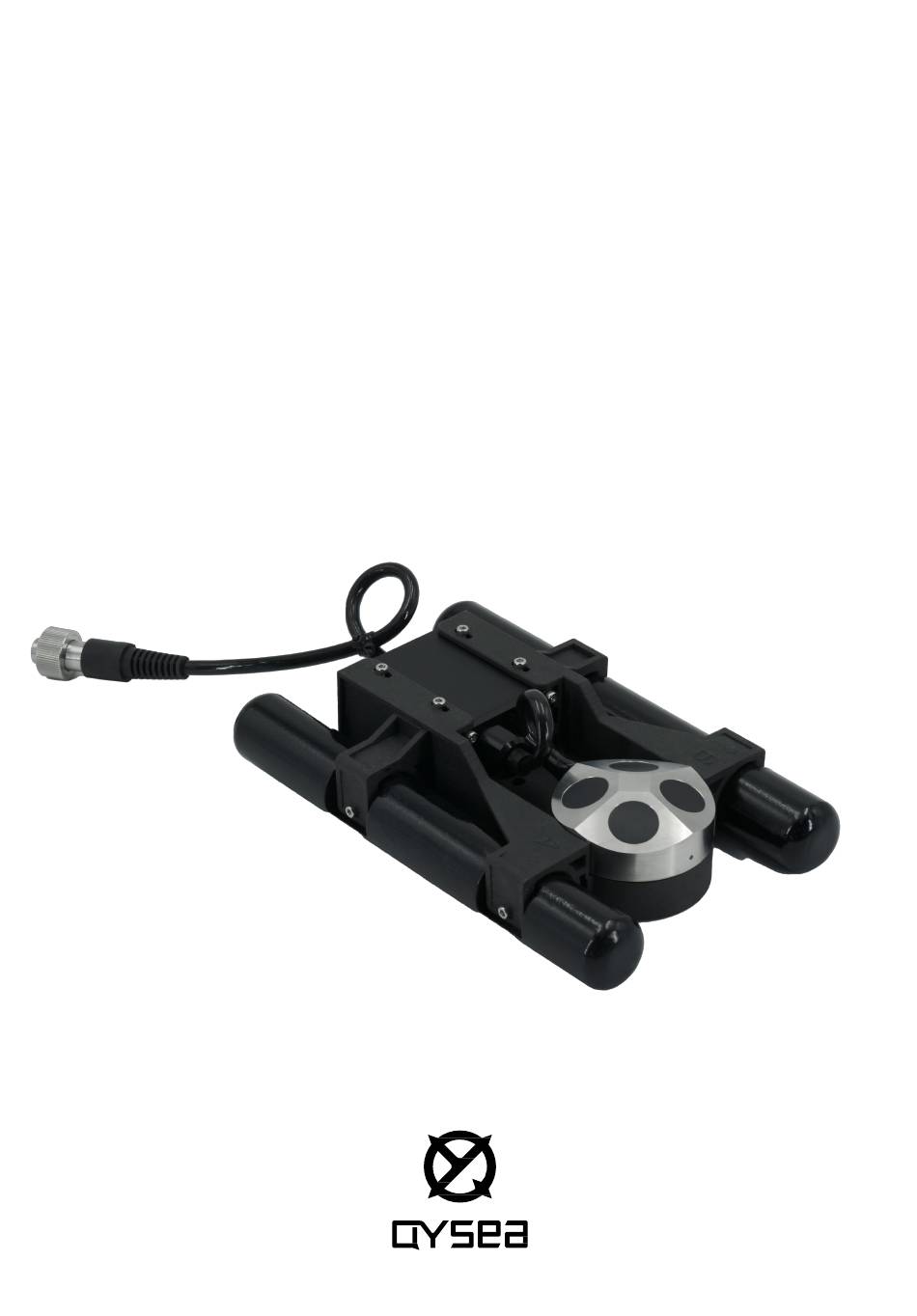

- Page 1 User Manual for Station Lock Module...
-
Page 2: Table Of Contents
Contents Introduction and packing list··········································································································01 Out of box audit······················································································································02 Product specification··············································································································03 Usage instructions··················································································································04 Installation································································································································05-07 Operation····························································································································08-09 Maintenance and after-sales support····················································································10 Disclaimer········································································································································11... -
Page 3: Introduction And Packing List
/Introduction and Packing List Serial Item Name Quantity Unit Number Station Lock Module – Fixed Bracket Station Lock Module – Adapter Bracket M3 Adapter Bracket Screws M3 Fixed Bracket Screws User manual... -
Page 4: Out Of Box Audit
/Out of Box Audit Before operating FIFISH products, please be sure to receive relevant training and take practices, and read this document thoroughly before performing underwater operations. Operations in violation of QY safety rules may result in the consequence that your safety and interests cannot be guaranteed. 1. -
Page 5: Product Specification
/ Product Specification Item Specification Voltage Power 0.25A@12V Max working depth 150m Communication mode Ethernet Frequency 1MHz Sensor configuration 4 wave beam sonar matrix Min height 10cm Max height Max velocity 2.0m/s Velocity resolution 0.01m/s QY Application Station lock... -
Page 6: Usage Instructions
/Usage Instructions Precautions before usage 1. Before connecting the station lock module with the underwater vehicle, the underwater vehicle shall be powered off. 2. Check the battery level of the underwater vehicle to ensure that there is sufficient and stable power. -
Page 7: Installation
/Installation 1. Put the“Station Lock Module–Adapter Bracket” into the bottom of the underwater vehicle and lock the bracket with “M3 adapter bracket screws”... - Page 8 /Installation 2. Put the “Station Lock Module – Fixed Bracket” into the “Station Lock Module – Adapter Bracket”, and lock the “Station Lock Module – Fixed Bracket” with “M3 Fixed Bracket Screws”...
- Page 9 /Installation 3. Remove accessory port cap under underwater vehicle, connect the Station Lock Module’s Q-connector cable to the ROV, and tighten the plug...
-
Page 10: Operation
/Operation 1. After the underwater vehicle is turned on, connect the remote control with the mobile device, open the FIFISH APP, select the “Tool”icon, and click the "Station Lock" icon, as shown below... - Page 11 /Operation 2. After the "Station Lock" function is turned on,the current DVL information is displayed on the APP FPV interface, including forward speed, horizontal speed and vertical speed 3. Use the ”ON/OFF” switch to perform position locking and unlocking functions...
-
Page 12: Maintenance And After-Sales Support
1. Online customer service: you can find the entrance of customer services via the FIFISH APP, WeChat official account (FIFISH Underwater Robot) and the official website. 2. Email: support@qysea.com For more information about FIFISH Authorized Service Center, please visit https://www.qysea.com/support/repair-center/... -
Page 13: Disclaimer
Failures or damages caused by any third-party products (including products that QYSEA may provide or integrate into QYSEA products at the request of users). Any damage caused by non-QYSEA technology or other support (for example, the support for solving the "operation method" problem or incorrect product settings, installation and firmware upgrades).
