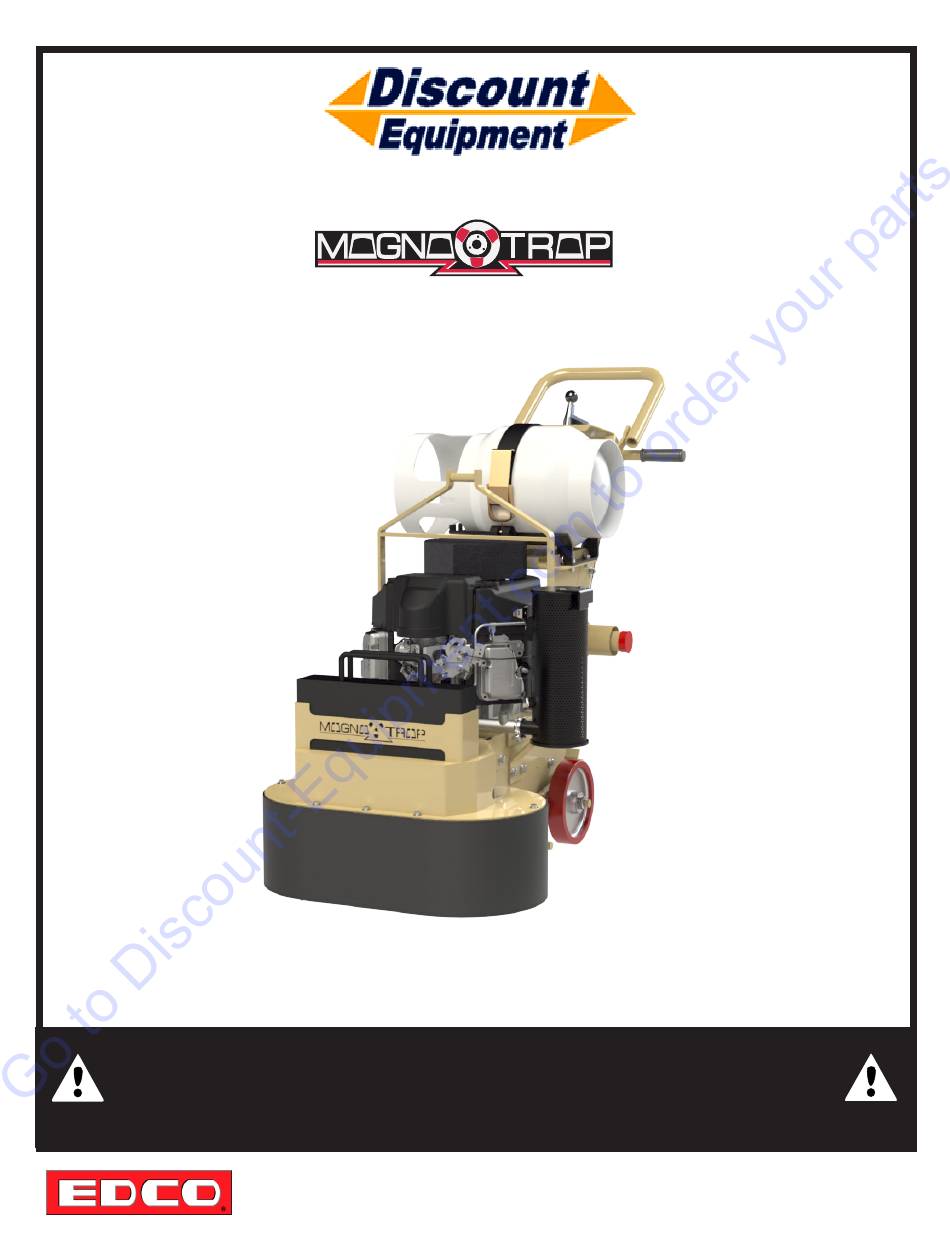

E-2DHDP18P-PL-0521
REVISED STARTING
SERIAL # 210310050
PARTS LIST MANUAL
®
H
-D
F
G
P
EAVY
UTY
LOOR
RINDER /
OLISHER
PROPANE MODEL 2DHDP-18P
SKU # 58200
READ AND UNDERSTAND THE OPERATOR'S SAFETY MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Printed in USA
©2021
JWA
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Edco Magna-Trap 2DHDP-18P
Summary of Contents for Edco Magna-Trap 2DHDP-18P
- Page 1 E-2DHDP18P-PL-0521 REVISED STARTING SERIAL # 210310050 PARTS LIST MANUAL ® EAVY LOOR RINDER / OLISHER PROPANE MODEL 2DHDP-18P SKU # 58200 READ AND UNDERSTAND THE OPERATOR’S SAFETY MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. Printed in USA ©2021 Page 1...
- Page 2 Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,...
- Page 3 E-2DHDP18P-PL-0521 SAFETY INFORMATION SAFETY MESSAGES ELECTRICAL POWERED EQUIPMENT CONTINUED • Safety Instructions are proceeded by a graphic alert symbol of DANGER, • Do not disconnect power by pulling cord. To disconnect, grasp the WARNING, or CAUTION. plug, not the cord. •...
-
Page 4: Table Of Contents
PARTS LIST MANUAL E-2DHDP18P-PL-0521 ® EAVY LOOR RINDER/ OLISHER PROPANE MODEL TABLE OF CONTENTS Section Page Number Safety Messages and General Instructions ......2 How To Order Replacement Parts . -
Page 5: Illustration 1: Main Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 1: ILLUSTRATION 1: MAIN GROUPING MAIN GROUPING Page 4... - Page 6 E-2DHDP18P-PL-0521 PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING ITEM # PART # DESCRIPTION QTY. 77501 MAIN FRAME 77502 COVER, GEAR CASE 10005 PLUG, HOLE 7/8” BRIGHT ZINC 11697 SCREW, FLANGE HEX 1/4-20 X 3 10018 SCREW, CAP 1/4-20 X 3/4 10038 WASHER, LOCK 1/4 ZINC 10602...
-
Page 7: Illustration 2: Handle & Wheel Carriage Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 2: ILLUSTRATION 2: HANDLE & WHEEL CARRIAGE GROUPING HANDLE & WHEEL CARRIAGE GROUPING Page 6... - Page 8 E-2DHDP18P-PL-0521 PARTS LISTING - ILLUSTRATION 2 : HANDLE & WHEEL CARRIAGE GROUPING ITEM # PART # DESCRIPTION QTY. 77533 HANDLE BAR, PROPANE MODEL 10608 GRIP, HAND 1” MODEL AT 10029 SCREW, CAP 3/8-24 X 1-3/4 10025 WASHER, FLAT 3/8 SAE ZINC 10004 NUT, HEX LOCK 3/8-24 ZINC 77508...
-
Page 9: Illustration 3: Skirt, Vacuum Port & Water Hook-Up Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 3: SKIRT, VACUUM PORT & WATER HOOK-UP GROUPING ILLUSTRATION 3: SKIRT, VACUUM PORT & WATER HOOK-UP GROUPING Page 8... - Page 10 E-2DHDP18P-PL-0521 PARTS LISTING - ILLUSTRATION 3 : SKIRT, VACUUM PORT & WATER HOOK-UP GROUPING ITEM # PART # DESCRIPTION QTY. 77529 RUBBER SKIRT 1/8 X 8 X 58 W/VELCRO 77504 RUBBER SKIRT, REAR 1/8 X 4 X 11 10018 SCREW, CAP 1/4-20 X 3/4 10038 WASHER, LOCK 1/4 ZINC 10602...
- Page 11 Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,...
-
Page 12: Illustration 4: Standard Grinding Disc Assemby
ILLUSTRATION 4: ILLUSTRATION 4: E-2DHDP18P-PL-0521 STANDARD GRINDING DISC ASSEMBLY STANDARD GRINDING DISC ASSEMBLY ® DISC ARRANGEMENT INSTALL DISC IN OPPOSITE DIRECTIONS SO THEY PASS EACH OTHER AT THE CENTER ALTERNATING SEQUENCE. BOTTOM VIEW PART # 101201 ITEM # PART # DESCRIPTION QTY.* 1-13... -
Page 13: Illustration 5: Optional Polishing Disc Assemby
PART # DESCRIPTION QTY.* 1-13 77535 MT POLISHING DISC ASSEMBLY 75175 DISC ONLY, POLISHING, 2DHD QC-HOLDER-EDCO HOLDER, MAGNETIC QUICK CHANGE 10147 SCREW, FLAT HD SKT 1/4-20 X 3/4 L18567 DISC TOP PLATE, POLISHING 11614 SCREW, CAP 1/2-20 X 3/4 10045... -
Page 14: Illustration 6: Propane Engine & Belt Drive Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 6: PROPANE ENGINE & BELT DRIVE GROUPING ILLUSTRATION 6: PROPANE ENGINE & BELT DRIVE GROUPING Page 12... - Page 15 E-2DHDP18P-PL-0521 PARTS LISTING - ILLUSTRATION 6 : PROPANE ENGINE & BELT DRIVE GROUPING ITEM # PART # DESCRIPTION QTY. 15081 ENGINE, KAWASAKI LX600 PROP. READY INCLUDES: 12V STARTER, OIL PRESSURE SWITCH, OIL DRAIIN, CATALYTIC MUFFLER. LP FUEL SYSTEM: REGULATOR, INLINE SHUT-OFF VALVE, HIGH &...
-
Page 16: Illustration 7: Propane Tank Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 7: PROPANE TANK GROUPING ILLUSTRATION 7: PROPANE TANK GROUPING Page 14... - Page 17 E-2DHDP18P-PL-0521 PARTS LISTING ILLUSTRATION 7: PROPANE TANK GROUPING ITEM # PART # DESCRIPTION QTY. 15099 PROPANE TANK 20LB. VAPOR 100399 PROPANE TANK CRADLE BRACKET 101126 PROPANE TANK LOCATOR BRACKET 77061-2 PROPANE TANK STRAP W/ HINGE 77061-3 PROPANE TANK CLAW BRACKET 77061-4 PROPANE TANK TOGGLE CLAMP 11661...
-
Page 18: Illustration 8: Electrical Component Grouping
E-2DHDP18P-PL-0521 ILLUSTRATION 8: ILLUSTRATION 8: ELECTRICAL COMPONENT GROUPING ELECTRICAL COMPONENT GROUPING Page 16... - Page 19 E-2DHDP18P-PL-0521 PARTS LISTING ILLUSTRATION 8: ELECTRICAL COMPONENT GROUPING ITEM # PART # DESCRIPTION QTY. 15201A SWITCH W/ WIRES, ROCKER RED ON-OFF (EMERGNCY STOP) ADDITIONAL PARTS REQ’D. (NOT SHOWN): 50084 TERM., RING #10 16-14GA. INSULATED 10831 WASHER, LOCK, INT. TOOTH #10 10877 SCREW, CAP STSHW 10-24 X 1/2 11567...
-
Page 20: Wiring Diagram
E-2DHDP18P-PL-0521 WIRING DIAGRAM WIRING DIAGRAM Page 18... -
Page 21: Key Switch Wire Harness
E-2DHDP18P-PL-0521 KEY SWITCH WIRE HARNESS KEY SWITCH WIRE HARNESS PART # 300104 PART # DESCRIPTION QTY. 10675 TERMINAL, FEM., KOHLER 25-452-01-S 10968 TERM., RING 5/16 16-14GA. INSULATED 10977 TERM., RING #10 12-10GA. INSULATED 11567 CONNECTOR, BULLET STD. 16-14GA.BLUE 11582 CONNECTOR, BULLET 3-WAY FEMALE 11867 CONNECTOR, LINE STD. - Page 22 E-2DHDP18P-PL-0521 OTHER WIRES ASSEMBLIES OTHER WIRES ASSEMBLIES PART # DESCRIPTION QTY. 10938 CONNECTOR, BUTT 16-14GA. INSULATED 10955 TERM., FEM. PUSH-ON 1/4” 16-14GA. 10968 TERM., RING 5/16 16-14GA. INSULATED 10977 TERM., RING #10 12-10GA. INSULATED 50084 TERM., RING #10 16-14GA. INSULATED 75180 FUSEHOLDER, 1-30A, ATC BLADE 75181...
- Page 23 Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,...
Need help?
Do you have a question about the Magna-Trap 2DHDP-18P and is the answer not in the manual?
Questions and answers
Will not start, no power to starter. Light, oil and head light illuminate, but no power to starter
Possible causes of no power to the starter on an Edco Magna-Trap 2DHDP-18P include:
1. Faulty key starter switch (Part 75183).
2. Defective solenoid switch (Part 75171).
3. Blown fuse (Part 75181, 20A ATC blade).
4. Damaged or loose wiring connections.
5. Dead or disconnected battery (Part 75173, 12V battery).
6. Faulty fuseholder (Part 75180).
Each of these components should be checked to diagnose the issue.
