Edco E-SEC Quick Start Manual

PROCEDURE FOR INSTALLING AND REMOVING ACCESSORIES

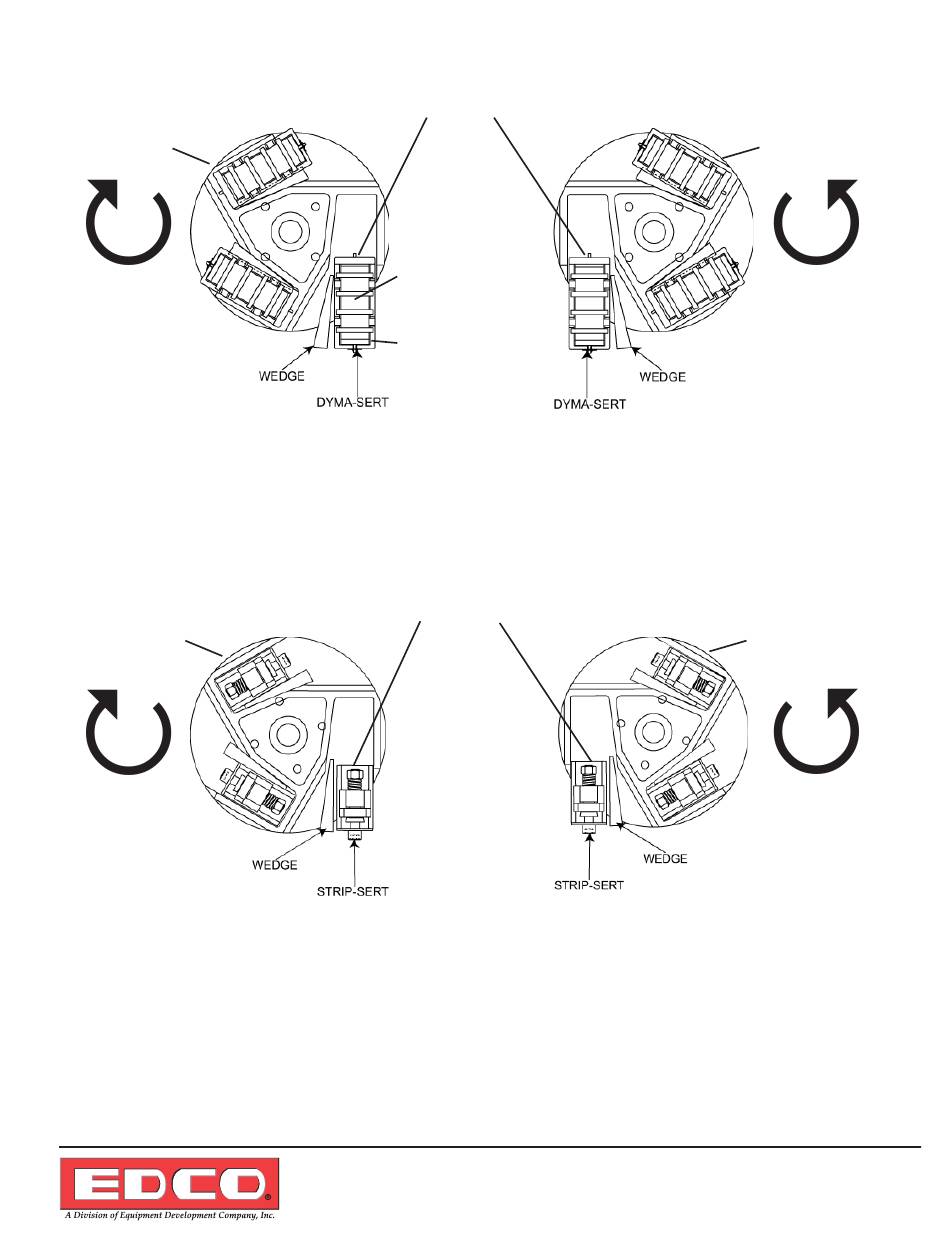

MULTI-DISC
LH Multi-disc
To install an accessory, there are several different types but all install in the same manner, use a brass rod or similar
malleable material to drive the wooden wedge into place as shown in the above and below illustrations, note on which
side of the accessory the wooden wedge is positioned (near center of disc). Never mix worn or used accessories with
new ones. It will cause vibration and an uneven work surface. Replace accessories in complete sets, never mix sets.
MULTI-DISC
LH Multi-disc
To remove an accessory, there are several different types, all are removed in the same manner, use a wooden block
as explained in the above illustration. Never hammer directly on any accessory, damage to the self adjusting system
will result and the accessory will have to be replaced.
NOTE: THE ABOVE ILLUSTRATIONS ARE VIEWING THE MACHINE FROM THE
FRONT BOTTOM. NOTE THE DIRECTION OF ROTATION AND MULTI-DISC
STYLE. IF DISCS ARE REPLACED AND INSERTS FALL OUT WHEN BEING
USED THE DISCS HAVE BEEN INSTALLED INCORRECTLY.
Place wooden block against this surface and tap
with hammer or mallet to remove accessory
This is the part of
the Dyma-Sert that
is rotated 180°
N o t t h e D Y M A -
SERT case.
Place wooden block against this surface of the Strip-Sert
and tap with hammer or mallet to remove.
E-SEC,2EC,2GC-P,4EC,GC,GCP-I-0808
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Fax (301) 663-1607 • 1-800-447-3326
Website: www.edcoinc.com
Email: sales@edcoinc.com
MULTI-DISC
RH Multi-disc
MULTI-DISC
RH Multi-disc
Printed in USA
©2008
TVW
Page 9
