Assemble Instructions
Mia Series
Product Code
MIA 3DSB1240-NT

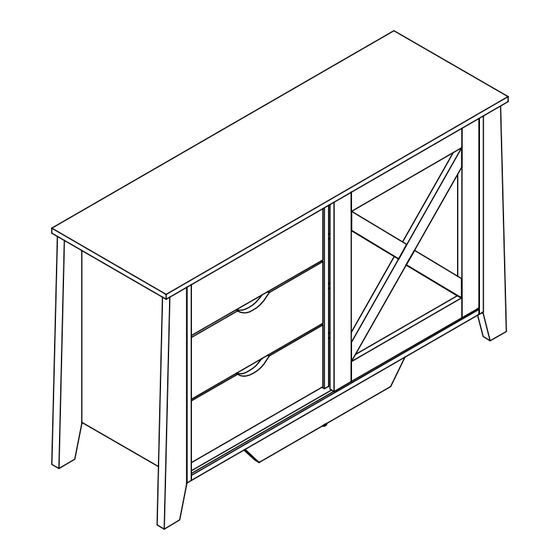

3 Drawer Sliding Door Sideboard
Dimensions(W x D x H)
1200*400*715mm
Important
Please read through instructions carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit:lifely.com.au/assembly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mia Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lifely Mia Series

Summary of Contents for Lifely Mia Series

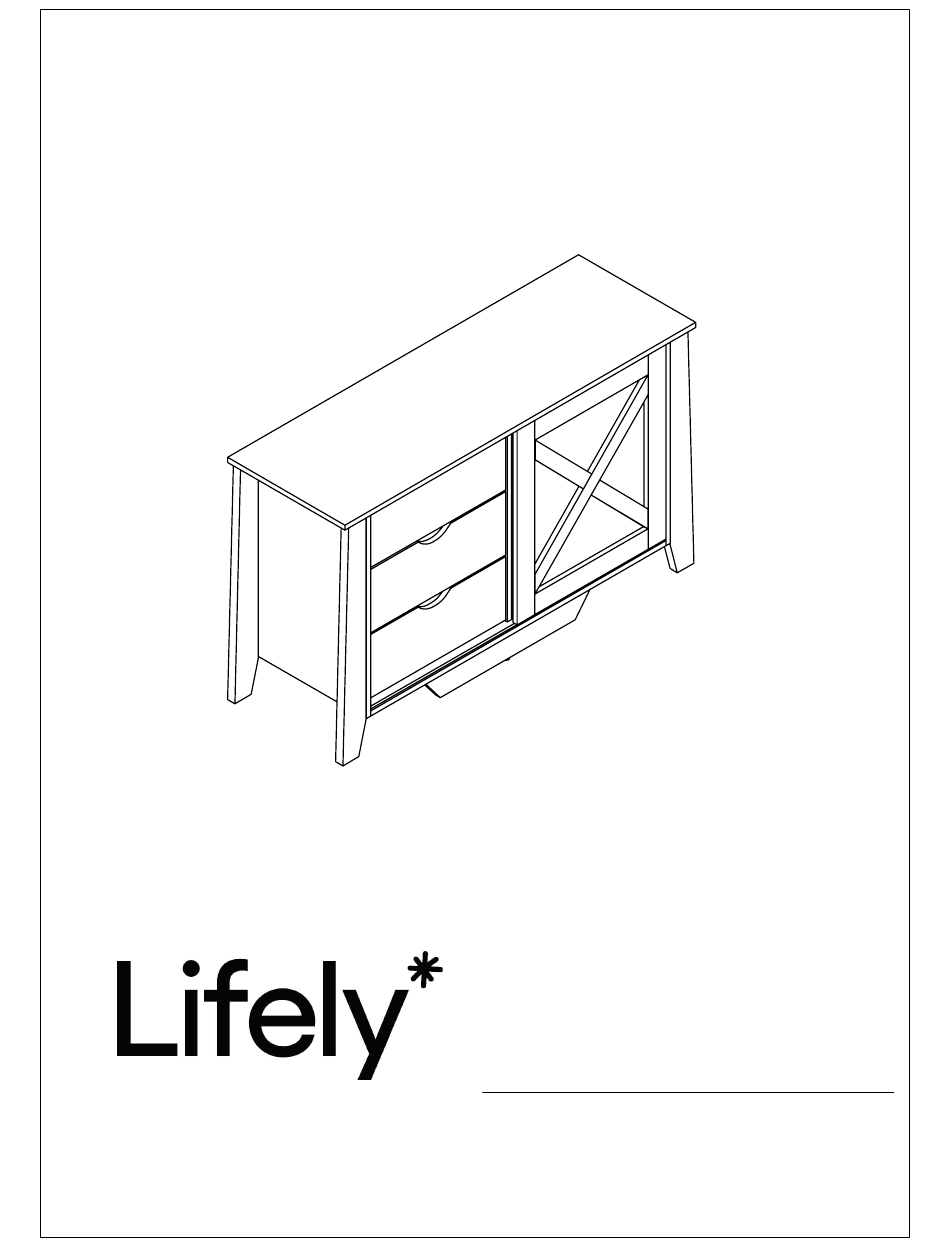

  • Page 1 Assemble Instructions Mia Series Product Code Important MIA 3DSB1240-NT Please read through instructions carefully 3 Drawer Sliding Door Sideboard Before assembly and keep for future reference. Dimensions(W x D x H) For our full catalogue of assembly instructions, Visit:lifely.com.au/assembly. 1200*400*715mm...
  • Page 2 Important Tips and Maintenance New use ammonia based To avoid fading,keep furniture Keep children and animals Newer place liquids or anything cleaning products as it will out of direct sunlight. away from working area as damp upon furniture as it damage the finish.
  • Page 3 So your relationship is strong.But is it flat-pack furniture strong?Unless you're an aerospace engineer,assembling furniture can be slightly stressful.We recommend meditating quietly,pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on,try a compliment instead .E.g."You're so good looking".
  • Page 4 Components Hardware Please check you have all the fittings part or tools are listed in below. No.A No.B No.B No.C No.D Quantity:16Pcs Quantity:34Pcs Quantity:34Pcs Quantity:48Pcs Quantity:28Pcs Dowel Cam Bolt Cam Nut Screw M3.5*14mm Screw M3.5*35mm No.F No.E No.G No.H No.J Quantity:2Pcs Quantity:3Pcs Quantity:1Pcs...
  • Page 5 Components Panels & Part List Please check you have all the panels are listed below. Back panel_b Pillar leg_l&r CTN2/2 CTN1/2 Side panel_r CTN1/2 Shelf panel CTN1/2 Side panel_l CTN1/2 Sliding door panel CTN2/2 Centre panel Drawer back CTN1/2 CTN2/2 Bottom panel Drawer side_l CTN2/2...
  • Page 6 STEP 1 No.B No.D Quantity:2Pcs Quantity:8Pcs Cam Bolt Screw M3.5*35mm STEP 2 ARROW ON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL No.B No.J No.A Quantity:2Pcs Quantity:2Pcs Quantity:2Pcs Shelf Support Cam Nut Dowel MIA 3DSB1240-NT / 6...
  • Page 7 STEP 3 No.B No.D Quantity:2Pcs Quantity:8Pcs Cam Bolt Screw M3.5*35mm STEP 4 HARDWARE NEEDED: 2PCS 6PCS 2PCS 3PCS No.B No.C No.E No.A Quantity:2Pcs Quantity:6Pcs Quantity:3Pcs Quantity:2Pcs Cam Nut Screw M3.5*14mm Drawer Runner Dowel MIA 3DSB1240-NT / 7...
  • Page 8 STEP 5 FRONT ROTATE BACK ARROW ON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL No.B No.C No.E No.J No.A Quantity:2Pcs Quantity:4Pcs Quantity:6Pcs Quantity:3Pcs Quantity:4Pcs Shelf Support Cam Nut Screw M3.5*14mm Drawer Runner Dowel STEP 6 ROTATE BACK FINISHED FRONT EDGE...
  • Page 9 ARROW ON LOCKING NUT STEP 7 MUST POINT TOWARDS HOLE IN EDGE OF PANEL No.A No.B Quantity:2Pcs Quantity:4Pcs Cam Nut Dowel STEP 8 No.A No.B No.B Quantity:4Pcs Quantity:2Pcs Quantity:8Pcs Cam Bolt Cam Nut Dowel MIA 3DSB1240-NT / 9...
  • Page 10 STEP 9 No.B Quantity:6Pcs Cam Bolt STEP 10 No.C No.F Quantity:2Pcs Quantity:16Pcs SLIDING ROLL & STOPPER Screw M3.5*14mm MIA 3DSB1240-NT / 10...
  • Page 11 STEP 11 FINISHED FRONT EDGE STEP 12 MIA 3DSB1240-NT / 11...
  • Page 12 STEP 13 STEP 14 FINISHED FRONT EDGE MIA 3DSB1240-NT / 12...
  • Page 13 STEP 15 STEP 16 MIA 3DSB1240-NT / 13...
  • Page 14 STEP 17 STEP 18 MIA 3DSB1240-NT / 14...
  • Page 15 STEP 19 PUSH THE BUTTON AND DRAG IT TO TOP AFTER ENTER THE SLIDING DOOR MAKE SURE ENTER THE ROLL SLIDING FIRST STEP 20 ARROW ON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL DRAWER x3 No.B Quantity:6Pcs Cam Nut MIA 3DSB1240-NT / 15...
  • Page 16 STEP 21 ARROW ON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL No.B Quantity:6Pcs Cam Nut DRAWER x3 STEP 22 DRAWER FRONT x3 No.B Quantity:12Pcs Cam Bolt MIA 3DSB1240-NT / 16...
  • Page 17 STEP 23 FINISHED No.D FRONT Quantity:12Pcs EDGE Screw M3.5*35mm DRAWER x3 STEP 24 DRAWER x3 MIA 3DSB1240-NT / 17...
  • Page 18 STEP 25 DRAWER x3 STEP 26 LAST THIRD HOLE DRAWER x3 THIRD HOLE No.E No.C Quantity:6Pcs Quantity:12Pcs Drawer Runner Screw M3.5*14mm MIA 3DSB1240-NT / 18...
  • Page 19 STEP 27 STEP 28 No.C No.H Quantity:8Pcs Quantity:8Pcs Back Plate Clamp Screw M3.5*14mm MIA 3DSB1240-NT / 19...
  • Page 20 STEP 29 No.G Quantity:1Pcs Anti Collapse STEP 30 In order to make the product more beautiful, please paste hardware K on the exposed holes No.K Quantity:44Pcs Perfect Cover MIA 3DSB1240-NT / 20...
  • Page 21 Great Job,You're done! Don't forget to share how it looks in your space and tag us on Instagram. @lifelyhome#homewithlifely!

This manual is also suitable for:

Mia 3dsb1240-nt
