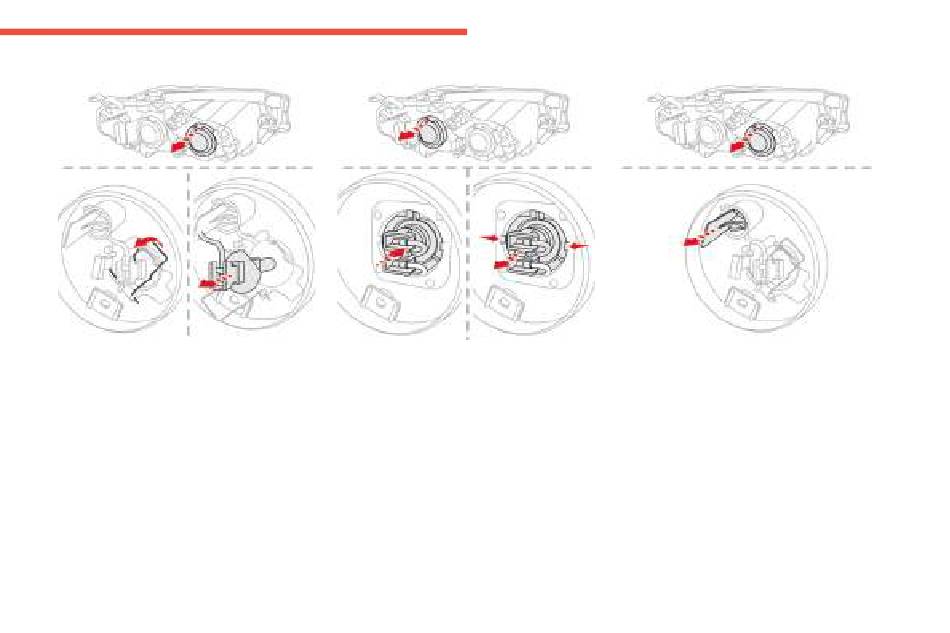

Main beam headlamps
► Remove the protective cover by pulling on
the tab.
► Unclip the module support unit.
► Remove the bulb connector.
► Remove the bulb and replace it.
To reassemble it, reposition the unit in the
housing and clip it back.
Make sure to replace the protective cover with
the tab facing upward.
Dipped beam headlamps
► Remove the protective cover by pulling the
tab.
► Push the entire module relative to the support
to unclip one of the two tabs.
► Once the first tab is unclipped, release the
second tab.
► Remove the bulb connector.
► Remove the bulb and replace it.
To reassemble it, position the unit in the housing
and push until the two tabs "clip".
Make sure to replace the protective cover with
the tab facing upward.
In the event of a breakdown
Sidelamps
► Remove the protective cover by pulling on
the tab.
► Remove the bulb connector.
► Remove the bulb and replace it.
Make sure to replace the protective cover with
the tab facing upward.
