Summary of Contents for TURBRO Finnmark FMP05AC

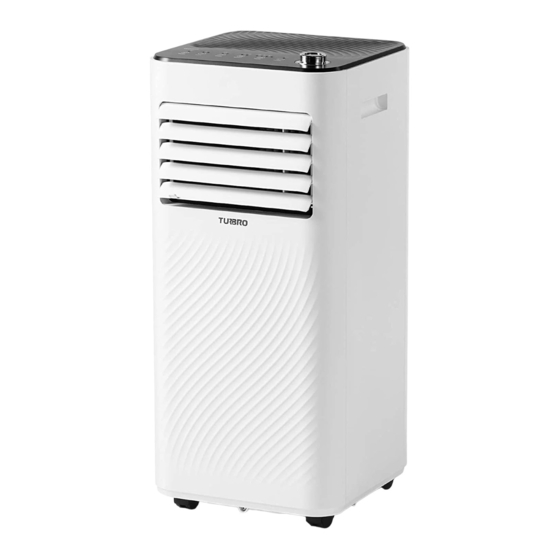

- Page 1 USER MANUAL PORTABLE AIR CONDITIONER Model: Finnmark FMP05AC Finnmark FMP06AC Before using TURBRO Portable Air Conditioner, please read this manual carefully and retain it for future reference.
- Page 2 2. Do not attempt to accelerate the defrosting process or clean the unit in any way other than those recommended by the manufacturer. Should repair be necessary, contact TURBRO Customer Service Team. 3. Any repairs carried out by unqualified personnel may be dangerous.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION ···········································································································01 PARTS DESCRIPTION ··············································································································03 INSTALLATION INSTRUCTIONS ····························································································05 ·················································································································05 Installation Location ················································································05 Tool Suggested (Not Included in package) ······················································06 Installing in Double-Hung Sash / Sliding Casement Windows ·············································································································08 Installing Exhaust Hose OPERATING INSTRUCTIONS ··································································································09 ···························································································································09 Control Panel ······························································································09... -
Page 4: Safety Information
● Never attempt to operate this appliance if it visibly damaged, malfunctioning, disassembled or has missing or broken parts. This includes exposed wiring on a damaged cord or electrical plugin. All repairs and servicing must be performed by qualified service personnel. Use only authorized TURBRO factory OEM parts. - Page 5 ● This product should be plugged directly into a power outlet. Power outlets should be properly rated, protected, and sized in order to avoid electrical overload. Do not use a multiple-outlet power strip or extension cord. Failure to do so may result in short-circuit or electrical shock.
-
Page 6: Parts Description
If the TEST button does not cause the circuit breaker trip or the RESET button will not stay engaged, unplug the air conditioner immediately and contact TURBRO Customer Support. NOTE: • Do not use this device to turn the unit on or off. - Page 7 PARTS PARTS NAME QUANTITY Hose Inlet 1 unit Exhaust Hose 1 unit Hose Outlet 1 unit Window Panel 1 unit Adjustment Panel 1 unit Extension Panel 1 unit Screws and Nuts 2 units for Adjustment Panel Remote Control...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Installation Location ● The air conditioner should be placed on a firm floor to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. -
Page 9: Installing In Double-Hung Sash / Sliding Casement Windows
Installing in Double-Hung Sash / Sliding Casement Windows A. Required Parts: ● Foam Seal ● Window Panel ● Adjustment Panel ● Extension Panel ● Screw and Nut B. Assembly: a. Cut the foam seal to the proper length and attach it to the window sash. - Page 10 Place the assembled window panels on the window sash and adjust until it fully covers the width of your window. Window width 67 inches Max./11 inches Min Window width 67 inches Max./11 inches Min NOTE: If the width of your window is smaller than 25.6 inches, please remove the adjusting panel from the window panel and then cut the window panel to make the width of the window panel the same width as your window.
-
Page 11: Installing Exhaust Hose
Installing Exhaust Hose COOL & DRY MODE: The air exhaust hose should be connected to the portable air conditioner. FAN MODE: The air exhaust hose can be disconnected from the portable air conditioner in fan mode or left connected. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS Control Panel Sleep Button Child Lock Button Timer Button Fan Speed Button Mode Button Power Button Control Knob and Screen Operating from the Control Panel The control panel enables you to manage all the main functions of the appliance. - Page 13 COOL MODE Ideal for hot muggy weather when you need to cool and dehumidify the room. ● Press the Mode Button until the snowflake indicator lights up. The screen will appear ● Turn the knob left or right to select your desired temperature 61°F-90°F (16°C-32°C).
-
Page 14: Operating From The Remote Control
● In sleep function, the AC temperature will increase by 2°F in the first hour. After another hour the temperature will increase by 2°F and then keep on running at this temperature. ● Press the Sleep Button again to cancel this function and the moon indicator will disappear. - Page 15 SYMBOLS MEANING SYMBOLS MEANING COOL MODE SIGNAL DRY MODE TEMPERATURE SCALE SWITCH FAN MODE TIMER HIGH FAN SPEED SLEEP FUNCTION Not available for this model TEMPERATURE TIMER FUNCTION ● Press the “Timer” Button, “TIME ON/ TIME OFF” will appear and digital will flash on the screen.
-
Page 16: Self-Diagnosis
“Water Drainage Methods”. Water Drainage Methods TURBRO portable air conditioner comes with an auto-evaporation system. The unit can automatically evaporate the condensated water. There is no need to empty the water except in humid conditions. When you run the dry mode, then it’s required to install the hose as the unit might pull more water from the air. - Page 17 Tilt the unit by lifting it slightly upwards from the front until no more water drains from the outlet. e. After the water is drained, firmly replace the cap on the lower drain. f. Restart the air conditioner by pressing the power button. Ensure that the unit is in COOL or DRY mode. The compressor will start approximately 3 minutes after the unit is turned on.
-
Page 18: Tips For Correct Use
Tips for Correct Use Follow these tips to get the best performance of your appliance: ● Close the windows and doors in the room to be cooling. When installing the appliance semi-permanently, you should leave a door slightly open (as little as 0.4 inches / 1 cm) to guarantee correct ventilation. -
Page 19: Cleaning
CLEANING Before cleaning or maintenance, turn the appliance off and wait for a few minutes, then unplug from the electrical outlet. Cleaning the Outer Case You should clean the appliance with a slightly damp cloth then dry with a dry cloth. -
Page 20: Maintenance Checklists
Maintenance Checklists Pre-Season Maintenance Checklist ● Check the power cord for any cuts or exposed wiring. ● Check the ground prong is still on your power plug. ● Clean the air filter. ● Check whether the hose adapters and exhaust hose are installed tightly and free of damage. -
Page 21: Troubleshooting
TROUBLESHOOTING Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, please contact TURBRO customer team via support@turbro.com. ISSUE POSSIBLE CAUSE POSSIBLE REMEDY Does not start Didn’t plug into the electrical A. - Page 22 ISSUE POSSIBLE CAUSE POSSIBLE REMEDY Produces an Air filter clogged Clean the air filter (Refer to ‘Cleaning the unpleasant Air Filters’) smell The unit has a self-diagnosis Refer to the ‘Self-Diagnosis’ E0, E1, E2, system to identify a number of malfunctions.
-
Page 23: Warranty & Customer Support
WARRANTY & CUSTOMER SUPPORT WARRANTY TURBRO provides a 1-year limited warranty for TURBRO products from the date of purchase, subject to the following conditions and limitations outlined below. What is covered? ● This warranty is limited to the repair or replacement of part(s) proved to be defective in material or workmanship, after said defect is confirmed by the manufacturer's inspection. - Page 24 323 438-3334...
