AECO SMC-12 NO SS BC HF AGD1 Series Operating Instructions

GB
Operating Instructions
According to:
Directive 2014/34/EU ( ATEX )
Annex II P1.0.6 group II, equipment category
IECEx Certification system
www.aecosensors.com
ETC000468
1. Introduction
This manual should be read and understood in all its parts before proceeding
with installation of the sensor.

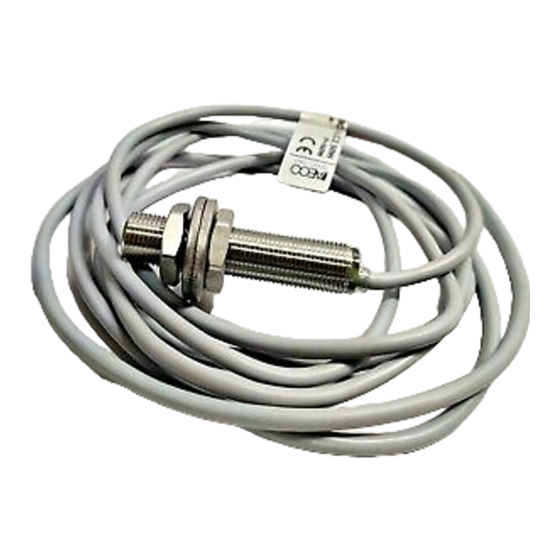

The Magnetic Sensors SMC-12 NO SS BC HF
be used in a potentially explosive atmospheres with presence of GAS and/or
DUST. They are designed and produced according to the requirements of the
following standards:
•
EN 60079-0:2012+A11:2013 e EN 60079-18:2015
•
IEC 60079-0:2011 e IEC 60079-18:2014
All sensors of this series are covered by the following certificate:
•
EU Type Examination Certificate n° IMQ 12 ATEX 016 X
•
Certificate of Conformity (CoC) n° IECEx IMQ 16.0014X
issued by Notification Body IMQ spa.
2. Installation and Startup
The sensor must be installed, connected and activated only by specialized
personnel. Personnel must be familiar with the types of protection anti-ignition,
the production rules and regulations in the potentially explosive area. The user
is solely responsible for the choice and the use of sensor suitable to the final
application. When installing the sensor observe the following requirements:
Check whether the classification of the sensor is suitable for the application
(see''ATEX Marking'' to paragraph 5 and marking on the equipment).
Make sure that the connection cable of the sensor does not have the
endings too tight. Moreover it must not prevent the movement of people
and/or things.
Do not touch uninsulated parts of the connecting cable of the sensor before
having it disconnected from the supply voltage. Do not install the sensor
during a thunderstorm with lightning.
Make sure that the sensor housing is always ground wired.
If the cable is subject to movement, do not place the sheath with bending
radius too short; Pay attention to the mounting of the parties subject to
movement and to the fixed ones.
Separate the power cables from the connecting cable of the sensor.
Protect the sensor cable
IEC60079-14(for IECEx) standards.
1G/1D
FM011EX Rev. B
AGD1 series, are intended to
(for ATEX Directive)
(for IECEx system)
(for ATEX Directive)
(for IECEx system)
according to EN 60079-14 (for ATEX) and
3. Sensor identification
SMC-12 NO SS BC HF
The
''Code'' and ''Description''. The diagrams for the decoding are shown below.
3.1 Code diagram
YSM NNNNNN
Progressive number
Magnetic sensor intended for use in the explosive atmospheres
according to 2014/34/EU ATEX Directive and IECEx Certification
system.
3.2 Description diagram
SMC-12 NO SS BC HF
3.3 Product series
The magnetic sensors SMC-12 NO SS BC HF
models listed below :
YSM000026 SMC-12 NO SS BC HF LC2 AGD1
YSM000027 SMC-12 NO SS BC HF LC5 AGD1
YSM000028
SMC-12 NO SS BC HF LC10 AGD1
( Code )
4. Electrical and Mechanical Characteristics
The electrical and mechanical characteristics of this series are shown in Table 1:
Tab. 1 - Electrical and Mechanical Characteristics
50
CH.17
Ø 24
= =
4
Characteristics
Sensing distance (Sn)
Hysteresis (''H'')
%Sn
Output type
Max switching voltage
Max switching current
Max switching power
W/VA
Max switching frequency
Ambient temperature range
IP rating
Housing material
Cable
2mt, 5mt or 10mt
WIRING DIAGRAM
NO
AGD1
series is only identified by the
AGD 1
Equipment category "1"
according to 2014/34/EU Directive.
Potentially explosive atmosphere
with GAS and/or DUST.
LC2
Cable length "2mt".
LC5 Cable length "5mt".
LC10
Cable length "10mt".
Cable material: PUR/TPE shielded-Halogen free
Housing material: Stainless steel-AISI316
Magnetic Sensor with cylindrical enclosure
"M12x1" and "NORMALLY OPEN" output
AGD1 series includes the
( Description )
15
Dimensions ''mm''
Models
SMC-12 NO SS BC HF AGD1
> 20 with M20 magnet
mm
<10
NO
230
V
A 0.5
50
230
Hz
°C -25 ÷ +70
IP 67
Stainless steel-AISI 316
2 x 24 AWG PUR/TPE HF shielded
RED
BLACK
SHIELD
