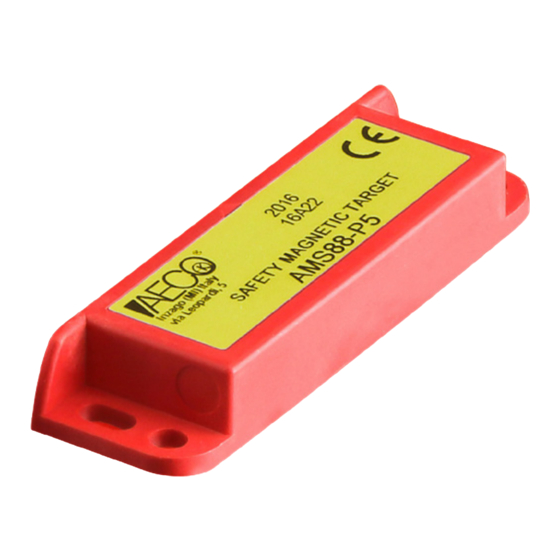

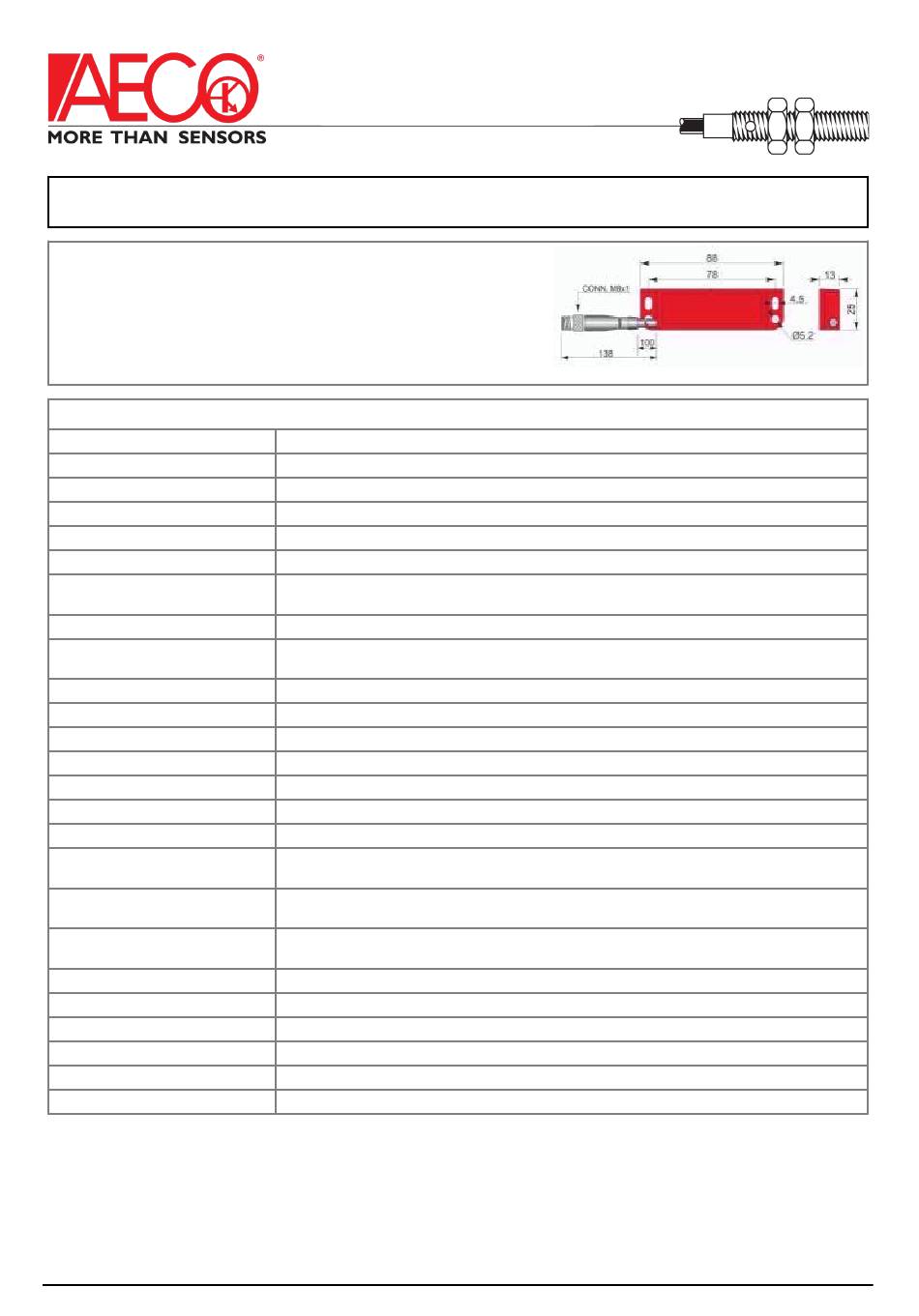

AECO SMS88-P5 2NC H1C PL Quick Start Manual

Part number: QMP000042 - Model: SMS88-P5 2NC H1C PL

TECHNICAL CHARACTERISTICS

Rated operational voltage Ue:
Rated operational current Ie:
Max switching load:
Function:
Termal current ITh:
Rated insulation voltage Ui:
Rated impulse withstand voltage
Uimp:
Electrical endurance:
Assured operating
distance Sao:
Assured release distance Sar:
Repeat accurancy:
Switching distance:
Response time:
SIL level (SIL CL):
Performance level (PL):
Safety category:
B10d for each channel:
Conformig to the standard:
Conforms to the directives:
Temperature limits:
Protection degree:
Pollution degree:
Schock resistance:
Vibrations resistance:
Housing material:
AECO S.r.l.
24 Vac/dc
0.25A
6W (resistive load)
2NC (with magnetic actuator present)
0.25A
60Vac / 75Vdc
1.5KV
1 million of cycles
5 mm with target AMS88-P5 and 8 mm with target AMS88-P8
15 mm with target AMS88-P5 and 20 mm with target AMS88-P8
< 10%
200Hz
up to SIL3 according to IEC 62061 e EN 62061
up to PL e according to EN ISO 13849-1
up to 4 according to EN ISO 13849-1
400.000 cycles (full load: DC12, 24V, 0.25A) e 20.000.000 of cyles ( with AECO safety
Module)
EN 60947-1, IEC 60947-1, EN 60947-5-1, IEC 60947-5-1, EN 60947-5-2, IEC 60947-5-2,
EN 60947-5-3 , IE
2006/42/EC - Machinery Directive and 2014/30/EU - Electromagnetic Compatibility
Directive
-25 ÷ +80°C
IP67
3
30gn -11ms according to IEC 60068-2-27 and EN 60068-2-27
10gn-(10 ... 150Hz) according to IEC 60068-2-6 and EN 60068-2-6
PBT +FV
20065 Inzago (MI) Italy - Via G. Leopardi, 5 - Tel. +39 02 954381 - Fax +39 02 9548528
http://www.aecosensors.com - e-mail: aeco@aecosensors.com
Dimension in mm
