AECO SMC-12 NO AGD3 Operating Instructions

GB
Operating Instructions
According to EU Directive 94/9 EC ( ATEX )
Annex VIII group II, equipment category
www.aecosensors.com
ETC000469

1. Introduction

This manual should be read and understood in all its parts before proceeding
with installation of the sensor.
The Magnetic Sensors SMC-12 NO
in a potentially explosive atmospheres with presence of GAS and/or DUST.
They are designed and produced according to the requirements of the
following european standards:
* EN60079-0 - Explosive atmospheres - Part 0 : Equipment - General requi-
rements.
* EN60079-18 - Explosive atmospheres - Part 18 : Equipment protection by
encapsulation ''m''.

2. Installation and Startup

The sensor must be installed, connected and activated only by specialized
personnel. Personnel must be familiar with the types of protection
anti-ignition, the production rules and regulations in the potentially explosive
area. The user is solely responsible for the choice and the use of sensor
suitable to the final application. When installing the sensor observe the
following requirements:
Check whether the classification of the sensor is suitable for the application
(see''ATEX Marking'' to paragraph 5 and marking on the equipment).
Make sure that the connection cable of the sensor does not have the
endings too tight. Moreover it must not prevent the movement of people
and/or things.
Do not touch uninsulated parts of the connecting cable of the sensor before
having it disconnected from the supply voltage. Do not install the sensor
during a thunderstorm with lightning.
Make sure that the sensor housing is always ground wired.
If the cable is subject to movement, do not place the sheath with bending
radius too short; Pay attention to the mounting of the parties subject to
movement and to the fixed ones.
Separate the power cables from the connecting cable of the sensor.
Protect from the light the input zone of the cable into the housing .
3G/3D
FM012Ex Rev. A
AGD3 series, are intended to be used

3. Sensor identification

SMC-12 NO AGD3
The series is only identified by the ''
and '' Description ''. The diagrams for the decoding are shown below.

3.1 Code diagram

YSM NNNNNN
Progressive number
Magnetic sensor intended for use in the explosive atmospheres
according to EU Directive ATEX 94/9 EC.

3.2 Description diagram

SMC-12 NO AGD
3
LC5
LC10

3.3 Product series

The magnetic sensors series SMC-12 NO
models listed below :
YSM000014
SMC-12 NO AGD3
YSM000015 SMC-12 NO LC5 AGD3
YSM000016 SMC-12 NO LC10 AGD3
( Code )

4. Electrical and Mechanical Characteristics

Characteristics
Sensing distance (Sn) mm
Hysteresis (''H'')
mm
Output type
Max switching voltage
Max switching current
Max switching power W/VA
Max switching frequency
Ambient temperature range
IP rating
Housing material
Cable
2mt, 5mt or 10mt
WIRING DIAGRAM
NO
Code ''
Equipment category "3"
Potentially explosive atmosphere
with GAS and/or DUST.
Cable length "2mt".
Cable length "5mt".
Cable length "10mt".

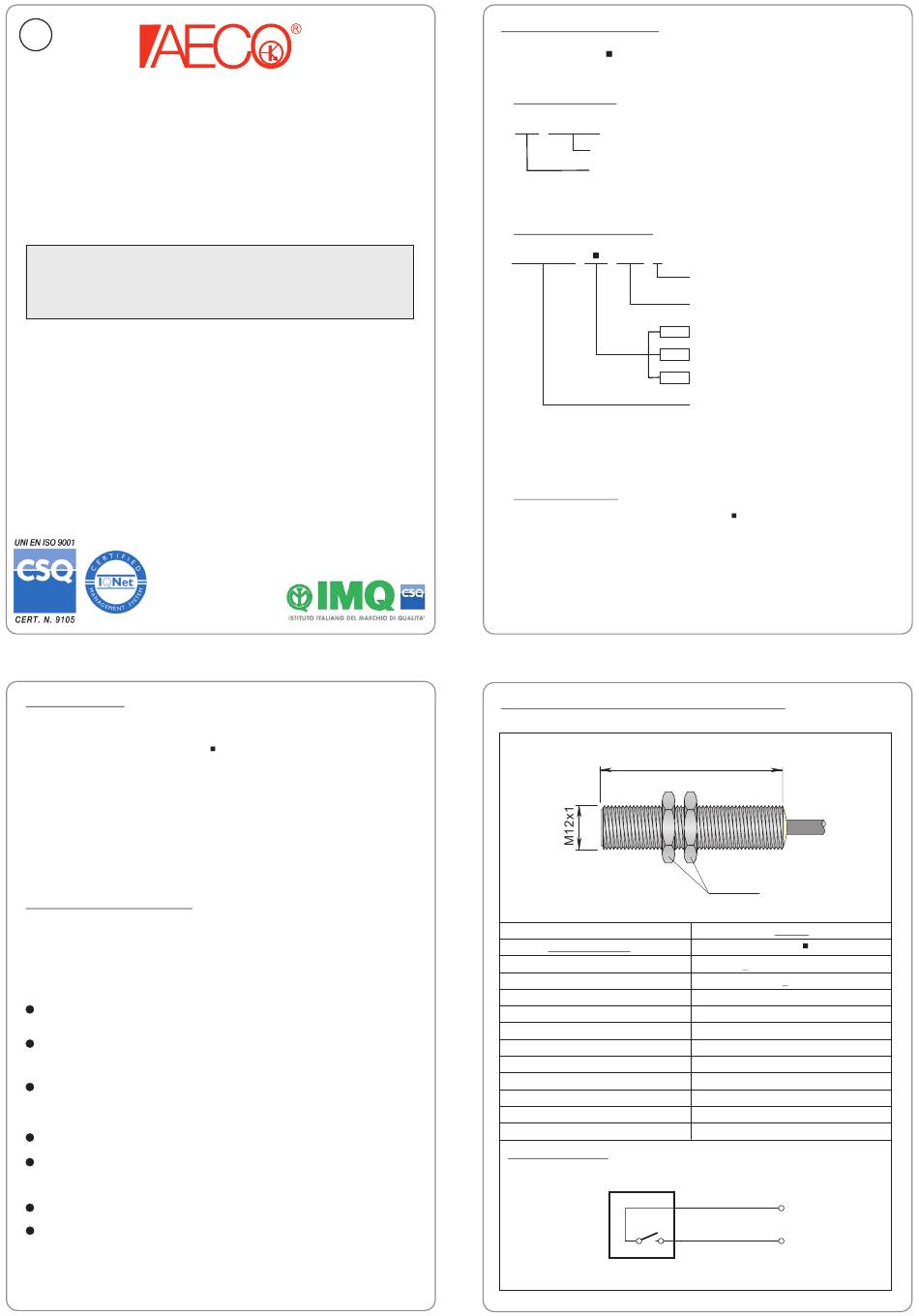

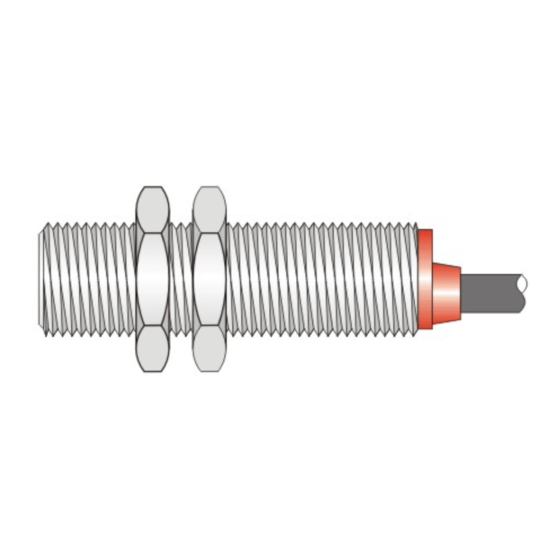

Magnetic Sensor with cylindrical housing
"M12x1" and "NORMALLY OPEN" output
AGD3 includes the
( Description )
50
CH17
Dimensions ''mm''
Models
SMC-12 NO AGD3
> 20 with M20 magnet
> 4
NO
V 230
0.5
A
50
230
Hz
°C
-25 ÷ +70
67
IP
Nickel-plated Brass
2 x 0.25mm² PVC
BROWN
BLUE
