Harmonic XOS Quick Start Manual

Warner Media - XOS - Quick Start Guide
1. Unpacking and racking
1. Use this list to ensure that your order is complete.
Quantity Description
1 XOS Server ‐ 1U HPE DL360 G10
2 Power cable
8 Micro BNC to BNC cable
1 Front bezel
1 Rack mounting kit for 1U HPE DL360 G10
1 USB to Ethernet adapter
1 Quick Start Guide
2. Remove the XOS and associated accessories from the box.
3. Mount the XOS in the rack.
The XOS can be mounted in a 19" rack.
- Ensure that it is secured in the rack.
- Maintain air flow around the XOS.
- Do not place another device directly on the top of the XOS.
3. Configure IP addresses
1. Use the USB to Ethernet adapter to connect a laptop to the USB port on
the front panel as shown below:
2. Power on the XOS.
- Connect the power cord to the power supply on the rear panel.
- Connect the cable to the power source and turn on the power(Front Panel
Button).
- Wait for the XOS to complete the boot process(~6 min).
2. Cabling

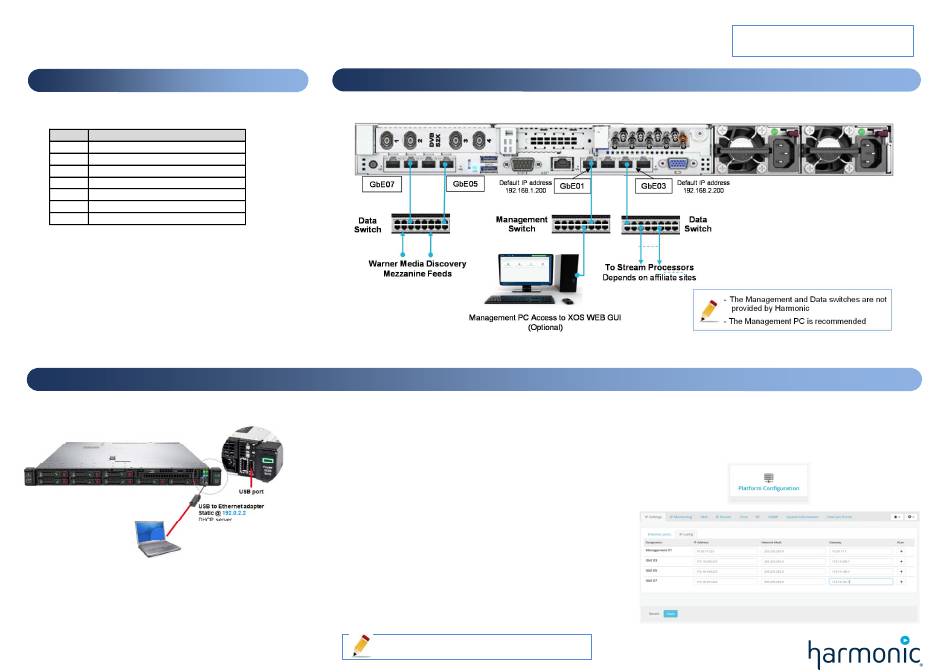

Follow the diagram below to perform the XOS cabling.
3. Power on the Laptop.
- In a web browser (Google Chrome), type the IP address ( https://192.0.2.2 )
and press Enter.
4. Enter the following credentials and click Log in:
- Login: xos
‐ Password: xos-user
5. Select the Platform Configuration tile and click Launch.
6. Select the IP Settings tab and then the Ethernet Ports tab.
7. Enable Ports 5 and 7.
8. Select the IP Config tab (see next panel).
9. You can change the IP parameters for the following ports based on your IP
plan:
- Management 01 port (GbE01 – Default: 192.168.1.200)
- Output - Data GbE03 port (Default: 192.168.2.200)
- Input 1 - Data GbE05 port – (set IP address, subnet mask, Gateway)
- Input 2 - Data GbE07 port - (set IP address, subnet mask, Gateway)
10. Click Save.
11. Remove the USB-Ethernet adapter from the front panel of the XOS.
12. Install the front bezel.
If you don't have a Management PC, keep the laptop
connected until you complete the configuration (Step 8).
Contacting Harmonic:
WM‐CBAND‐HELP@harmonicinc.com
- The Management and Data switches are not
pprovided by Harmonic
- The Management PC is recommended
Under the Platform Configurations tile -> IP Settings tab, enable Ports 5
and 7 for the Source Multicast IP inputs. Set the port physical IP addresses
according to your network switch IP assignments. Click Save.
