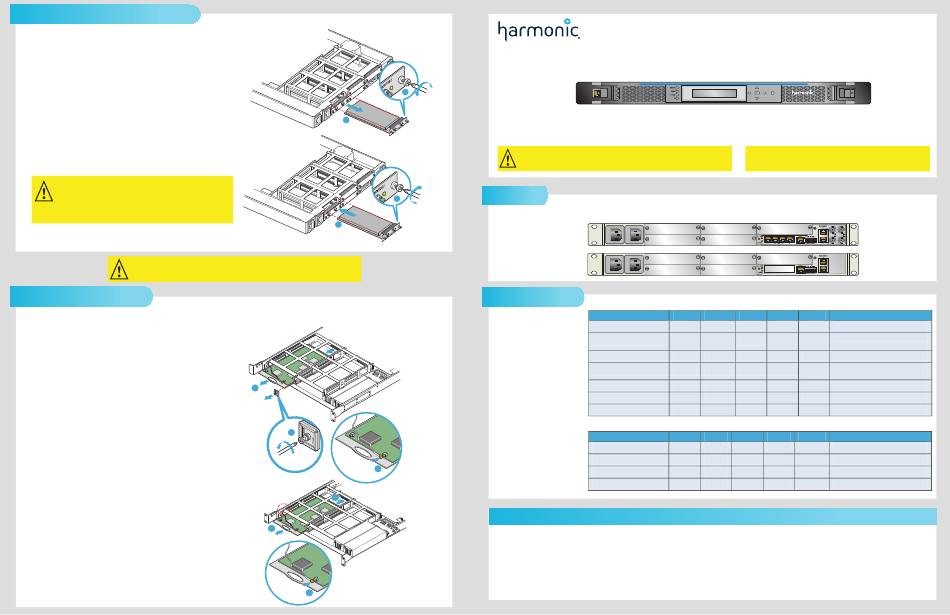

Harmonic Electra 9200 Component Replacement Manual

Removing and Replacing an Input/Output (I/O) Module

Note: The device must be turned off when removing and replacing
an I/O module. Use NMX or Standalone mode (ProStream only)
to make sure the service configuration is cleared before powering
down the system.
To remove an I/O module:
1. Turn off the device.
2. Using a Phillips-head screwdriver, remove the two screws
attaching the module to the back of the chassis, as shown in step 2.
3. Pull firmly on the module to remove it from the chassis, as
shown in step 3.
To replace an I/O module:
1. Insert the module into an appropriate empty slot on the back of the chassis,
as shown in step 1.
Warning Make sure the module is level and goes into the device
:
smoothly without binding or scraping other modules.
The module must slide easily until you feel it engage
the internal connector and you see that it is flush with
the back of the device. Do not force the module.
2. Using a Phillips-head screwdriver, secure the module to the chassis, as
shown in step 2.
Warning: Wear the appropriate ESD protection when unpacking modules from their antistatic packing material.
Unpack and handle the module away from electric motors, transformers, and similar machinery.

Removing and Replacing an AVPM Card

Note: The device needs to be turned off when removing and replacing
an AVPM card.
To remove an AVPM card:
1. Turn off the device.
2. Remove the bezel.
3. Remove the fan tray assembly.
4. Using a Phillips-head screwdriver, remove the screw attaching
the card retainer to the chassis, as shown in step 4.
5. For the Electra 9200, if a mini-SDI connector is present,
disconnect the connector identified in step 5.
6. Grab the card handle and slide the card from the chassis,
as shown in step 6.
Note: When facing the front of the device:
The bottom-left card is card 1. The top-left card is card 3.
The bottom-right card is card 2. The top-right card is card 4.
To replace an AVPM card:
1. From the front of the device, insert the card part way into
the chassis, as shown in step 1.
2. For the Electra 9200, if necessary, reinstall the mini-SDI
connector to the card, as shown in step 2.
Note: On the Electra 9200, the cables for cards in slots 1 and 3 should
be tucked under the card cage so they don't get pinched,
as indicated by the red circle.
3. Slide the card the rest of the way into the chassis until the module engages
with the chassis connector, as shown in step 3.
4. Reinstall the card retainer.
5. Reinsert the fan tray.
6. Reinstall the bezel.
2 2
3
2
2
1
6
4
5
5
3
1
2
Electra™ 9200 and ProStream
Component Replacement Guide
For complete Electra 9200 installation instructions, refer to the Electra 9200 Installation Guide.
For complete ProStream 9100 installation instructions, refer to the ProStream 9000 Installation Guide.
Warning: The illustrations in this guide show the cover of the device removed. The illustrations were
created with the cover removed for ease of explanation. The cover should never be removed.

Module Slots

The illustrations below show the slot numbers of the dual power supply model of the Electra 9200 (ELC-9200D) and the ProStream 9100.
Slot 3
Slot 1
Electra 9200
Slot 3
Slot 1
ProStream 9100

Module Slot Configurations

This table shows module
FLEX -1
configurations available
for the Electra 9200 and 9200D.
IOM-RAC2
Note: The AHC-561 audio card
AHC-RAC
is being deprecated on
AHC-561
the Electra 9200/9200D.
IOM-RAC2 and AHC-RAC
8VSB
are the recommended
audio cards for that
ASI Out
encoder.
ASI In
This table shows module
Quad GbE
configurations available
for the ProStream 9100. Dual GbE
8VSB
ASI-SCR
Technical Support
For support in Russia:
For support in the Americas:
Telephone (Toll Free) +1 888 673 4896 Telephone: +7 495 926 4608
Email: support.sm@harmonicinc.com
Telephone (Local) +1 408 490 6477
Email: support@harmonicinc.com
For support in Europe, Middle East: For support in Africa:
Telephone: +44 1252 555 450 Telephone: +972 54 900 7740
Email: support.emea@harmonicinc.com Email: support.sm@harmonicinc.com
9100
®
Note: Some procedures in this guide may vary between devices. Please read the
instructions carefully before replacing any components on your device.
Slot 5
Slot 4
Slot 2
Slot 5
Slot 4
Slot 2
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5
X X
X
Note: Must use slot 3
X X X X X
X X X X
Note: Cannot be used with FLEX
X X X
X X
X X X
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5
X X
X X
X X X X X Up to 4 per chassis
X X X X X Up to 5 per chassis
For support in China:
F
or support in India:
Telephone: +852 2116 1119
Telephone: +91 22 6792 9291
Email: chinatechsupport@harmonicinc.com
Email: support.sm@harmonicinc.com
For support in Asia-Pacific: On the web:
Telephone: +852 2116 1119
www.harmonicinc.com/services-support
Email: hongkongtechsupport@harmonicinc.com
1 or 2 per chassis
1 per chassis
1 to 5 per chassis
1 to 4 per chassis
1 per chassis
1 per chassis
1 per chassis
1 per chassis
1 or 2 per chassis
015-1806-001 Rev. E
