S45-1750P
P/N:
Best Practice
Termination Instructions
Simply45® ProSeries Pass Through
Shielded RJ45 Modular Plugs
(patent pending)
Congratulations on purchasing the Simply45® S45-1750P
ProSeries Pass Through Shielded External Ground RJ45 Modular
Plugs for Cat6 STP Cables PE Insulated.

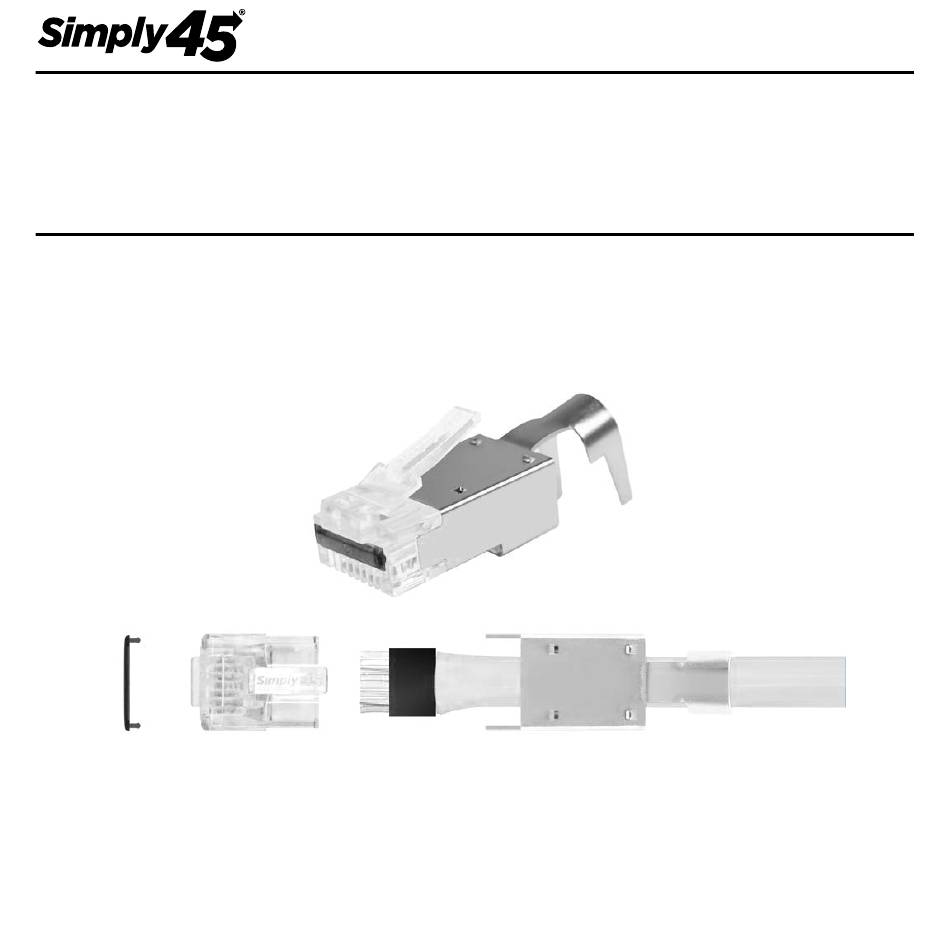

Our ProSeries Pass Through RJ45 plugs include the
uniquely designed and patent pending Cap45™.
Advertisement
Table of Contents
Related Manuals for Simply45 S45-175
Summary of Contents for Simply45 S45-175
- Page 1 Termination Instructions Simply45® ProSeries Pass Through Shielded RJ45 Modular Plugs (patent pending) Congratulations on purchasing the Simply45® S45-1750P ProSeries Pass Through Shielded External Ground RJ45 Modular Plugs for Cat6 STP Cables PE Insulated. Our ProSeries Pass Through RJ45 plugs include the...
- Page 2 Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend using the Simply45 5” Angled Flush Cutter (S45-801). Do not cut off the drain wire. Fold the drain wire straight back about 1inch (2.5cm) over the cable jacket.
- Page 3 STEP 4 Untwist and straighten the wire conductors. We recommend using the Simply45 Adjustable LAN Cable Stripper (S45-S01BL/YL) that has a wire straightener comb on the top. Next, align the wires in the correct alignment pattern (Type A or B).
- Page 4 STEP 6 Slide the Bar45 load bar as far back to the cable jacket as you can. Bar45 is designed to slide back almost touching the cable jacket. [NOTE: This is important for reducing the length of untwisted wire inside the RJ45 plug and improving termination performance].
- Page 5 STEP 8 STEP 9 Insert the loaded plug into the Simply45 Compress the crimper handles all the Heavy Duty RJ45 Crimp Tool (S45-C100/ way down with one swift and firm S45-C101). Make sure to completely motion until the handles release.
- Page 6 2 holes on the front of the plug. Push the posts into the plug until the Cap45 is snug to the plug body. You can view these instructions online and learn more Best Practices at www.simply45.com Simply45®, Cap45™, and Bar45™ are trademarks of Simply45 LLC © All rights reserved.
