S45-1150
P/N:
Best Practice
Termination Instructions
Simply45® Standard Series
Shielded RJ45 Modular Plugs
(patent pending)

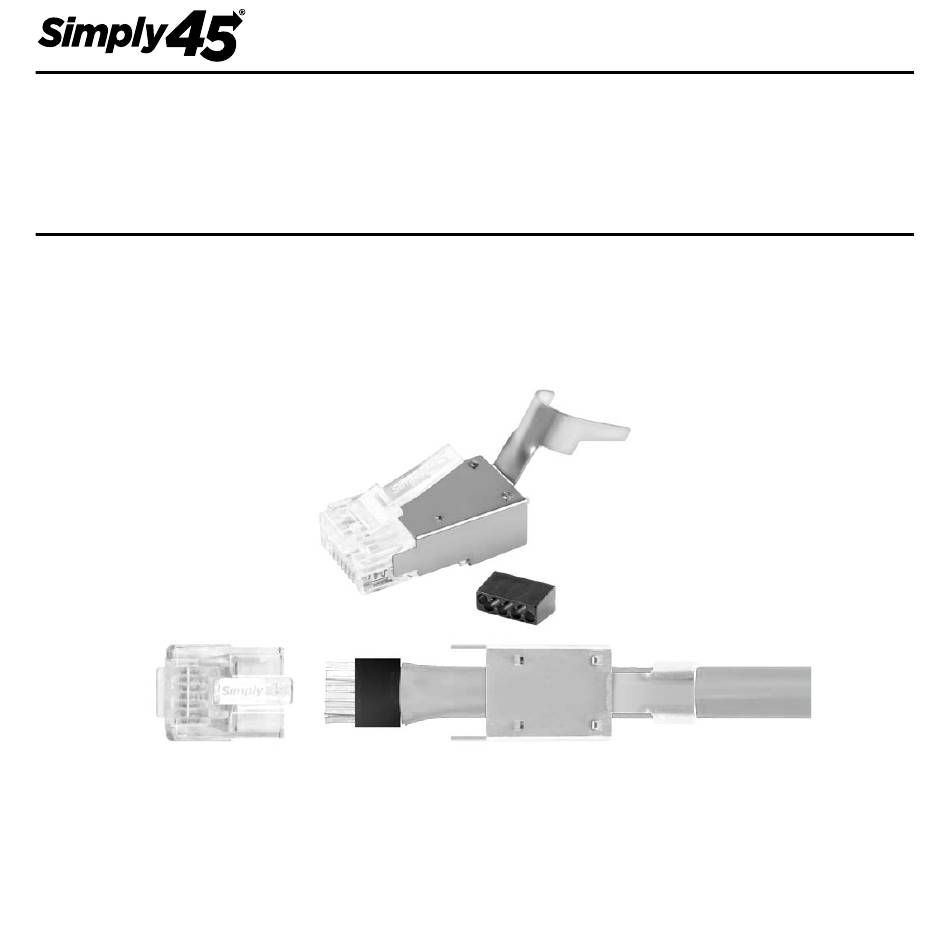

Congratulations on purchasing the Simply45® S45-1150
Standard Series Shielded External Ground RJ45 Modular
Plugs for Cat6 STP Cables PE Insulated. Our S45-1150 plugs
include the uniquely designed and patent pending Bar45™.
Advertisement
Table of Contents
Related Manuals for Simply45 RJ45
Summary of Contents for Simply45 RJ45
- Page 1 Simply45® Standard Series Shielded RJ45 Modular Plugs (patent pending) Congratulations on purchasing the Simply45® S45-1150 Standard Series Shielded External Ground RJ45 Modular Plugs for Cat6 STP Cables PE Insulated. Our S45-1150 plugs include the uniquely designed and patent pending Bar45™.
- Page 2 Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend using the Simply45 5” Angled Flush Cutter (S45-801). Do not cut off the drain wire. Fold the drain wire straight back about 1inch (2.5cm) over the cable jacket.
- Page 3 STEP 4 Untwist and straighten the wire conductors. We recommend using the Simply45 Adjustable LAN Cable Stripper (S45-S01BL/YL) that has a wire straightener comb on the top. Next, align the wires in the correct alignment pattern (Type A or B).
- Page 4 Slide the Bar45 load bar as far back to the cable jacket as you can. [NOTE: This is important for reducing the length of untwisted wire inside the RJ45 plug and improving termination performance]. Next, using the S45-801 Flush Cutter, trim the wire ends straight leaving about 0.4”...
- Page 5 STEP 8 STEP 9 Insert the loaded plug into the Simply45 Compress the crimper handles all the Heavy Duty RJ45 Crimp Tool (S45-C100/ way down with one swift and firm S45-C101). Make sure to completely motion until the handles release.
- Page 6 You can also use pliers (S45-802) to accomplish this task. You can view these instructions online and learn more Best Practices at www.simply45.com Simply45®, and Bar45™ are trademarks of Simply45 LLC © All rights reserved.
