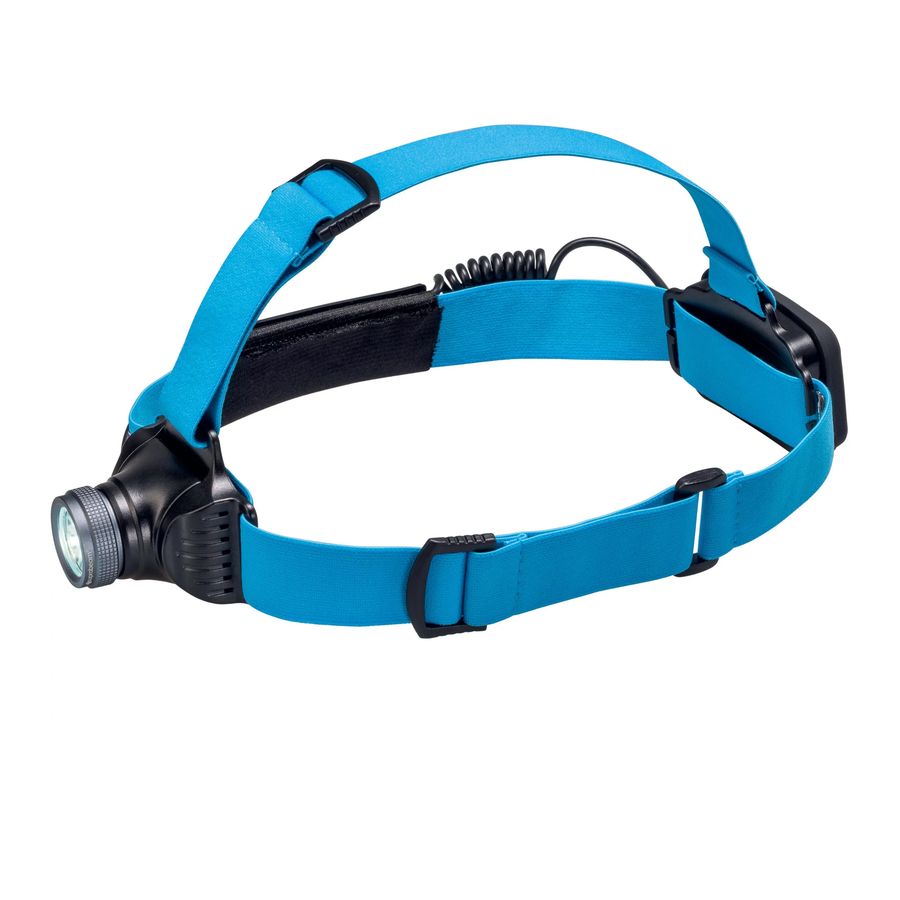

Suprabeam V3air - Headlamp Manual

Hyperfocus and head angle

Eye Safety
Risk Group 2
(IEC 62471)

Light control function

TRANSPORT LOCK

Changing battery

Specifications

OPERATING

The V3air has 3 light functions: Standard, Dim/ Memory and MAX.

You can access all of them by clicking or holding the button as shown in the diagram.

With the headlamp turned off, click the button to turn on the V3air. This will turn on the headlamp in Standard intensity, or at the last intensity level used. The headlamp saves the last intensity used in its memory (removing the battery will erase the memory of the headlamp. The next time the headlamp is turned on, it will start in Standard intensity). When the V3air is off, press and hold the button for 0.8 sec. to enter Dim-mode. The intensity will decrease and increase until the button is released.
With the headlamp turned on, press and hold the button for 0.8 sec. to enter MAX-mode. Repeat this to exit MAX-mode.

In any light mode, simply press the switch once to turn it off.

TRANSPORTATION LOCK

When the V3air is turned on, press and hold the button for 6 sec to turn off the headlamp and lock it for transportation. Press and hold the button for 6 sec to unlock the headlamp again.

HYPERFOCUS™

The light beam angle of the V3air is adjustable from 10º to 70º by sliding the head back and forth.

CHANGING HEAD ANGLE

The head can easily be rotated up to 85 degrees just by pulling it. The head will stay in the chosen angle.

BATTERIES

Pay attention to the polarity of the batteries when placing them in the V3air. To protect the environment, this product is compatible with rechargeable batteries 1.21.5V (not Li-ion 3.7V). We highly recommend using Premium type batteries only to ensure high quality light output and long lighting time. We can not guarantee the light data if using battery types of lower quality.

MAINTENANCE

Please make sure that the V3air is clean, especially around the movable parts. You can clean it with a damp cloth. Repairs may only be carried out by authorized personnel.

WARRANTY

We provide 5 years limited warranty. This warranty does not include normal maintenance and services and does not apply to batteries nor any products or parts which have been subject to modification, misuse, negligence, accident, improper repair by anyone other than SUPRABEAM.

DISPOSAL

Dispose this product in an environmentally compatible manner in accordance with national regulations, if in doubt about correct disposal please contact your municipal authority that can provide information about correct disposal.

EYE SAFETY

Do not look directly into the beam. The intense light can damage your eyes. The torch is classified in LED Risk Group 2 (IEC 62471)

For further information and instcructions, please go to suprabeam.com

Additional online information

FOR MORE INFO

Steiner A/S
P.O. Pedersens Vej 14A
DK-8200 Aarhus N
Phone: +45 87 52 52 12
Fax: +45 87 52 52 15
Contact: info@suprabeam.com
www.suprabeam.com
