Furrion C-FSFP37MW-A03 Installation Manual

6X L-MOUNT BRACKET KIT FOR RIGID
SOLAR PANEL WITH BOLT AND WASHERS
(SILVER)
6X KIT DE SUPPORT POUR MONTS EN L
POUR PANNEAUX SOLAIRES RIGIDES AVEC
BOLONÉES ET RONDELLES (ARGENT)
KIT DE MONTAJE CON 6 SOPORTES EN L
PARA PANEL SOLAR RÍGIDO CON ORNILLO Y
ARANDELAS (NEGRO)
Solar panel frame
C-FSFP37MW-A03 [2022128312]
INSTALLATION GUIDE .................................................................... EN
GUIDE D'INSTALLATION ................................................................ FR
L-mount bracket
GUÍA DE INSTALACIÓN .................................................................. ES
Solar panel frame
Furrion solar panel L-mount bracket is designed
to support the installation of single solar panel
unit, generally in off-grid installations. The long
hole makes it suitable for most solar panel module
installation.
WHAT'S IN THE PACKAGE
L-mount bracket
–
L-mount bracket, 6pcs
–
M8 x 25mm hex bolt, 12pcs
–
M8 split lock washer, 12pcs
–
M8 flat washer, 12pcs

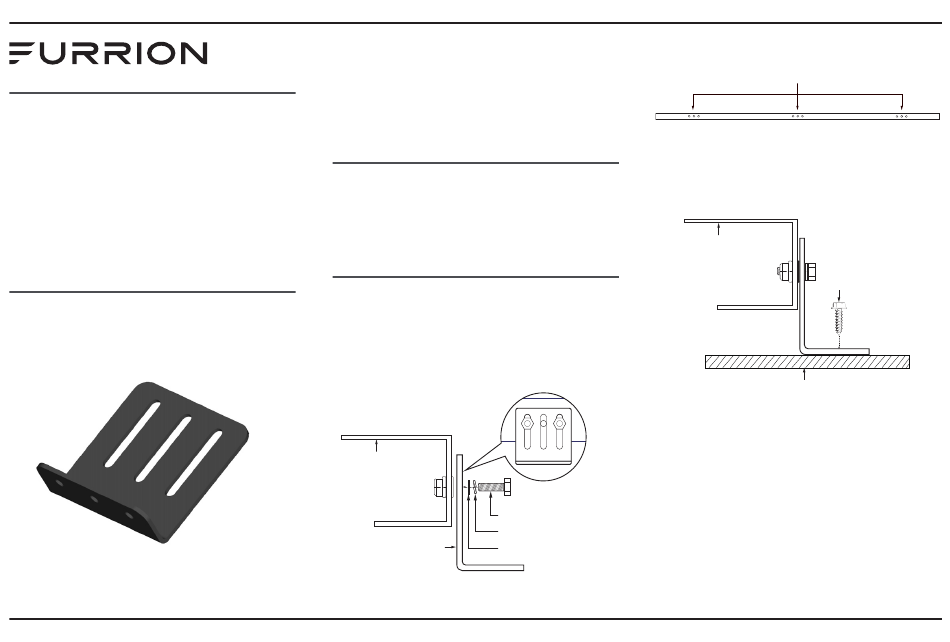

INSTALLATION
Side view
1. Make the L-mount bracket slots aligned with
the solar panel frame mounting holes, fit the
M8*25 hex bolt
L-mount bracket with provided one set nut:
M8 split lock washer
M8 flat washer
–
–
–
Solar panel frame
L-mount bracket
Side view
M8*25 hex bolt
M8 split lock washer
M8 flat washer
L-mount installation position
(both sides)
Solar panel frame side view
M8 x 25mm hex bolt *2
M8 split lock washer * 2
M8 flat washer *2
Side view
M8*25 hex bolt
M8 split lock washer
M8 flat washer
L-mount installation position
(both sides)
Solar panel frame side view
2. Repeat to install the other L-mount brackets.
3. Mount the solar panel to the mounting surface
through the L-mount bracket using hex self-
tapping screws (not provided).
Solar panel frame
Hex self-tapping screw
Mounting surface
L-mount installation position
(both sides)
Solar panel frame side view
