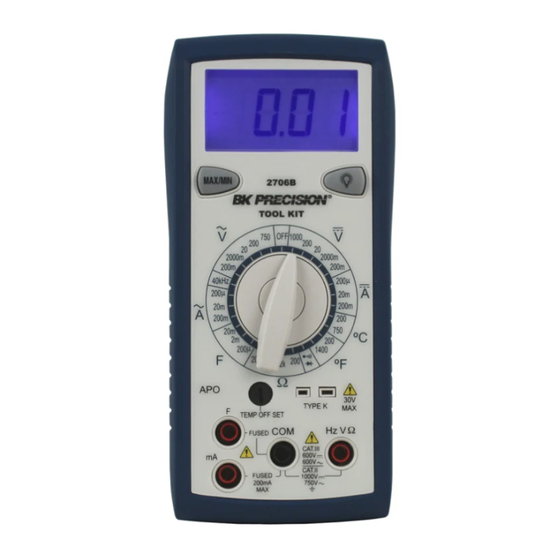

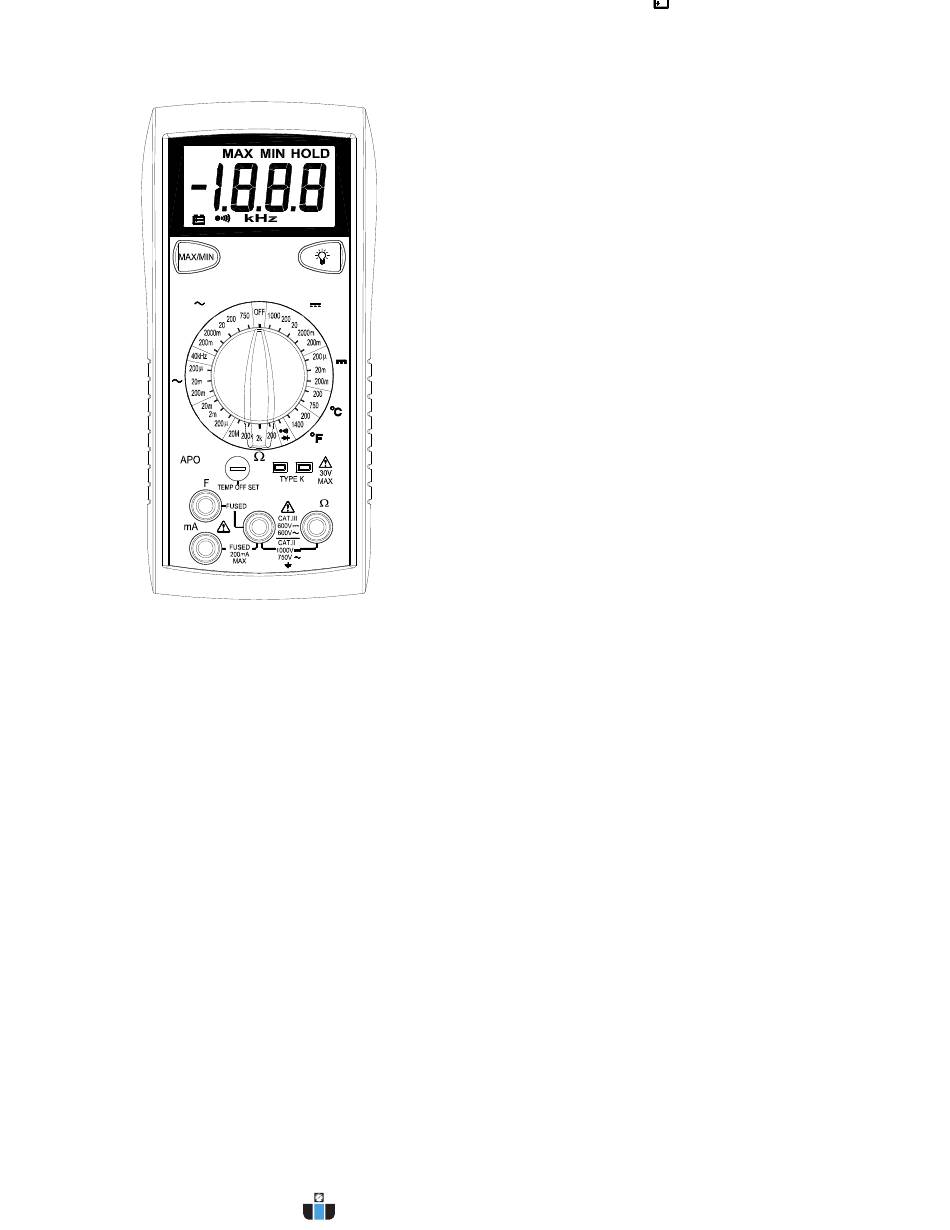

BK Precision 2706B Operating Instructions

OPERATING INSTRUCTIONS
MODEL 2706B
DIGITAL MULTIMETER
A
SAFETY INFORMATION
The following safety information must be observed to ensure maximum personal
safety during the operation at this meter:
Use the meter only as specified in this manual or the protection provided by the
meter might be impaired.
Test the meter on a known voltage before using it to determine if hazardous
voltage is present.
Do not use the meter if the meter or test leads look damaged, or if you suspect
that the meter is not operating properly.
Never ground yourself when taking electrical measurements. Do not touch
exposed metal pipes, outlets, fixtures, etc., which might be at ground potential.
Keep your body isolated from ground by using dry clothing, rubber shoes, rubber
mats, or any approved insulating material.
Turn off power to the circuit under test before cutting, unsoldering, or breaking
the circuit. Small amounts of current can be dangerous.
Use caution when working above 60V dc or 30V ac rms. Such voltages pose a
shock hazard.
When using the probes, keep your fingers behind the finger guards on the
probes.
Measuring voltage which exceeds the limits of the multimeter may damage the
meter and expose the operator to a shock hazard. Always recognize the meter
voltage limits as stated on the front of the meter.
SPECIFICATIONS
Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
Polarity: Automatic, positive implied, negative polarity indication.
Overrange: (OL ) or (-OL) is displayed.
Zero: Automatic.
Low battery indication: The "
1.888.610.7664
2706B
V
V
A
F
COM Hz V
" is displayed when the battery voltage drops
www.calcert.com
15
10 20
5
25
0 30
below the operating level.
Measurement rate: 2.5 times per second, nominal.
Auto power off: Approx. 25 minutes.
Operating environment: 0℃ to 50℃ at < 70% relative humidity.
Storage temperature: -20℃ to 60℃, 0 to 80% relative humidity.
Accuracy: Stated accuracy at 23 ℃±5℃, < 75% relative humidity.
Temperature Coefficient: 0.1 x (specified accuracy) per ℃. (℃ to 18℃, 28℃ to
50℃).
Altitude: 6561.7 feet (2000m).
Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
Battery life: 150 hours typical with carbon-zinc.
Dimensions: 165mm (H) x78mm (W) x42.5mm (D).
Weight: Approx. 10.0 oz.(285g) including holster.
Accessories: One set tes t leads, one spare fuse, 9V battery (installed), and
Operating Instructions.
DC VOLTS
Ranges: 200mV, 2000mV, 20V, 200V, 1000V
Resolution: 0.1mV
Accuracy: ± ( 0.5% rdg + 1 dgt)
Input impedance: 10MΩ
Overload protection: 1000VDC or 750VAC rms
600VDC/AC rms 15 seconds on 200mV range
AC VOLTS
(50Hz - 500Hz)
Ranges: 200mV, 2000mV, 20V, 200V, 750V
Resolution: 0.1mV
Accuracy:
± ( 1.2% rdg + 5 dgts) on 200mV to 20V ranges
± ( 2.0% rdg + 5 dgts) on 200V, 750V ranges
Input impedance: 10MΩ
Overload protection: 1000VDC or 750VAC rms
600VDC/AC rms 15 seconds on 200mV range
CURRENT
Ranges: 200uA, 20mA, 200mA
Resolution: 0.1uA
DC accuracy: ± ( 1.0% rdg + 1 dgts)
AC accuracy: (50Hz ~ 500Hz)
± ( 1.5% rdg + 5 dgts)
Input protection: 0.25A/500V fast blow ceramic fuse
RESISTANCE
Ranges: 200Ω , 2kΩ , 200kΩ , 20MΩ
Resolution: 0.1Ω
Accuracy:
± ( 1.0% rdg + 4 dgts) on 200Ωto 200kΩranges
± ( 2.0% rdg + 4 dgts) on 20MΩrange
Open circuit volts: 0.3Vdc (3.0Vdc on 200Ωrange)
Overload protection: 500VDC or AC rms
CONTINUITY
Audible indication: Less than 100Ω
Response time: 100ms
Overload protection: 500VDC or AC rms
DIODE TEST
Test current: Approx. 1.0mA
Accuracy: ±(1.5% rdg + 3dgts)
Open circuit volts: 3.0Vdc typical
Overload protection: 500VDC or AC rms
CAPACITANCE
Ranges: 200uF, 2mF, 20mF
Resolution: 0.1uF
Accuracy: ±(4% rdg + 10 dgts)
Test frequency: 21Hz
Test voltage: <3.0V
Input protection: 0.25A/500V fast blow ceramic fuse
FREQUENCY
(Autoranging)
Range: 10Hz to 40kHz
Resolution: 1Hz
Accuracy: ±(0.1% rdg + 3 dgts)
Sensitivity: 3.5V RMS min
Overload protection: 500VDC or AC rms
