© 1998 Kohs & Company, Inc - Clarkston, Michigan 48348
New York Central J3a 'Hudson'
OPERATION AND MAINTENANCE INSTRUCTIONS

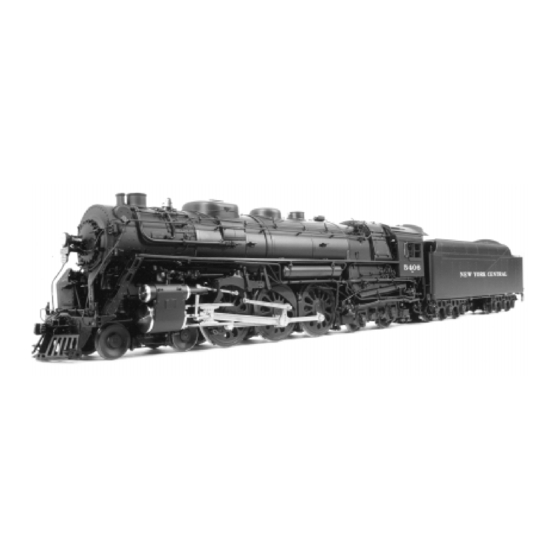

The Kohs & Company New York Central J3a 'Hudson' locomotive is an exact scale replica of the
original prototype. It is constructed of formed and fabricated brass and incorporates many scale
operational features. Although the model is very sturdily built, the boiler, tender shell and par-
ticularly the detailing are very susceptible to damage by rough or careless handling. To prevent
damage, please exercise great care in unpacking and handling the model. The locomotive is best
handled by lifting under the pilot 'horns' and rear cab deck. When touching the painted
surfaces be advised to wear the supplied gloves to protect the finish.
This locomotive model is designed to operate on Direct Current (DC) electricity. Any application
of Alternating Current (AC) WILL DESTROY THE INTERNAL ELECTRONIC COMPO-
NENTS OF THIS MODEL. Kohs & Company will not be responsible for damage caused by the
application of AC power to the model. We will offer further power supply specifications under
the heading of 'Power Supply Requirements', please make note of these recommendations.
Before unpacking, handling or operating this model PLEASE TAKE THE TIME TO FULLY
READ THIS MANUAL. This is a small investment in time to protect your substantial financial
investment and to prevent unnecessary disappointment and frustration.
Advertisement
Table of Contents
Related Manuals for Kohs & Company New York Central J3a Hudson
Summary of Contents for Kohs & Company New York Central J3a Hudson
- Page 1 © 1998 Kohs & Company, Inc - Clarkston, Michigan 48348 New York Central J3a 'Hudson' OPERATION AND MAINTENANCE INSTRUCTIONS The Kohs & Company New York Central J3a 'Hudson' locomotive is an exact scale replica of the original prototype. It is constructed of formed and fabricated brass and incorporates many scale operational features.
- Page 2 PREPARING THE LOCOMOTIVE FOR OPERATION Although your 'Hudson' is ready to operate, a few preventive maintenance steps should be taken to ensure the smooth operation and longevity of the model. The locomotive has been lightly lubricated during assem- bly and testing, while this will suffice for initial operation and break-in, you may wish to further lubricate the side rod assemblies by applying 1 or 2 drops of good quality fine oil to areas where moving parts are in contact with each other (refer to figure #1).
- Page 3 Should you choose to use a less expensive power supply or one which does not meet the above criteria, undesirable operating characteristics may result as well as possible damage to the electronics used in the model. If you have questions regarding your selection, do not hesitate to contact us for advise. PREPARING THE SOUND SYSTEM FOR OPERATION The locomotive and tender contain a state-of-the-art sound system which digitally recreates actual locomo- tive sounds including steam whistle, bell, blowers, compressors, emergency relief valve and cylinder ex-...
- Page 4 NOTE: IF THE TENDER SOUND SYSTEM SWITCH IS LEFT ON, THE BATTERIES WILL BE DRAINED OF POWER EVEN IF ALL CONNECTIONS TO THE LOCOMOTIVE ARE NOT COMPLETE. Your 'Hudson' is also equipped with an electronic control for the re- verse-gear mechanism. The system responds to the polarity of the power reaching the model and not the movement of the model.
