© 2006 Kohs & Company, Inc - Clarkston, Michigan 48348
Pennsylvania K-4 'Pacific'
OPERATION AND MAINTENANCE INSTRUCTIONS

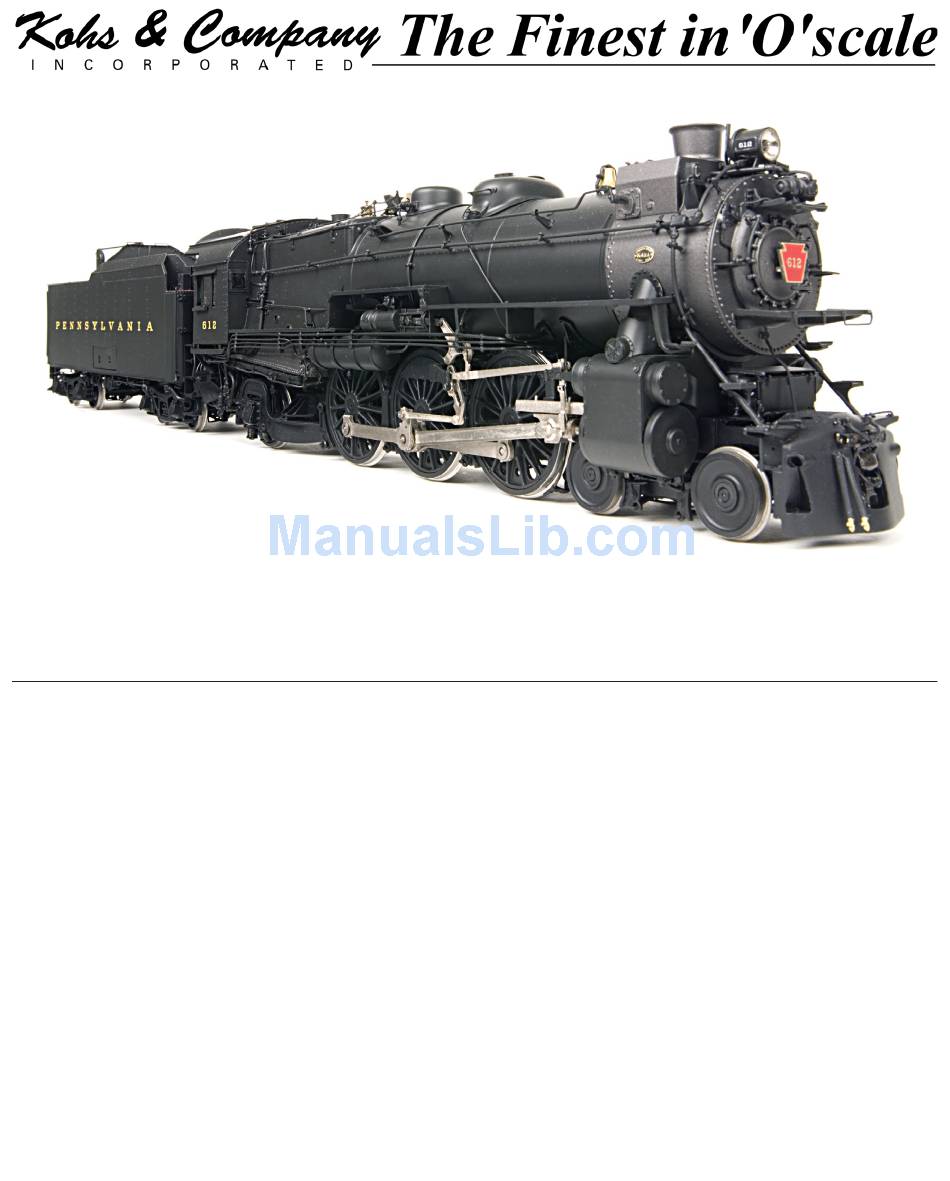

The Kohs & Company Pennsylvania K-4 locomotive is an exact scale replica of the original pro-
totype. It is constructed of formed and fabricated brass and incorporates many scale operating
features. Although the model is very sturdily built, the boiler, tender shell and particularly the
detailing are very susceptible to damage by rough or careless handling. To prevent damage,
please exercise great care in unpacking and handling the model. The locomotive is best handled
by lifting under the front pilot beam and the rear cab deck. When touching the painted surfaces,
it is advisable to wear the supplied gloves to protect the finish.
This locomotive model is designed to operate on Direct Current (DC) electricity. Any applica-
tion of Alternating Current (AC) WILL DESTROY THE INTERNAL ELECTRONIC COM-
PONENTS OF THIS MODEL. Kohs & Company will not be responsible for damage caused
by the application of AC power to the model. We will offer further power supply specification
recommendations under the heading of 'Power Supply Requirements', please make note of the
information offered.
Before unpacking, handling or operating your new model PLEASE TAKE THE TIME TO
FULLY READ THIS MANUAL. This is a small investment in time to protect your substantial
financial investment and to prevent unnecessary disappointment and frustration.
Advertisement
Related Manuals for Kohs & Company Pennsylvania K-4 "Pacific"
Summary of Contents for Kohs & Company Pennsylvania K-4 "Pacific"
- Page 1 © 2006 Kohs & Company, Inc - Clarkston, Michigan 48348 Pennsylvania K-4 ‘Pacific’ OPERATION AND MAINTENANCE INSTRUCTIONS The Kohs & Company Pennsylvania K-4 locomotive is an exact scale replica of the original pro- totype. It is constructed of formed and fabricated brass and incorporates many scale operating features.
-
Page 2: Power Supply Requirements
PREPARING THE LOCOMOTIVE FOR OPERATION Although your K-4 was shipped ready to operate, a couple preventive maintenance precautions should be observed to ensure the smooth operation and longevity of the model. If losse fasteners are found on the packing materials please notify Kohs & Company immediately. First, make certain that all of the small fasteners used to assemble the running gear are snug and have not come loose during shipping. -
Page 3: Operating The Locomotive
Should you choose to use a less expensive power supply or one which does not meet the above criteria, undesirable operating characteristics may result as well as possible damage to the electronics used in the model. If you have questions regarding your selection, do not hesitate to contact us for advise. - Page 4 When 'track' power is applied to the locomotive and as soon as the drivers begin to turn, the chuffing of the cylinder exhausts will start synchronized to the position of the crank pins. In normal operation all lighting and reverse-gear functions will happen automatically, if you choose to issue a manual command, you will need to continue manual commands unless you issue a 'Auto Reset' command, all command and button combinations are listed below.
- Page 5 The photograph to the left shows the drawbar release hanging down under the operational buffer assembly. The prototypical double drawbar inserts into the two slots just above the release. The Photograph to the right shows the sound system battery connection in the tender coal bunker, it is critical to observe proper polarity as marked, the batteries should be placed in the bunker and cov-...
- Page 6 Shown above is the completed connection of the locomotive and tender, notice the vertical position of the electrical connectors with their wide dimension oriented from side to side. + - + - Power Out Power In Pictured above is the sound system control box, in the left view the terminals and markings are vis- ible, in the right view notice the 9V wall adapter transformer and connection location.
