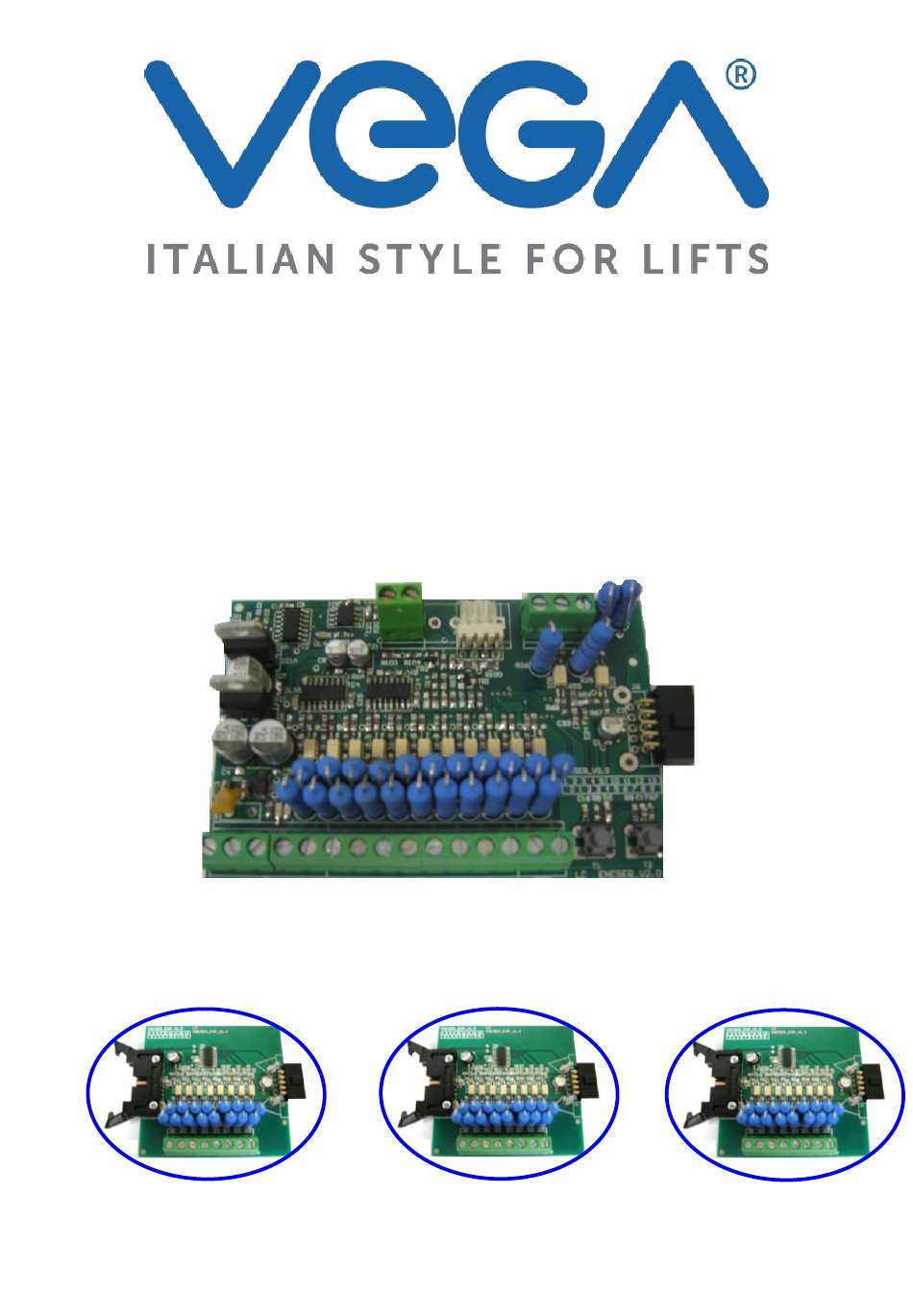

INDEX TECHNICAL DATA: ........................2 PINOUT ............................2 APPLICATION DRAWINGS: ....................... 3 MENU SUMMARY: .............. Errore. Il segnalibro non è definito. ENCSER_EXP ..........................8 DECLARATION OF CONFORMITY ........Errore. Il segnalibro non è definito.
Available inputs 9 (up to 33 with ENCSER_EXP expansion boards) ENCSER programming is made through T1 e T2, push buttons using a VEGA serial display. Allows to select; -the type of decoding (1 wire per floor, binary code, inverted binary code or gray code);...
Green Brown Yellow Power supply (-) White External serial clock Floor 1 Power supply (+) LCD601 SERCAR_LCD_03 Floor 0 Internal serial External serial USCITA ENCSER T1 T2 Inputs: -1 pole per floor; -Binary code; -Inverted binary code; -Bcd code; -Gray code.
Page 5
ENCSER application diagram with common anode: ENCSER T1 T2 12/120 12/24 Vac/dc Vac/dc CONTROL BOARD OUTPUTS ENCSER application diagram with common cathode: ENCSER T1 T2 12/120 12/24 Vac/dc Vac/dc CONTROL BOARD OUTPUTS...
Page 6
PROGRAMMING: It is necessary to connect a serial display (VEGA) for programming the ENCSER. There are two programming push buttons T1 (SELECT) and T2 (ENTER). T1 push button allows to choose a menu or change a parameter; T2 push button allow to confirm the choice/value.
Page 7
NOTE: The tables above refers to codes with -It is possible to set the offset (first floor) using menu 2: first floor set to “0” (MENU P2) OFF: Input disabled (switch open) Floor No. I1 ON: Input enabled (switch close) OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF...
Page 8
The programming procedure is completed and the data are stored. Menu 3: It allows to choose the number of expansion (ENCSER_EXP) connect. Press the T1 (SELECT) button 3 times. Display will visualize the string ”P3”; Press the T2 (ENTER) button to access to the programming menu. The digits visualize the current value.
The display will show “ME” to confirm the reset (default values). ENCSER_EXP In case the available inputs on the ENCSER (in 1 wire per floor working mode) should not be enough, it is possible to connect on the ENCSER board some (ENCSER_EXP) expansion boards...
Page 10
To enable the expanion board it is necessary to programme the menu P3 regarding the expansions board number. If the ENCSER use I7, I8 and I9 inputs as overload, gong and out of service signalling (menu 4=01) the expansion board inputs are shifted by 3 positions. The I1 input on the board will become I7 input.
