Summary of Contents for SALUPO MULTIPLUS 1 SA684 Series
Page 1

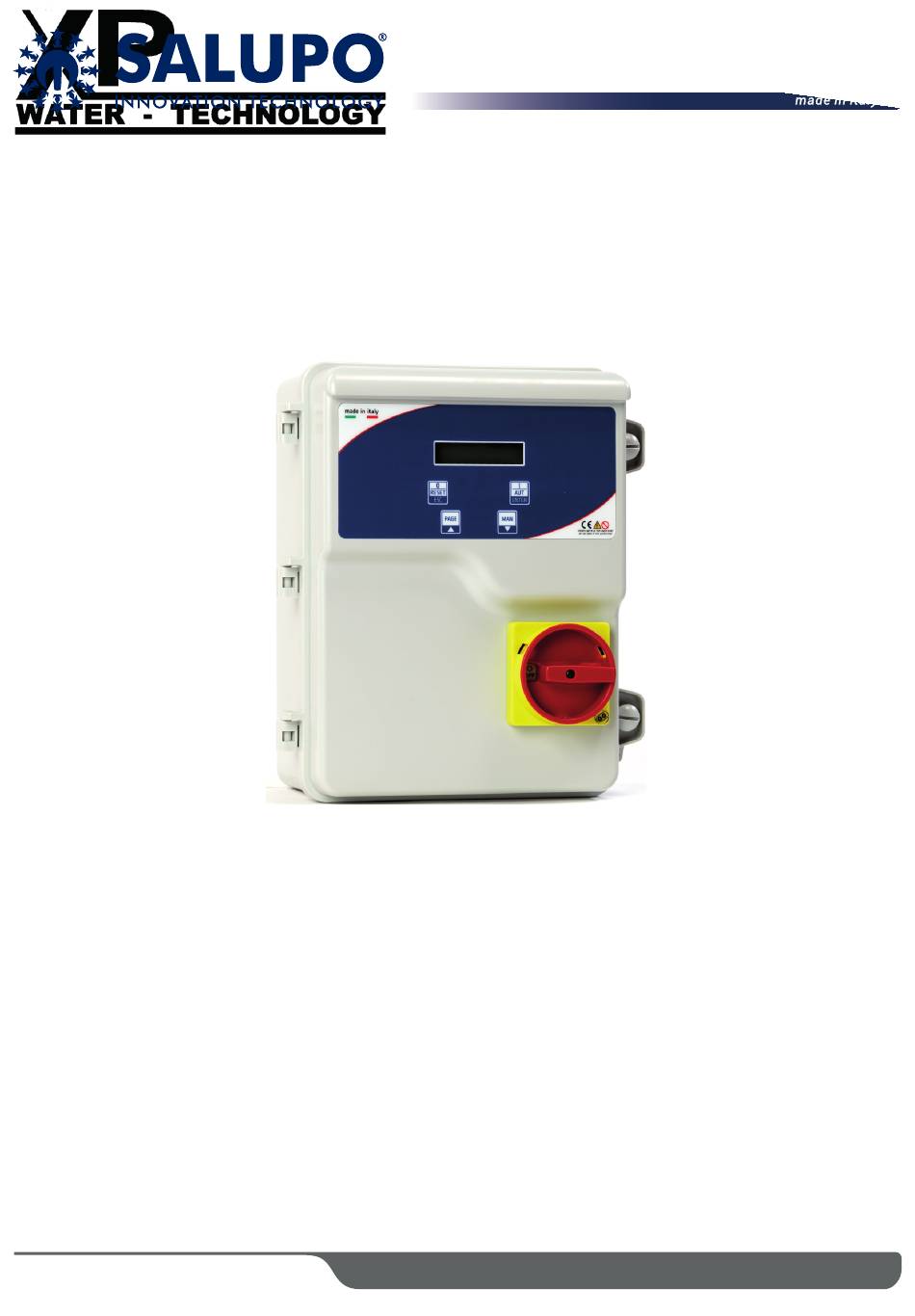

ITA/ENG rev.5 31/08/2021 rev.6 11/01/2023 MULTIPLUS 1 MULTIPLUS 1 SA684.xx / SA687.xx SA684.xx / SA687.xx INSTRUCTION AND INSTALLATION MANUAL MANUALE DI ISTRUZIONE E INSTALLAZIONE INSTRUCTION AND INSTALLATION MANUAL Direct starting electronic control panel 1 motor for clean water and sewage with display and general disconnecting switch with door lock.
Page 2
INDEX 1. General instructions for installing 2. Warnings 3. Application examples 4. Wiring diagrams 4.1 Wiring diagrams SA684.xx 4.2 Wiring diagrams SA687.xx 5. Programming 5.1 Fast programming 5.2 Application cosφ 5.3 Application clean water 5.4 Application sewage 5.5 Application 4-20mAbar 5.6 Application 4-20mA meters 5.7 Advanced programming 6.
Page 3
1. GENERAL INSTRUCTIONS FOR INSTALLING ENGLISH Make sure power supply is protected up to standard depending on application. The power of the motor has to be within the control panel's limits of use. Install the control panel in an environment appropriate to its IP65 degree of protection. To fix the enclosure, use the brackets for the boxes 03-04 and the special predispositions for the remaining boxes.
Page 4
3. APPLICATION EXAMPLES Below are some practical examples of applications that can be implemented with the MULTIPLUS 1 control panel. DRY RUNNING COSφ 1 INPUT 2 INPUTS START/ STOP CLEAN WATER 1 INPUT 1 INPUT 2 INPUTS START/ STOP ALARM START/ STOP G.MIN...
Page 5
3. APPLICATION EXAMPLES ENGLISH Below are some practical examples of applications that can be implemented with the MULTIPLUS 1 control panel. SEWAGE WHITE WATERS BLACK LIQUOR ALARM START ALARM STOP START STOP 4-20mA bar 4-20mA meters TRANSD. 4-20m A ALARM PIEZOR.
Page 6
4. WIRING DIAGRAMS 4.1 Wiring diagram SA684.xx EXPANSION BOARD CAPACITOR 3 4 5 6 7 8 9 10 12 13 14 15 16 G.MIN G.MAX1 G.MAX2 G.ALAR AVV. ANALOG PR.STA PR.EME MOTOR 1 4-20mA ALARM MOTOR LEVEL PROBES OR MINIMUM FLOAT SWITCH LEVEL PROBES OR MAX1 FLOAT SWITCH MAX2 FLOAT SWITCH OR START PRESSURE SWITCH POWER SUPPLY...
Page 7
ENGLISH 4. WIRING DIAGRAMS 4.2 Wiring diagram SA687.xx EXPANSION BOARD 3 4 5 6 7 8 9 10 12 13 14 15 16 G.MIN G.MAX1 G.MAX2 G.ALAR ANALOG PR.STA PR.EME MOT1 SUPPLY 4-20mA ALARM POWER SUPPLY 400 Vac 50/60 Hz MOTOR LEVEL PROBES OR MINIMUM FLOAT SWITCH LEVEL PROBES OR MAX1 FLOAT SWITCH...
Page 8
5. PROGRAMMING APPLICATION 5.1 Fast programming 4-20mA metri APPLICATION 4-20mA bar APPLICATION LANGUE FRANCAISE V3.0 SEWAGE IGNITION CONTROL PANEL APPLICATION LANGUAGE ENGLISH V3.0 CLEAN WATER LINGUA APPLICATION ITALIANO V3.0 COSFI LANGUAGE APPLICATION SETUP PRESS ENGLISH V3.0 COSFI PAG + MAN 10s PRESSING IT YOU WILL SEE THE REMAINING PART OF THE PARAMETERS THE MOTHERBOARD HAS THAT CAN BE SET ACCORDING TO THE APPLICATION CHOSEN:...
Page 9
5. PROGRAMMING ENGLISH 5.2 Application cosφ IT IS USED TO SET A FILLING WAITING TIME WHICH INTERVENES EVERY TIME THE MOTHERBOARD DETECTS A DRY RUNNING CONDITION RANGE 1min ÷ 99h 59min WAITING FILLING 0 h 30 min IT IS USED TO SET MANUALLY THE COSφ...
Page 10
5. PROGRAMMING 5.3 Application clean water IN 2 INPUTS MODE THE EXTERNAL COMMAND IS: OFF G.MIN AND G.MAX CLOSED (DISABLE MOTOR) ON G.MIN AND G.MAX OPEN (ENABLE MOTOR) EXTERNAL COMMAND 2 INPUTS IT IS USED TO SET IN 1 INPUT MODE THE MANUALLY THE PROBES EXTERNAL COMMAND IS: SENSITIVITY VALUE...
Page 11
5. PROGRAMMING ENGLISH 5.5 Application 4-20mA bar IT IS USED TO SET THE FULL IT IS USED TO SET THE DELAY SCALE OF THE TRANSDUCER FOR STARTING THE MOTOR WHEN USED THE SYSTEM PRESSURE DROPS BELOW THE TRANSDUCER START PRESSURE 25 bar IT IS USED TO SET THE RANGE 1min ÷...
Page 12
5. PROGRAMMING 5.6 Application 4-20mA meters IT IS USED TO SET THE WATER LEVEL IT IS USED TO SET THE WATER LEVEL IT IS USED TO SET THE FULL BELOW WHICH THE MOTHERBOARD ABOVE WHICH THE MOTHERBOARD SCALE OF THE PROBE USED TURNS OFF THE MOTOR STARTS THE MOTOR RANGE 1.0 ÷...
Page 13
5. PROGRAMMING ENGLISH 5.7 Advanced programming OFF EXCLUDES THE CONTROL ON THE MINIMUM CURRENT MINIMUM CURRENT IT IS USED TO SET THE RESET TIME ON THE MINIMUM CURRENT IT IS USED TO SET THE IT IS USED TO SET THE OVERLOAD MAXIMUM CURRENT MINIMUM CURRENT N.B.: ABSENT ON...
Page 14
5. PROGRAMMING STABLE STARTS THE MOTOR WITH IT IS USED TO SET THE A PULSE ON THE MAN BUTTON; DELAY ON THE ACTIVATION STOPS THE MOTOR WITH A PULSE IT IS USED TO SET THE OF THE ALARM OUTPUT ON THE RESET BUTTON MAINS SUPPLY WAITING RANGE 1 ÷...
Page 15
6. GENERAL FUNCTIONING OF THE CONTROL PANEL ENGLISH General functioning IGNITION CONTROL PANEL SETUP PREMI THIS SCREEN IS DISPLAYED ONLY IF THE MAINS SUPPLY WAITING FUNCTION IS ENABLED PAG + MAN 10s IN THE SETUP MENU. TO EXCLUDE THE WAITING TIME PRESS RESET MAINS WAIT.
Page 16
6. GENERAL FUNCTIONING OF THE CONTROL PANEL Application clean water IT IS USED TO START THE MOTOR MANUALLY 400 V 13.2 A ONLY IN STABLE MANUAL BUTTON MODE OFF: DISABLE MOTOR STOP MOTOR ON: ENABLE MOTOR 0.0 A THE FOLLOWING SCREEN DISPLAYS: - MEASURED VOLTAGE EXTERNAL COMMAND - ABSORBED CURRENT...
Page 17
6. GENERAL FUNCTIONING OF THE CONTROL PANEL ENGLISH 6.5 Application 4-20mA bar IT IS USED TO START THE MOTOR MANUALLY 400 V 13.2 A 4.5 bar ONLY IN STABLE MANUAL BUTTON MODE STOP MOTOR THE FOLLOWING SCREEN DISPLAYS: 0.0 A - MEASURED VOLTAGE - ABSORBED CURRENT - SYSTEM PRESSURE...
Page 18
7. MOTOR MAINTENANCE 7.1 Motor maintenance programming IT IS USED TO SET THE MOTOR MAINTENANCE RANGE 1÷ 99999h IGNITION MOT. MAINTENANCE CONTROL PANEL 500h MOT. MAINTENANCE OFF EXCLUDES THE MOTOR MAINTENANCE MOT. MAINTENANCE SETUP PRESS PAGE + MAN 10s THIS SCREEN DISPLAYS THE MAINTENANCE TIME RESET LAST MOTOR MAINTENAN.
Page 19
8. DATA LOGGER ENGLISH 8.1 Alarm data logger The alarm data logger is used to display the last 20 stored alarms in descending order. The motherboard together with the alarm also records the motor operating hours in which it was generated.
Page 20
9. TROUBLESHOOTING AND PROPOSED SOLUTIONS FREQUENT PROBLEMS CAUSES OPERATION Feed the control panel respecting o supply the input voltage Display off Switch set on 0 Set the switch on 1 Connect the flat cable from the motherboard The flat cable inside the control panel to the display is not connected Set manually the maximum current the 25%...
Page 21
ENGLISH 10. ALARM MESSAGES DATA SCREEN DESCRIPTION LOGGER MAXIMUM CURRENT If the current absorbed by the motor exceeds that adjusted in the setup, motherboard will turn off the motor and the display will show the following PREMI RESET message. If the current absorbed by the motor is lower than the current set in the setup, MINIMUM CURRENT the motherboard will turn off the motor and the display will show the following PRESS RESET...
Page 22
12. DICHIARAZIONE DI CONFORMITA’ CE E UK DECLARATION OF CONFORMITY CE AND UK Manufacturer Fabbricante / SALUPO S.r.l. C/da Pietra di Roma – Via Vicolo VI, n°2 98070 Torrenova (ME) ITALY Dichiara sotto la propria responsabilità che i prodotti: Declares under own responsibility that the product:...
Page 23
Dear customer, Salupo S.r.l. would like to thank you for your preference. The product you have purchased is covered by the warranty as shown below. We guarantee the quality and smooth operation of our products up to 24 months, starting from the date of purchase, against manufacturing defects and except for the following items for which we guarantee up to 12 months: SQ702.xx;...
