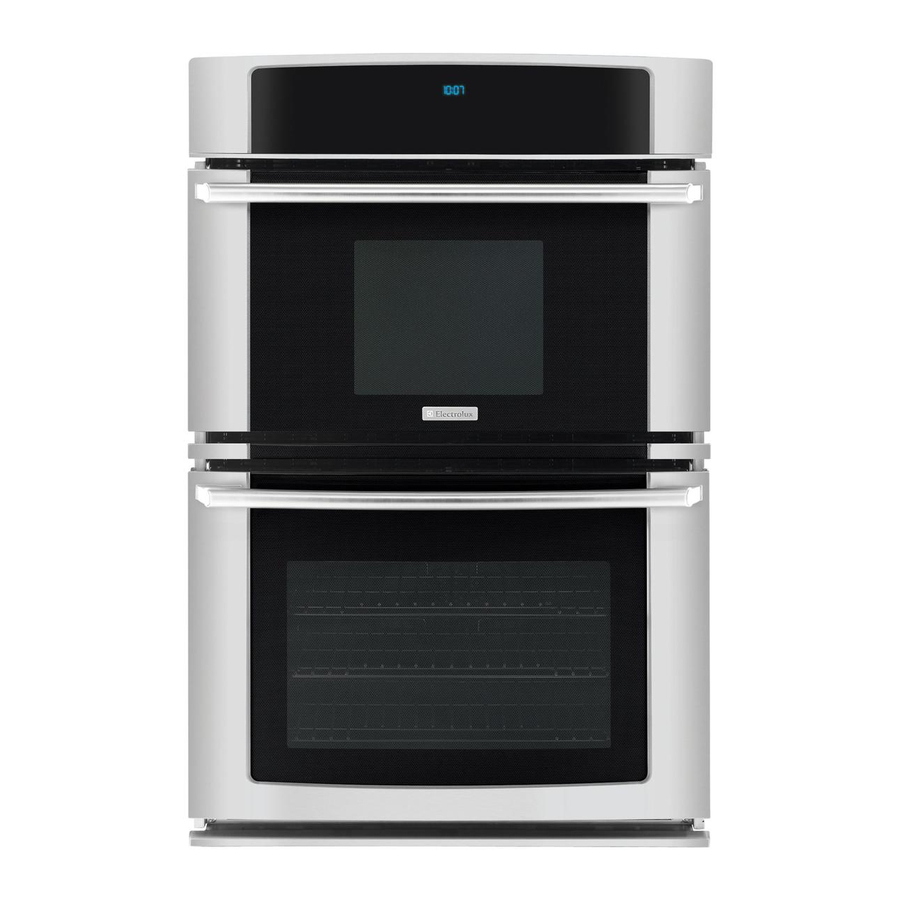

Electrolux EW27MC65JS Installation Instructions Manual

MICROWAVE/ WALL OVEN COMBINATION
United States
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
flammable vapors and liquids in the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing easier.
The first step of your installation should be to measure your current cutout dimensions and compare them to the
cutout dimensions chart below for your model. You may find little or no cabinet work being necessary.
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in
oven. These spacers center the oven in the space provided. The oven must be centered to prevent excess
heat buildup that may result in heat damage or fire.
* Suggested distance from floor is 11½" (29.2 cm).
Minimum required distance is 4 ½" (11.4 cm).
Door Open
(see note 2)
NOTES:
1. Base must be capable of supporting 275 pounds (125 kg)
for 27" models and 350 pounds (159 kg) for 30" models.
2. Allow at least 21" (53.3 cm) clearance in front of oven
for door depth when it is open.
3. Dimension G (cutout depth) is critical to the proper
installation of the built-in oven. If the oven decorative
trim does not butt against the cabinet, or if noise is heard
on convection models, verify dimension G to assure it is
according to the required dimension.
MODEL
27" (68.6 cm) Wall Oven
30" (76.2 cm) Wall Oven
MODEL
27" (68.6 cm) Wall Oven 25
30" (76.2 cm) Wall Oven 28½ (72.4)
All dimensions are in inches (cm).
Printed in United States
INSTALLATION INSTRUCTIONS
FOR YOUR SAFETY: Do not store or use gasoline or other
2" (5 cm) Wide Wood Spacer
if Needed (see note 4)
PRODUCT DIMENSIONS
A
27 (68.6) 45
30 (76.2) 45
CUTOUT DIMENSIONS AND CABINET WIDTH
F
Min. Max.
5 / (65.1) 25 7 / (65.7) 23½ (59.7)
8 8
29 (73.7) 23½ (59.7)
Hole for
Cable
*
Spacer
**4. For a cutout height (H) between 44" (111.8cm)
and 44 5 / " (113.3 cm) add a 2" (5 cm) wide wood
8
shim of appropriate height to each side of the
opening under the appliance side rails. Lifting the
unit will allow you to hide the cutout openings
showing above the unit. The bottom trim of the unit
will hide the shims at the bottom.
**5. For a cutout height (H) between 44
and 46 / " (117.8 cm) you can order a larger bottom
3
8
trim through your Service Center.
B
/ (114.9)
1
4
1 / (114.9)
4
G (Min.)
H. Standard Height
(**Others, see notes 4 & 5)
Min.
43 7 / (111.3)
8
43 / (111.3)
7
8
1
Electrical
Junction Box
Figure 1
5
C
24 / (62.5)
5
8
28¼ (71.8)
.
Max
44 (111.8) 27
44 (111.8) 30
P/N 318201539 (1007) Rev. D
Canada
/ " (113.3 cm)
8
D
24½ (62.2)
24½ (62.2)
I
1 / (68.9) Min
8
/ (76.5) Min
1
8
English – pages 1-6
Français -pages 6-12
