Xaoc Devices OSTANKINO Operator's Manual page 5

connecting
the expander
to another Moskwa II
chaining connector

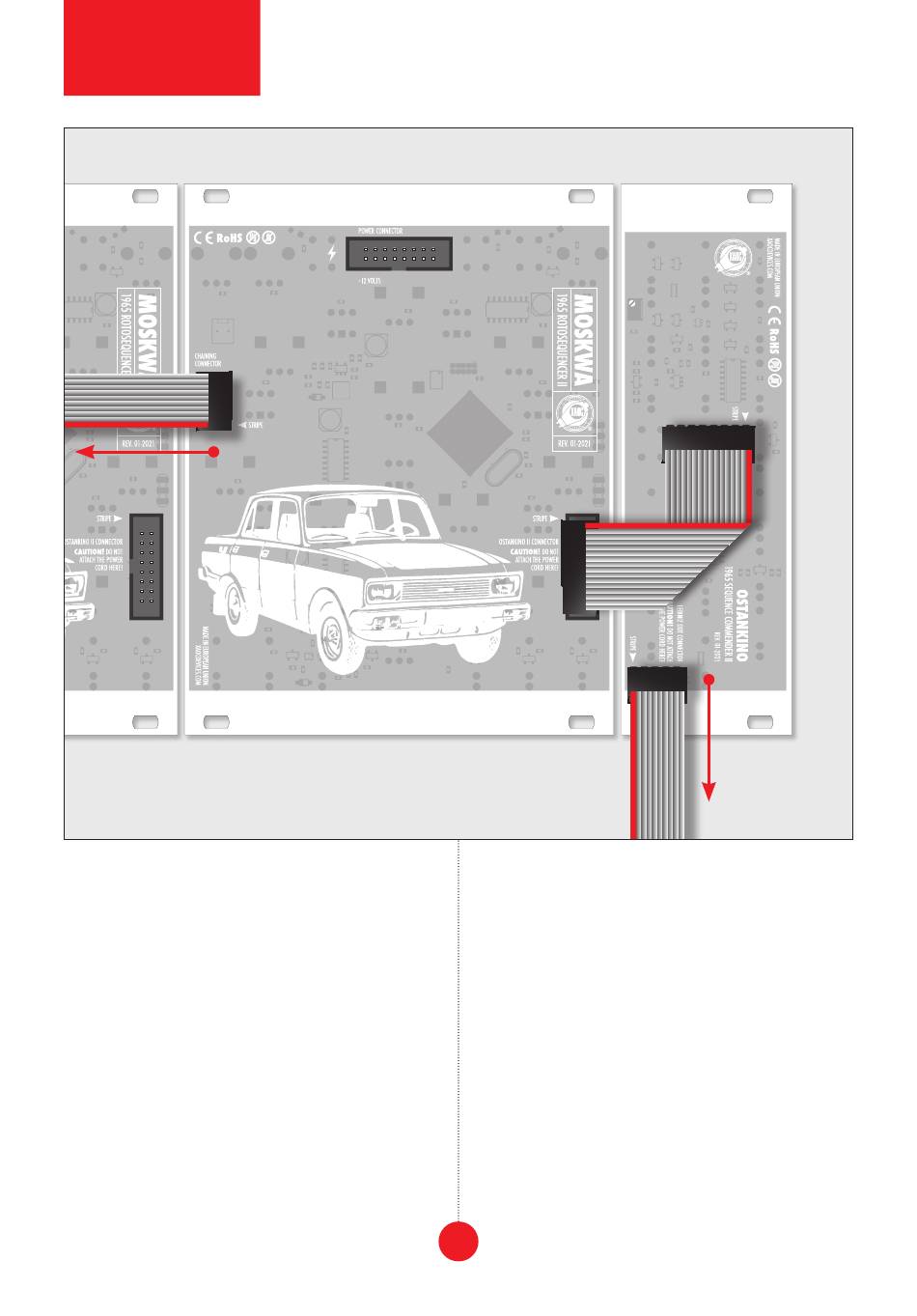

fig. 2: connecting the ostankino ii to moskwa ii and drezno
With the switch set to the bit out position,
each Ostankino II bit output (both on the
panel and the Leibniz connector) sends a dig-
ital value (on/off) of the bit corresponding to
the CV set for the currently active sequence
step. Starting with the least significant bit
at output 1 (bit 0) and ending with the most
significant bit at output 8 (bit 7). The values
present at the outputs change when the se-
quence is advanced to the next step to reflect
the currently active sequence step. The bit
output mode is especially suitable for use
with the Xaoc Devices Leibniz Binary Subsys-
tem, but it will work with any module accept-
ing voltages in the range 0-5V.
ACCESSORY
Our Coal Mine black panels are available for
all of Xaoc Devices modules. Sold separately.
Ask your favorite retailer. •
